Amplifier Antenna: Components

Fig 1: Exploded View Of Amplifier Antenna Components (1 Of 6)
G04092811Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Exploded View Of Amplifier Antenna With Torque Specifications (2 Of 6)
G04092812Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Exploded View Of Amplifier Antenna Components With Torque Specifications (3 Of 6)
G04092813Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 4: Exploded View Of Amplifier Antenna With Torque Specifications (4 Of 6)
G04092814Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 5: Exploded View Of Amplifier Antenna With Torque Specifications (5 Of 6)
G04092815Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

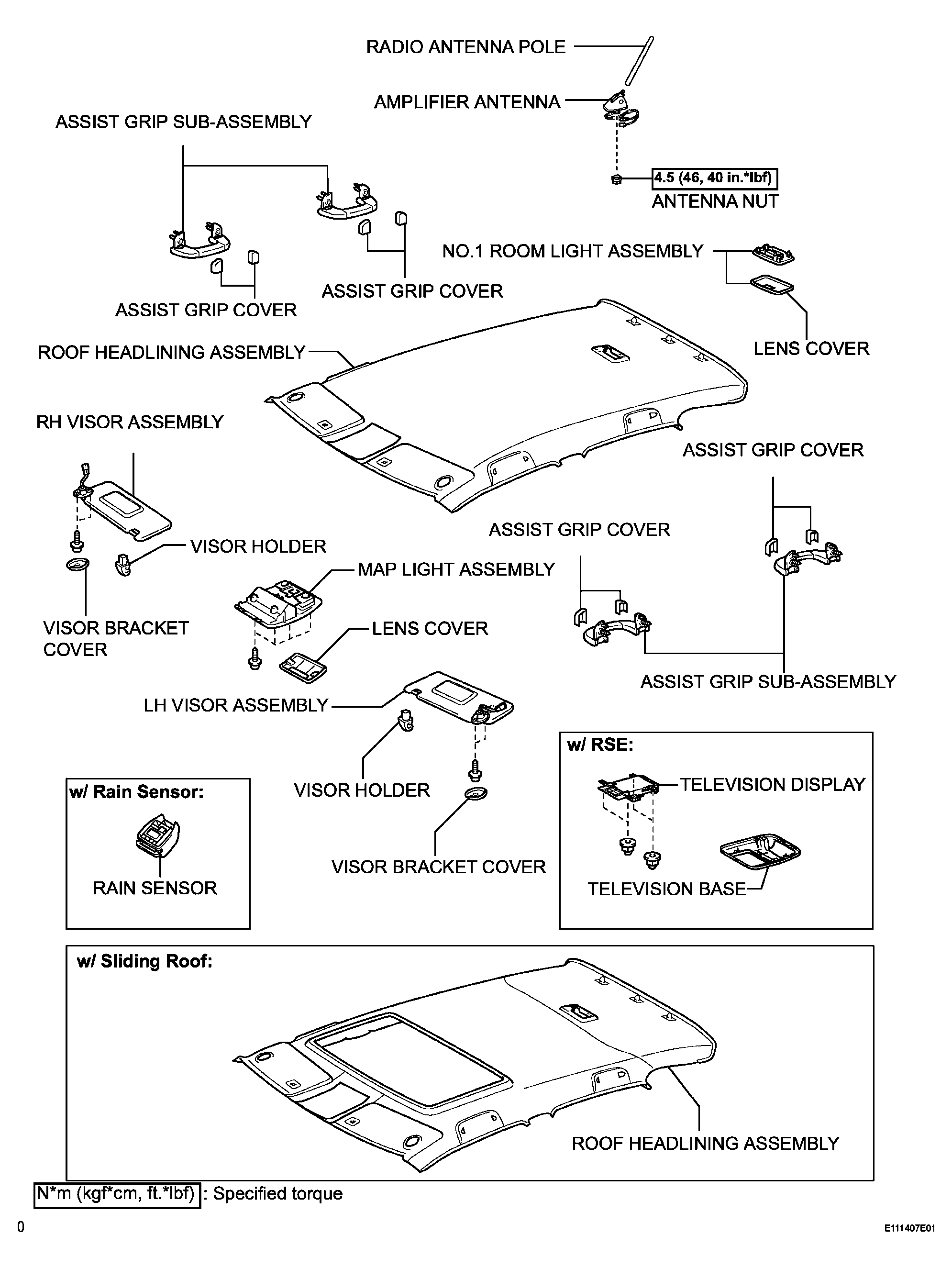

Fig 6: Exploded View Of Amplifier Antenna With Torque Specifications (6 Of 6)
G04092816Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
