Valve Body Assembly: Installation

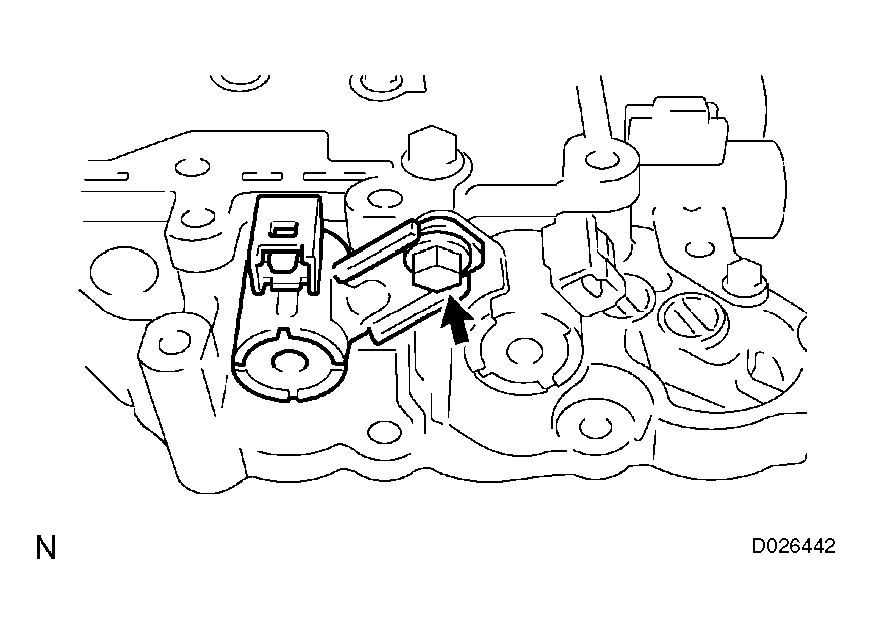

1. Install the shift solenoid valve SL1 to the valve body assembly with the bolt.

   Torque: 6.6 N*m (67 kgf*cm, 58 in.*lbf)

   Fig 1: Installing Shift Solenoid Valve SL1 To Valve Body Assembly With Bolt

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the shift solenoid valve SL2 to the valve body assembly with the bolt.

   Torque: 11 N*m (110 kgf*cm, 8 ft.*lbf)

   Fig 2: Installing Shift Solenoid Valve SL2 To Valve Body Assembly With Bolt

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Install the shift solenoid valve DSL to the valve body assembly with the bolt.

   Torque: 11 N*m (110 kgf*cm, 8 ft.*lbf)

   Fig 3: Installing Shift Solenoid Valve DSL To Valve Body Assembly With Bolt

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Install the shift solenoid valve SR to the valve body assembly.
   Fig 4: Installing Shift Solenoid Valve SR To Valve Body Assembly

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Install the shift solenoid valve S4 to the valve body assembly with the bolt.

   Torque: 11 N*m (110 kgf*cm, 8 ft.*lbf)

   Fig 5: Installing Shift Solenoid Valve S4 To Valve Body Assembly With Bolt

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. Install the shift solenoid valve SL3 and SLT to the valve body assembly.
7. Install the lock plate to the valve body assembly with the bolt.

   Torque: 6.6 N*m (67 kgf*cm, 58 in.*lbf)

   Fig 6: Installing Lock Plate To Valve Body Assembly With Bolt

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

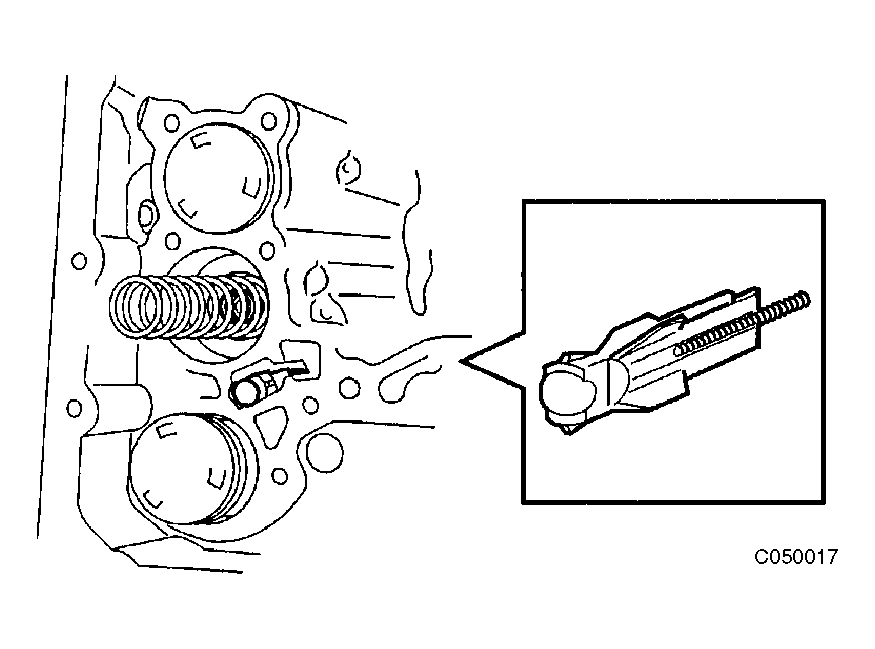

8. Install the spring and check ball body.
   Fig 7: Installing Spring And Check Ball Body

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
9. Align the groove of the manual valve with the pin of the lever.

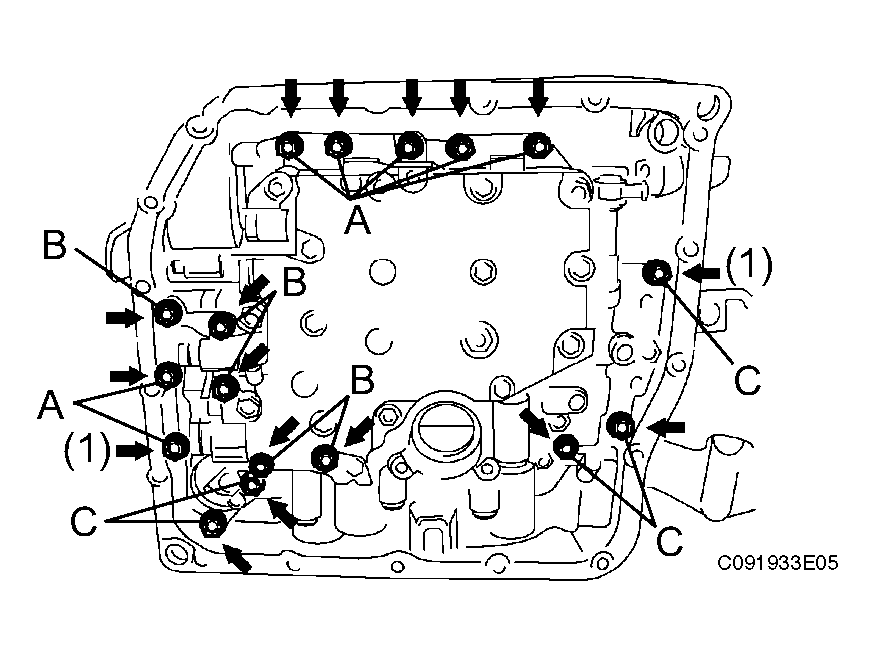

10. Install the 17 bolts.

    Torque: 11 N*m (110 kgf*cm, 8 ft.*lbf)

    NOTE:

    • Push the valve body against the accumulator piston springs and check ball body to install the valve body.
    • First, temporarily tighten the bolts marked with (1) in the illustration because they are positioning bolts.

    Bolt length:

    Bolt A: 41 mm (1.614 in.)

    Bolt B: 57 mm (2.244 in.)

    Bolt C: 25 mm (0.984 in.)

Fig 8: Installing Transmission Valve Body Assembly Bolts

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Coat a new O-ring with ATF.
2. Install the O-ring to the oil strainer.
   Fig 9: Installing O-Ring To Oil Strainer

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Install the oil strainer with the 3 bolts.

   Torque: 11 N*m (110 kgf*cm, 8 ft.*lbf)

Fig 10: View Of Oil Strainer And Bolts

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Coat the O-ring with ATF.

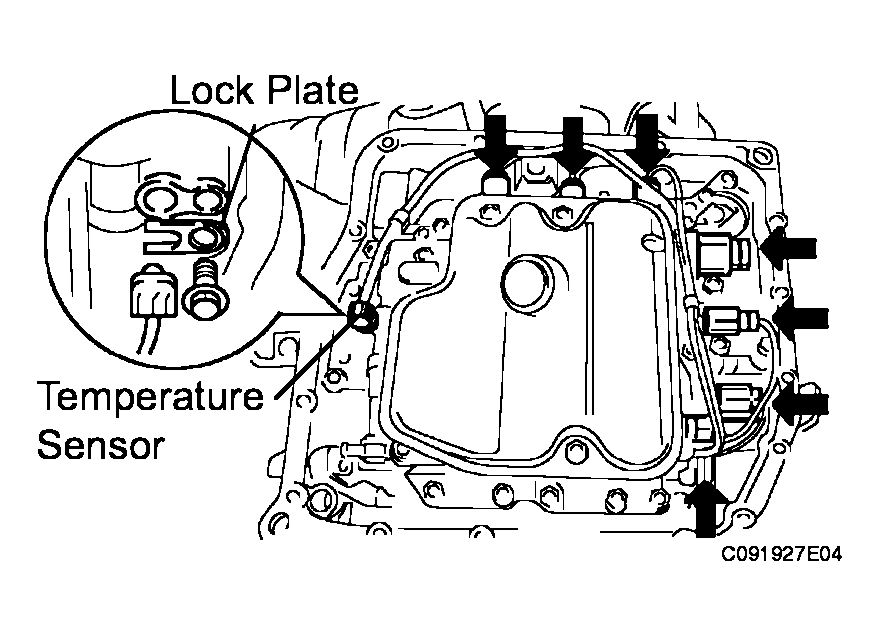

2. Install the ATF temperature sensor with the lock plate and bolt.

   Torque: 6.6 N*m (67 kgf*cm, 58 in.*lbf)

3. Connect the 7 shift solenoid valve connectors.

Fig 11: Locating ATF Temperature Sensor And Solenoids

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install the 2 magnets in the oil pan.
   Fig 12: Identifying Magnets

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Apply seal packing or equivalent to the 18 bolts.

   Seal packing:

   THREE BOND 2430 or equivalent

3. Install the oil pan and new gasket with the 18 bolts to the transaxle case.

   Torque: 7.8 N*m (80 kgf*cm, 69 in.*lbf)

   NOTE: Tighten the bolts within 10 minutes of sealant application.

Fig 13: Identifying Oil Pan Bolts

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. w/ Engine under cover No. 2: Install the engine under cover No. 2.

1. w/ Engine under cover assembly: Install the engine under cover assembly.

HINT:

(See PRECAUTION  )

HINT:

Some systems need initialization after reconnecting the cable to the negative battery terminal (See PRECAUTION  ).
