Home >> Lexus >> 2006 >> RX 330 AWD >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transmission (U151F) >> Speed Sensor >> Components

Speed Sensor: Components

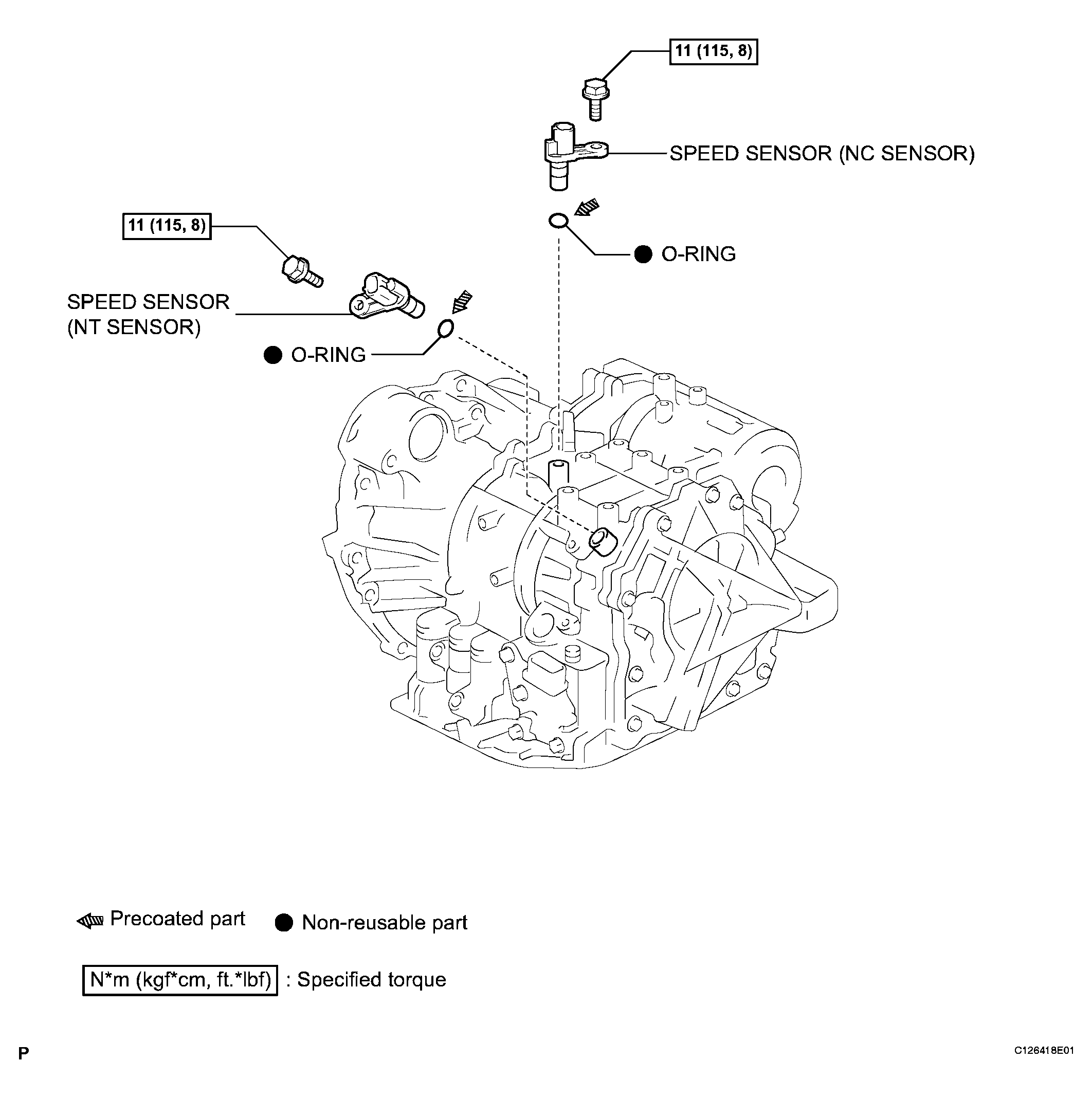

Fig 1: Speed Sensor Replacement Components With Torque Specifications

G04089116

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
