Shift Lever: Reassembly

INSTALL INDICATOR LIGHT WIRE SUB-ASSEMBLY
1. Shift lever with multi-mode automatic transmission:
  1. Connect the 2 terminals of indicator light wire harness to the connector of transmission control switch.
  2. Install the connector to the shift lever assembly.
  Fig 1: Connecting Terminals To Transmission Control Switch
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Gate shift lever:
  1. Install the connector to the shift lever assembly.
Fig 2: Installing Connector To Shift Lever Assembly
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

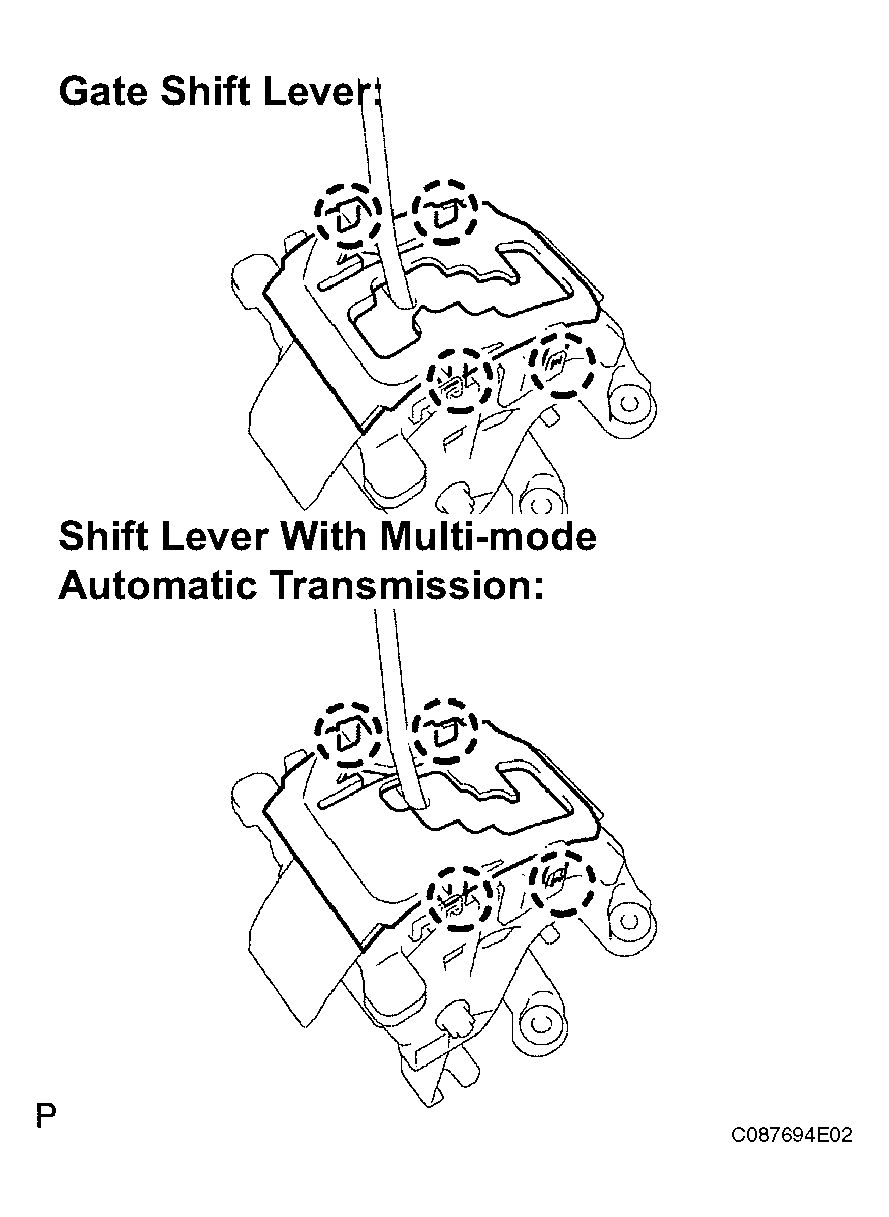

INSTALL POSITION INDICATOR HOUSING LOWER
1. Install the position indicator housing lower to the shift lock control unit.
  HINT:

  Engage the claws securely.
Fig 3: Installing Position Indicator Housing Lower
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL POSITION INDICATOR SLIDE COVER
1. Install the position indicator slide cover No. 2 to the position indicator slide cover.
Fig 4: Installing Position Indicator Slide Cover To Position Indicator Slide Cover
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL POSITION INDICATOR SLIDE COVER
1. Install the position indicator slide cover to the position indicator housing lower.
  NOTE: Install the position indicator slide cover No. 2 with the boss facing the rear of the vehicle.
Fig 5: Installing Position Indicator Slide Cover To Position Indicator Housing Lower
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL POSITION INDICATOR LIGHT GUIDE
1. Install the position indicator light guide to the position indicator housing lower.
  HINT:

  Engage the claws securely.

  Fig 6: Installing Position Indicator Light Guide To Position Indicator Housing Lower
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

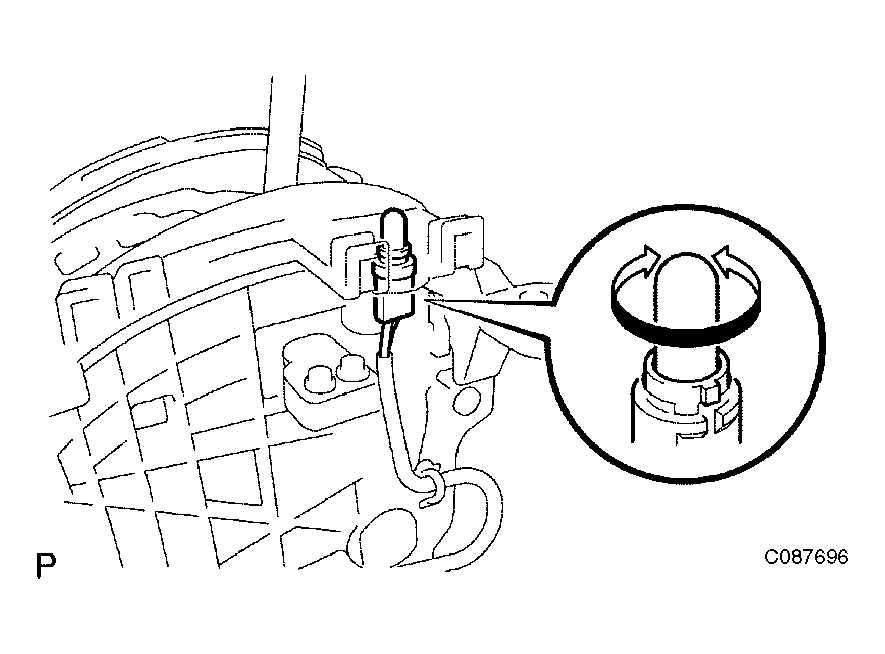

2. Install the indicator light wire sub-assembly to the shift lever assembly.
Fig 7: Installing Indicator Light Wire Sub-Assembly To Shift Lever Assembly
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

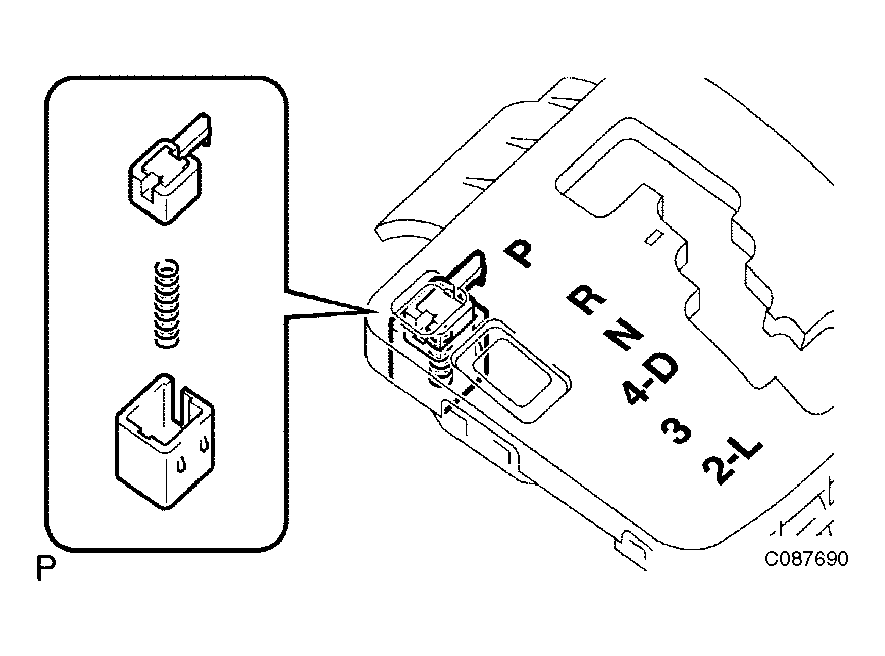

INSTALL SHIFT LOCK RELEASE LINK NO. 1
1. Apply MP grease to the shift lock release link and spring.
2. Install the shift lock release link, spring and cover.
Fig 8: Installing Shift Lock Release Link, Spring And Cover
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL PATTERN SELECT SWITCH ASSEMBLY NO. 1
1. Install the pattern select switch assembly No. 1 to the position indicator housing.
Fig 9: Installing Pattern Select Switch Assembly To Position Indicator Housing
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL SHIFT LEVER CAP
1. Install the shift lever cap to the position indicator housing.
Fig 10: Installing Shift Lever Cap To Position Indicator Housing
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

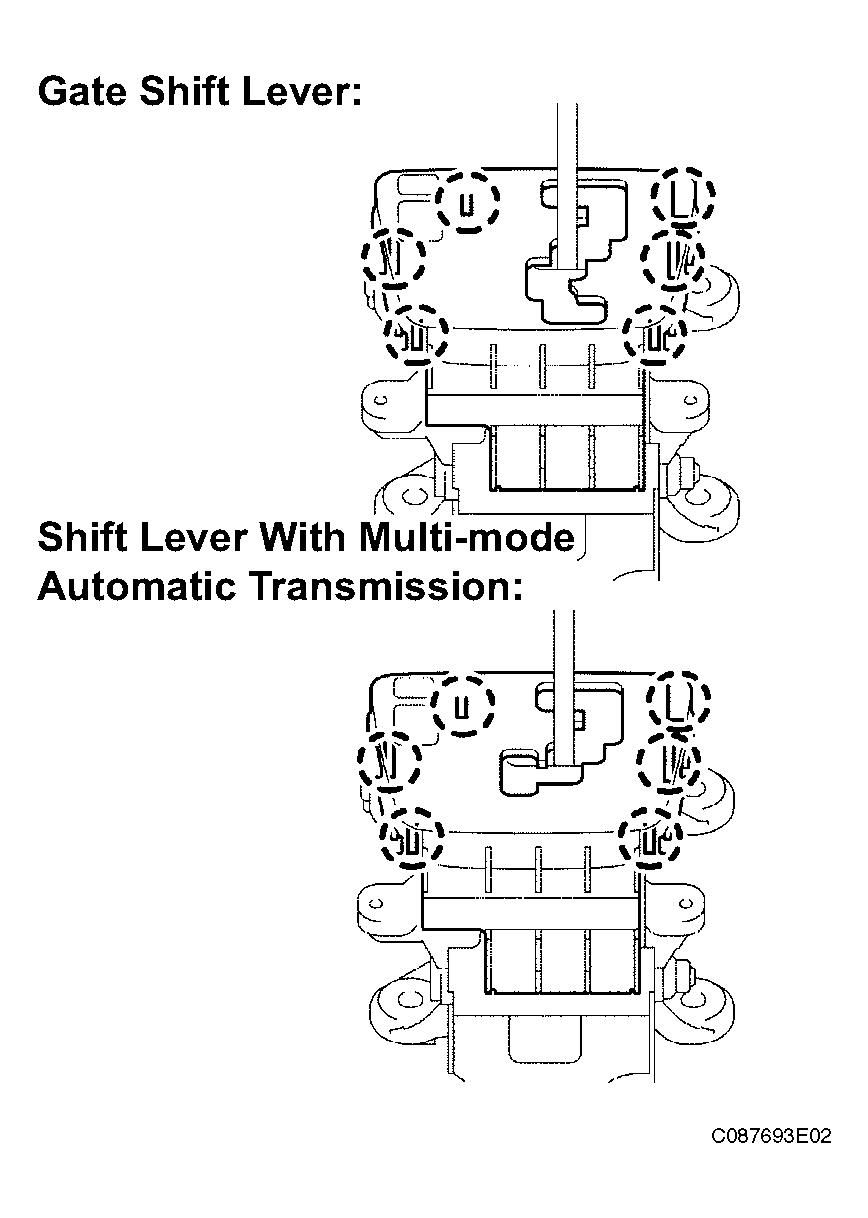

INSTALL POSITION INDICATOR HOUSING
1. Install the position indicator housing to the shift lever assembly.
  HINT:

  Engage the claws securely.
Fig 11: Installing Position Indicator Housing To Shift Lever Assembly
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
