Shift Lever: Installation

1. Install the shift lever assembly with the 4 nuts.

   Torque: 12 N*m (122 kgf*cm, 9 ft.*lbf)

   HINT:

   Tighten them in the order, A, B, C and D.

   NOTE: Be careful not to put the wirings of the indicator light or the shift lock system between the floor shift assembly and the floor while installing the floor shift assembly.

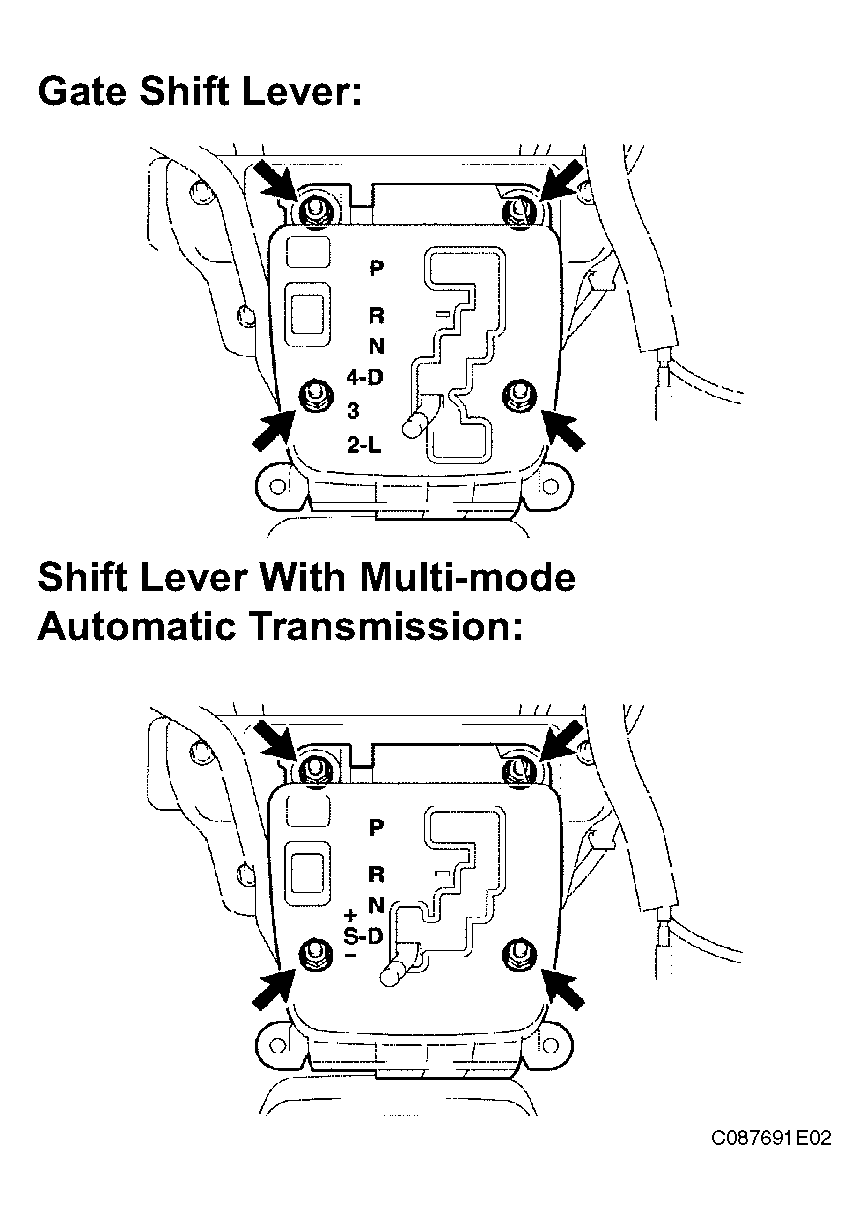

   Fig 1: Installing Shift Lever Assembly With Nuts

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

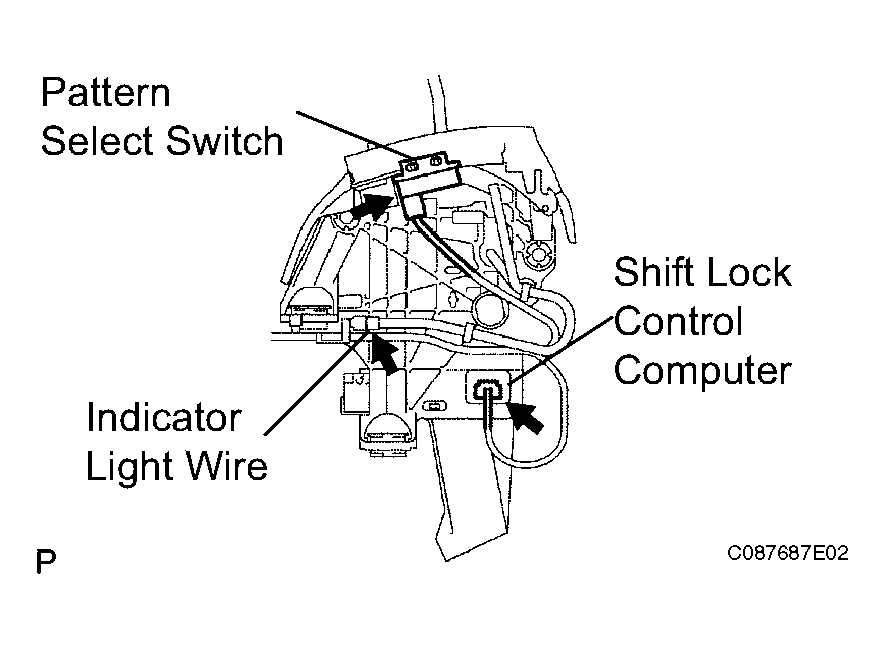

2. Install the pattern select switch connector, the shift lock control computer connector and the indicator light wire connector.

Fig 2: Installing Pattern Select Switch Connector

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

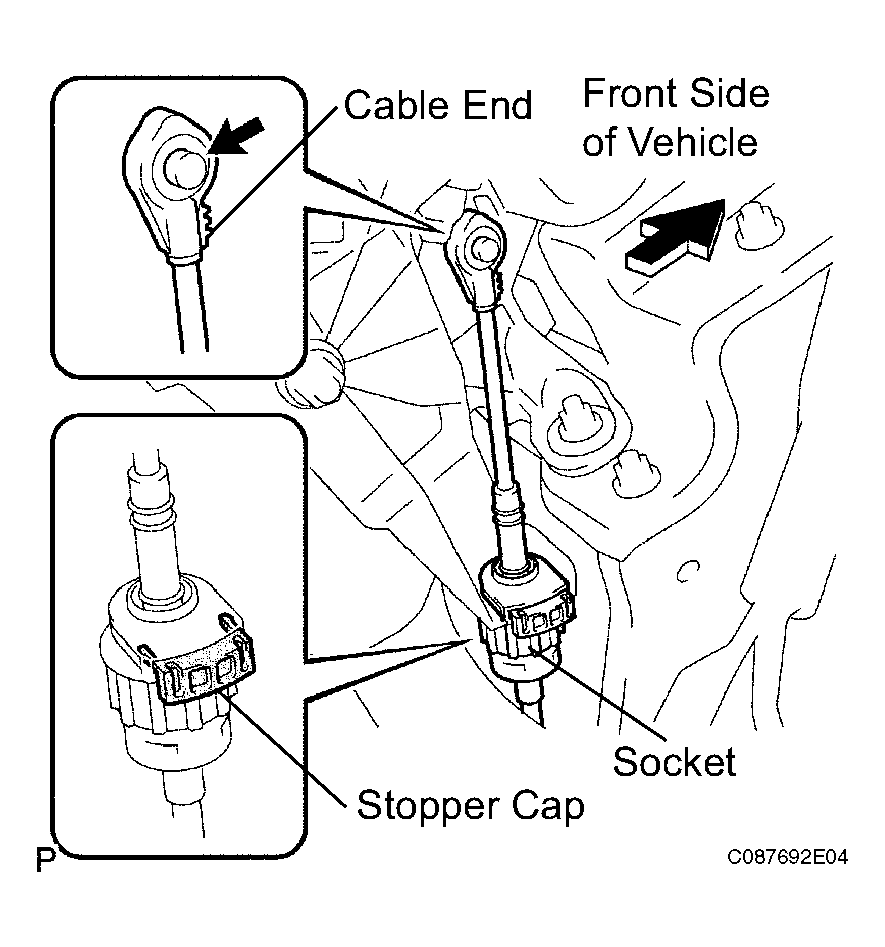

1. Connect the socket of the transmission control cable assembly to the shift lever assembly.
2. Connect the control cable end to the shift lever assembly.
3. Push the stopper cap to the socket as shown in the illustration.
4. Turn the socket of the transmission control cable assembly clockwise and install the stopper cap.
   NOTE:

   • To prevent torsion of the inner cable, the end with the eye should face up.
   • Push the cable end to the bottom of the pin.
   • Confirm that the connection between the socket and the shift rock control unit is fixed.
   Fig 3: Installing Shift Lever Knob Sub-Assembly
   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install the shift lever knob sub-assembly.
