Shift Lever: Disassembly

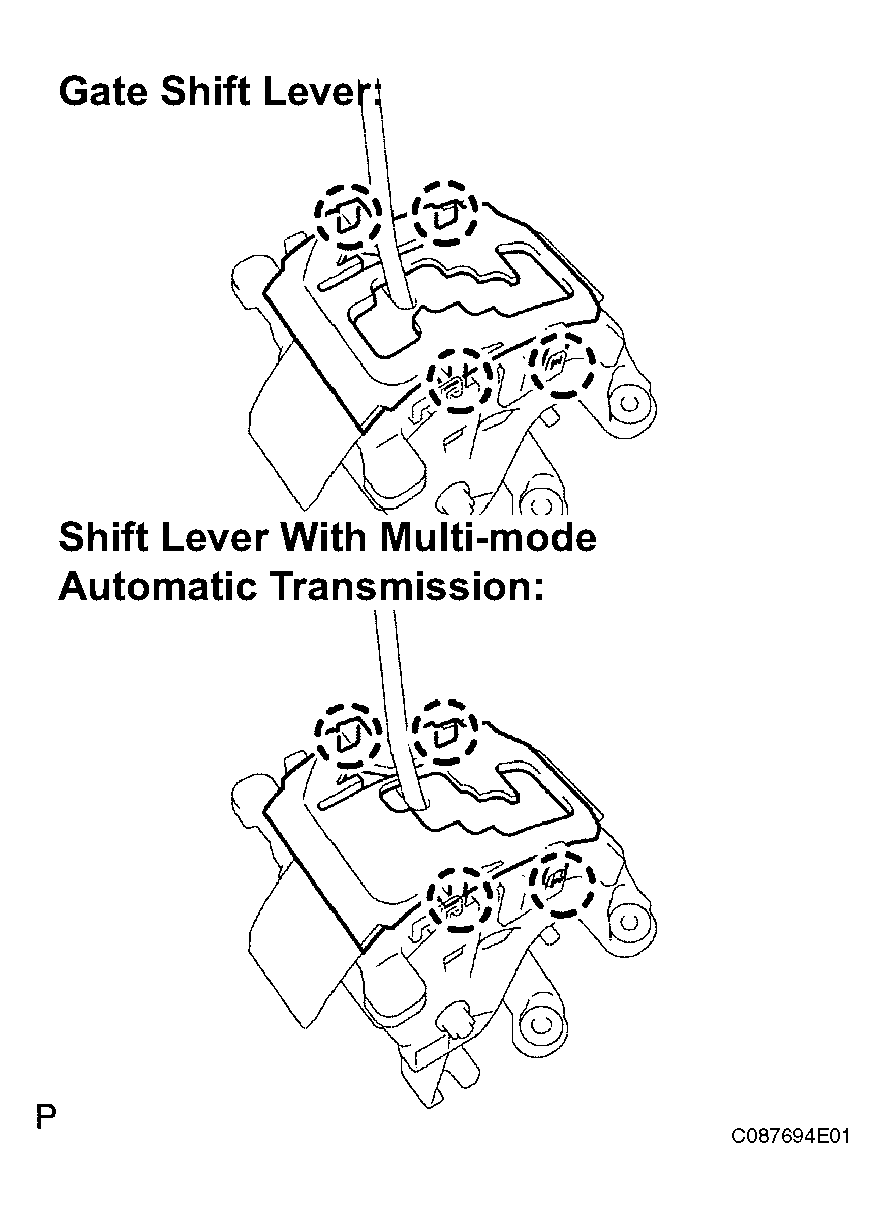

REMOVE POSITION INDICATOR HOUSING
1. Using a screwdriver, remove the position indicator housing from the shift lever assembly.
Fig 1: Removing Position Indicator Housing From Shift Lever Assembly
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

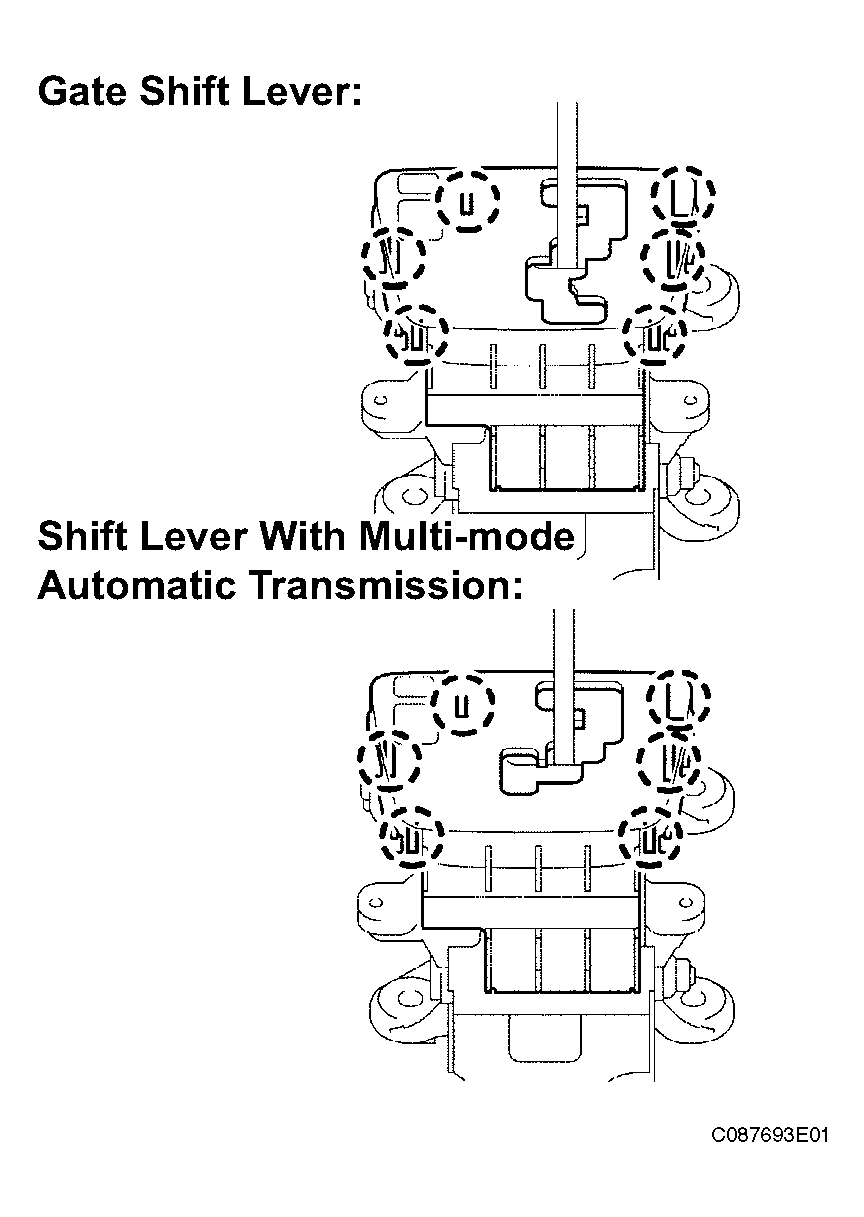

REMOVE SHIFT LEVER CAP
1. Using a screwdriver, remove the shift lever cap from the position indicator housing.
Fig 2: Removing Shift Lever Cap From Position Indicator Housing
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE PATTERN SELECT SWITCH ASSEMBLY NO. 1
1. Remove the pattern select switch assembly No. 1 from the position indicator housing.
Fig 3: Removing Pattern Select Switch Assembly
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

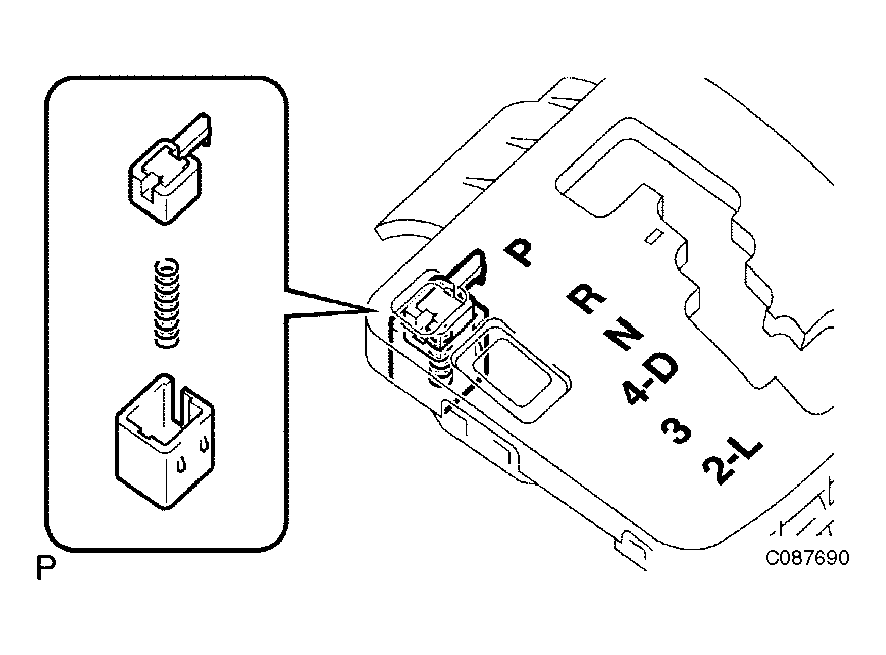

REMOVE SHIFT LOCK RELEASE LINK NO. 1
1. Remove the shift lock release link, spring and cover from the position indicator housing.
Fig 4: Removing Shift Lock Release Link, Spring And Cover From Position Indicator Housing
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE POSITION INDICATOR LIGHT GUIDE

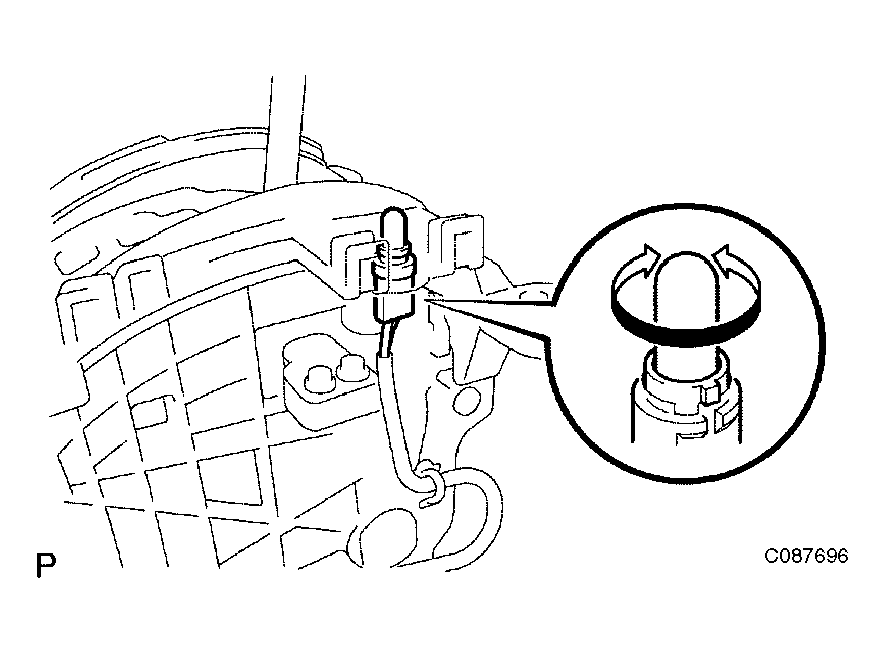

1. Remove the indicator light wire sub-assembly from the shift lever assembly.

  Fig 5: Removing Indicator Light Wire Sub-Assembly From Shift Lever Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Using a screwdriver, remove the position indicator light guide from the shift lever assembly.
Fig 6: Removing Position Indicator Light Guide From Shift Lever Assembly
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE POSITION INDICATOR SLIDE COVER
1. Remove the position indicator slide cover from the position indicator housing lower.
Fig 7: Removing Position Indicator Slide Cover From Position Indicator Housing Lower
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE POSITION INDICATOR SLIDE COVER
1. Remove the position indicator slide cover No. 2 from the position indicator slide cover.
Fig 8: Removing Position Indicator Slide Cover From Position Indicator Slide Cover
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE POSITION INDICATOR HOUSING LOWER
1. Remove the position indicator housing lower from the shift lock control unit.
Fig 9: Removing Position Indicator Housing Lower From Shift Lock Control Unit
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE INDICATOR LIGHT WIRE SUB-ASSEMBLY
1. Gate shift lever:
  1. Remove the connector from the shift lever assembly.
  Fig 10: Removing Connector From Shift Lever Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Shift lever with multi-mode automatic transmission:
  1. Remove the connector from the shift lever assembly.
  2. Using a screwdriver, release the stopper of the connector.
  3. Using a screwdriver, disengage the locking lug of terminals (1) and (6), and pull the terminals out from the rear.
Fig 11: Identifying Multi-Mode Automatic Transmission Connector
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
