Park / Neutral Position Switch: Components

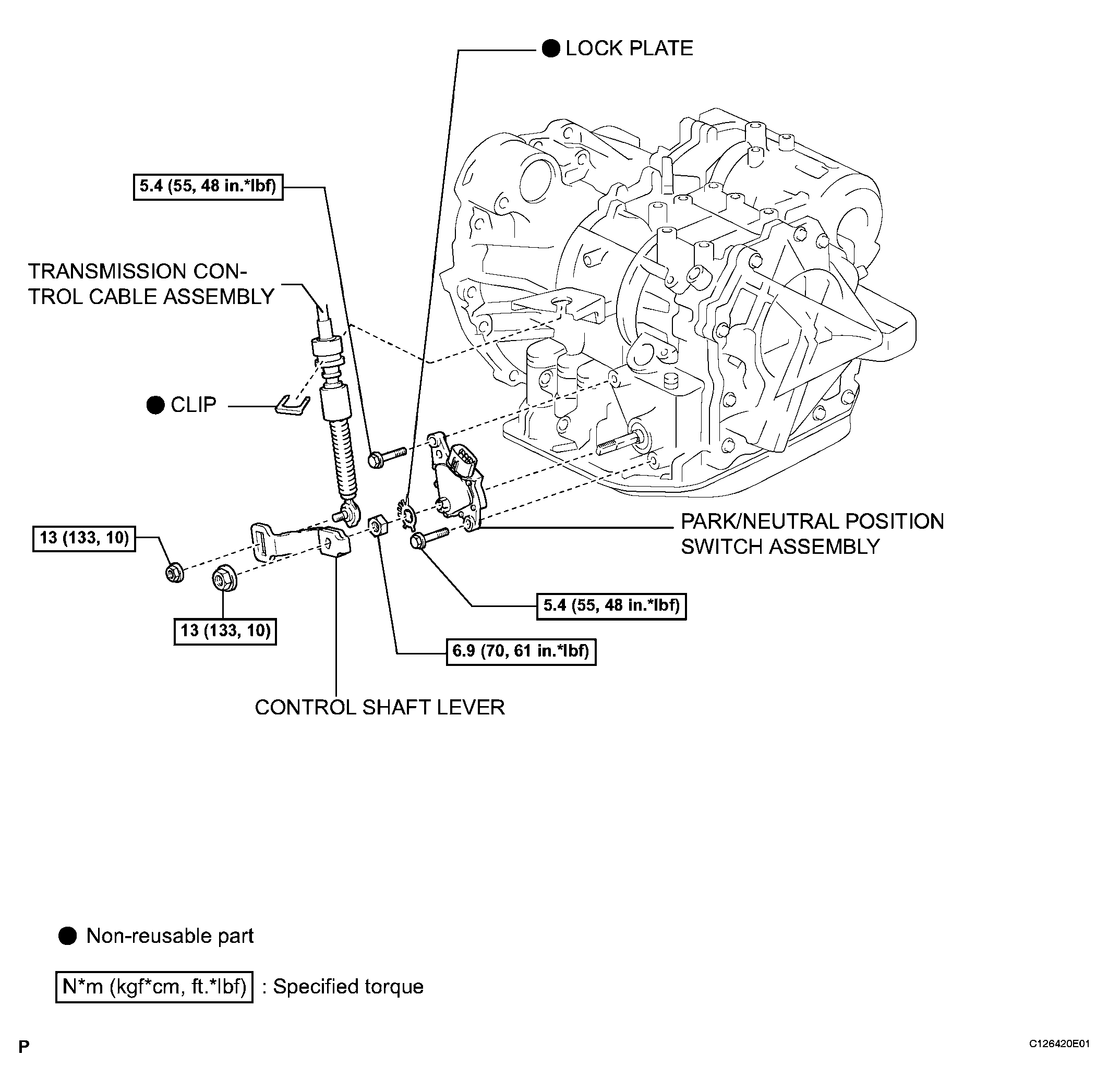

Fig 1: Park/Neutral Position Switch Replacement Components With Torque Specifications

G04089123

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
