Forward Clutch: Components

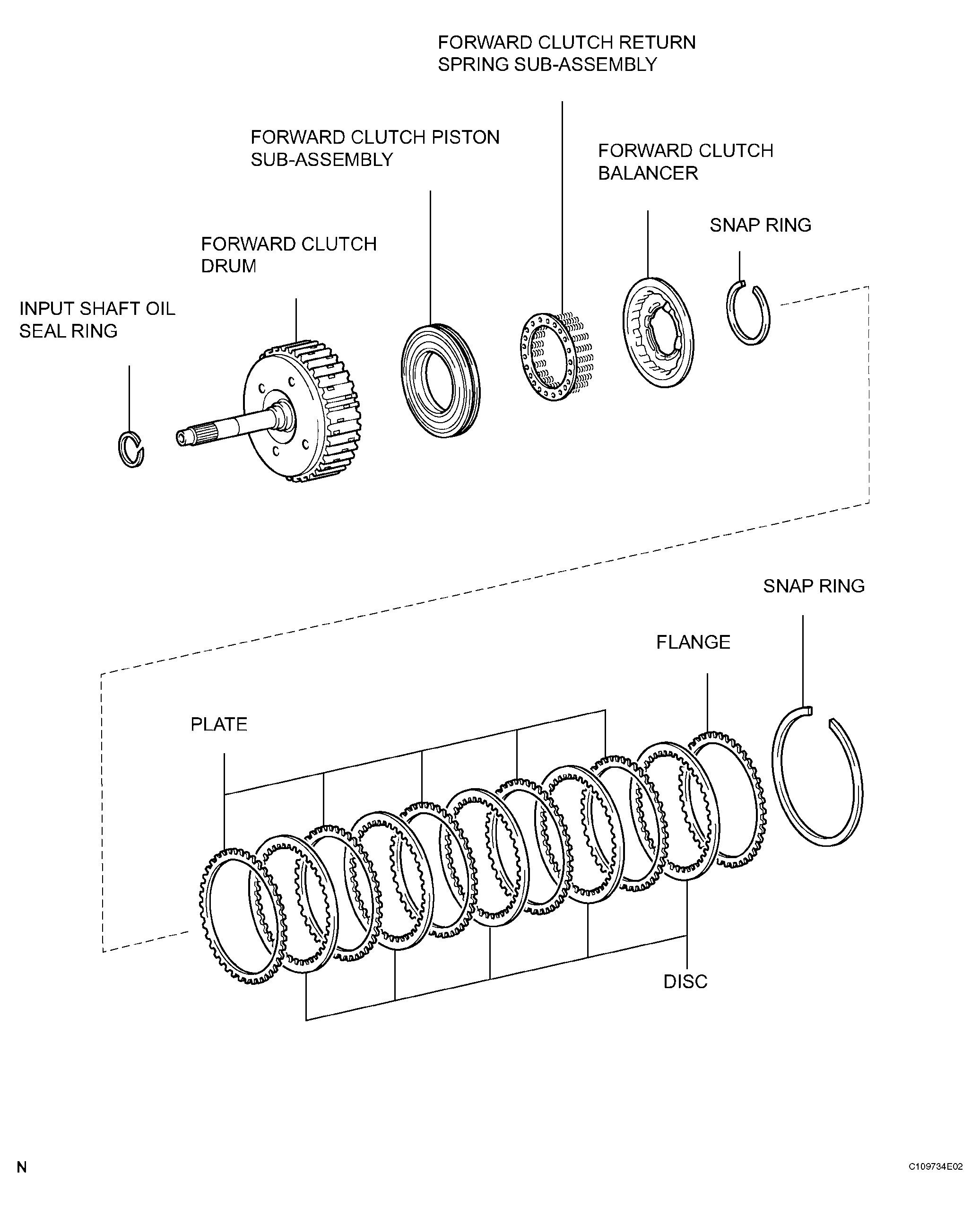

Fig 1: Exploded View Of Forward Clutch Components

G04089549

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
