Power Steering Link: Installation

INSTALL POWER STEERING LINK ASSEMBLY
1. Install the power steering link assembly with the 2 bolts and the nuts.
  Torque: 70 N*m (714 kgf*cm, 52 ft.*lbf)

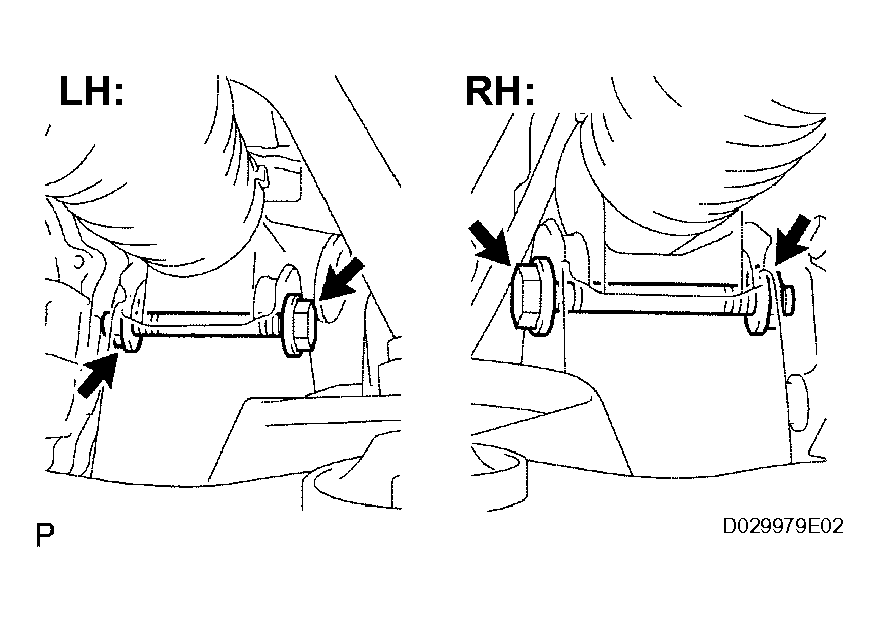

  Fig 1: Installing Power Steering Link Assy
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
CONNECT PRESSURE FEED TUBE ASSEMBLY
1. Using SST, connect the pressure feed tube assembly to the steering link assembly.
  SST 09023--12701

  Torque: 22 N*m (230 kgf*cm, 16 ft.*lbf)

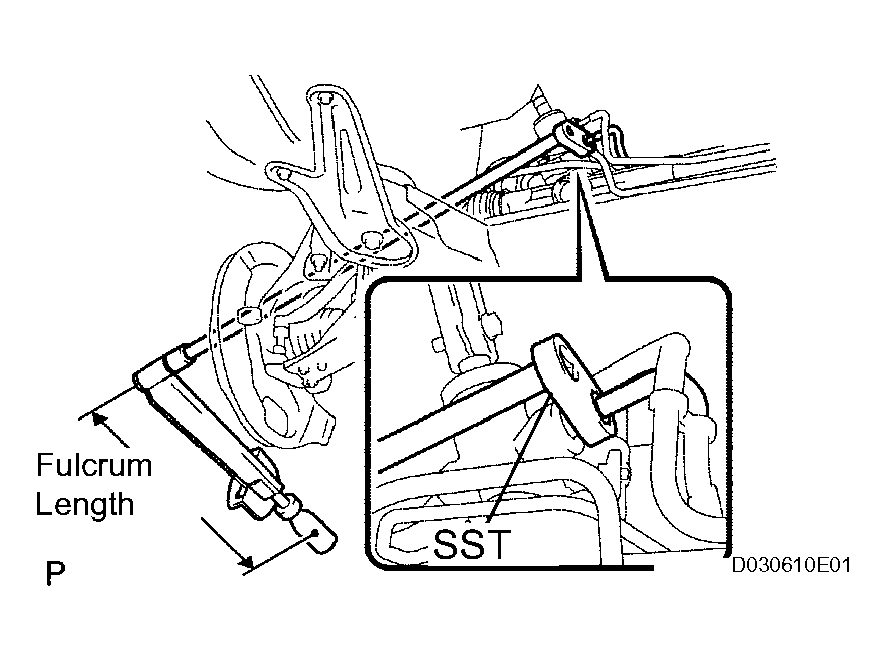

  Fig 2: Connecting Pressure Feed Tube Assy To Steering Link Assy
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  HINT:
  - Use a torque wrench with a fulcrum length of 300 mm (11.81 in.).
  - This torque value is effective when SST is parallel to a torque wrench.
2. Install the pressure feed tube assembly clamp with the bolt.

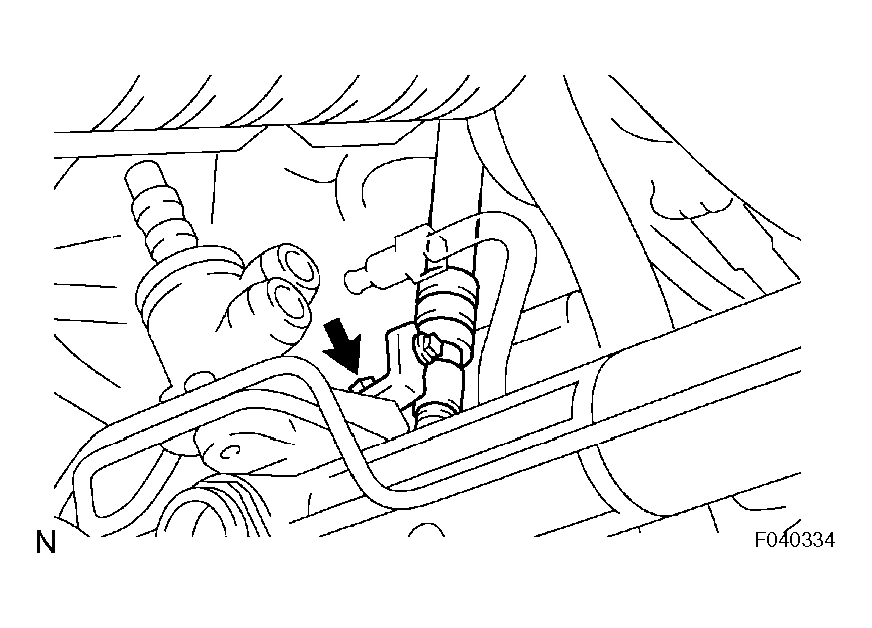

  Fig 3: Installing Pressure Feed Tube Assy Clamp
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 9.8 N*m (100 kgf*cm, 87 in.*lbf)
CONNECT RETURN TUBE ASSEMBLY
1. Using SST, connect the return tube assembly to the steering link assembly.

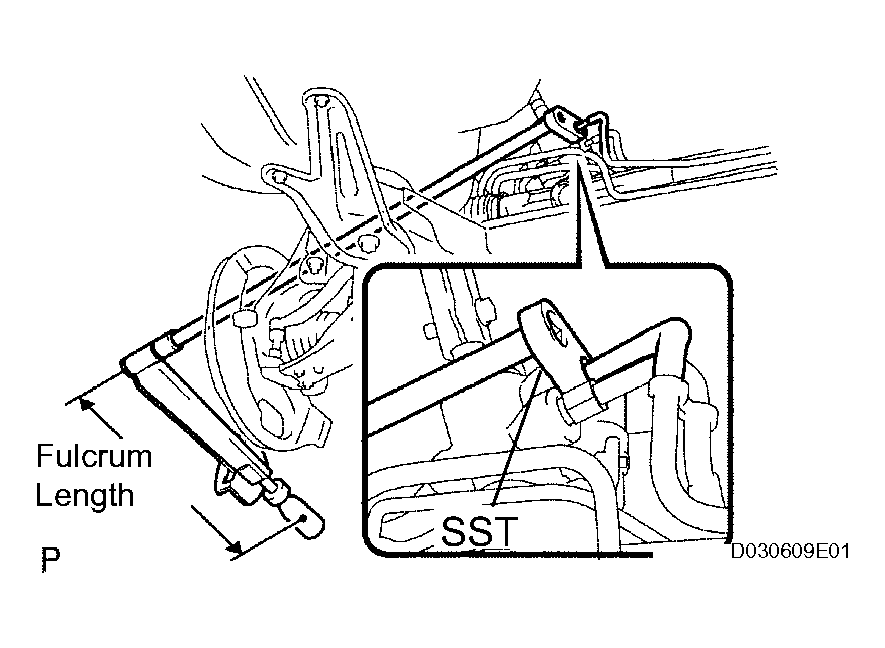

  Fig 4: Connecting Return Tube Assy To Steering Link Assy
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  SST 09023--12701

  Torque: 22 N*m (230 kgf*cm, 16 ft.*lbf)

  HINT:
  - Use a torque wrench with a fulcrum length of 300 mm (11.81 in.).
  - This torque value is effective when SST is parallel to a torque wrench.
2. Install the tube clamp to the pressure feed tube assembly.
3. Install the pressure feed tube clamp with the nut.
  Torque: 9.8 N*m (100 kgf*cm, 87 in.*lbf)
INSTALL HEIGHT CONTROL SENSOR SUB-ASSEMBLY FRONT LH (See INSTALLATION )

Fig 5: Installing Pressure Feed Tube Clamp
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FRONT STABILIZER BRACKET NO.1 LH
1. FF:
  Install the stabilizer bracket No. 1 LH with the 2 bolts.

  Torque: 16 N*m (163 kgf*cm, 12 ft.*lbf)
2. 4WD:
  Install the stabilizer bracket No. 1 LH and the stabilizer bracket No. 2 with the 2 bolts.

  Torque: 16 N*m (163 kgf*cm, 12 ft.*lbf)

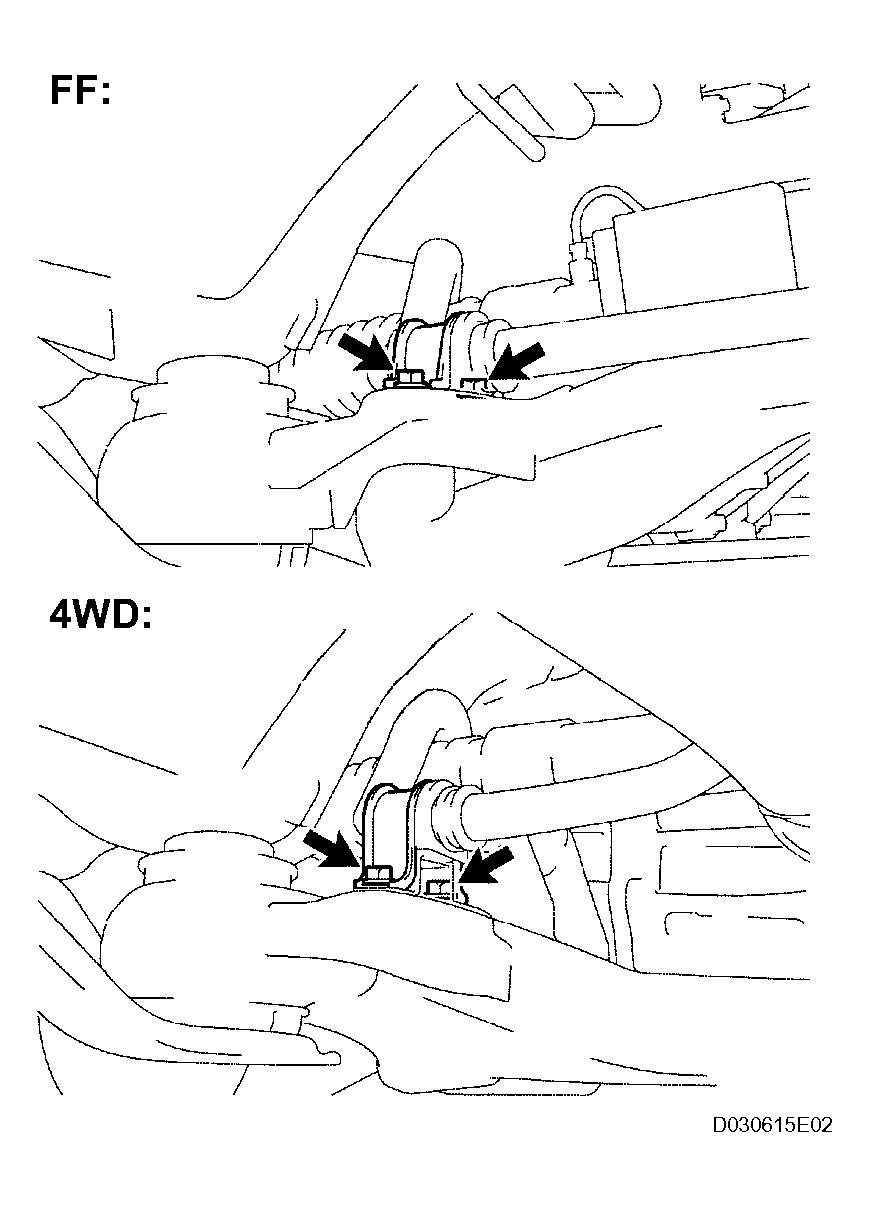

  Fig 6: Installing Front Stabilizer Bracket No.1 LH
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FRONT STABILIZER BRACKET NO.1 RH
HINT:

Perform the same procedure on the other side.
INSTALL EXHAUST PIPE ASSEMBLY FRONT (See INSTALLATION )
CONNECT FRONT STABILIZER LINK ASSEMBLY LH (See INSTALLATION )
CONNECT FRONT STABILIZER LINK ASSEMBLY RH
HINT:

Perform the same procedure on the other side.
CONNECT TIE ROD ASSEMBLY LH
CONNECT TIE ROD ASSEMBLY RH
HINT:

Perform the same procedure on the other side.
INSTALL FRONT WHEEL
Torque: 103 N*m (1,050 kgf*cm, 76 ft.*lbf)
CONNECT STEERING INTERMEDIATE SHAFT SUB-ASSEMBLY
1. Align the matchmarks on the intermediate shaft sub-assembly and the steering link assembly.
2. Install the bolt.
  Torque: 35 N*m (360 kgf*cm, 26 ft.*lbf)

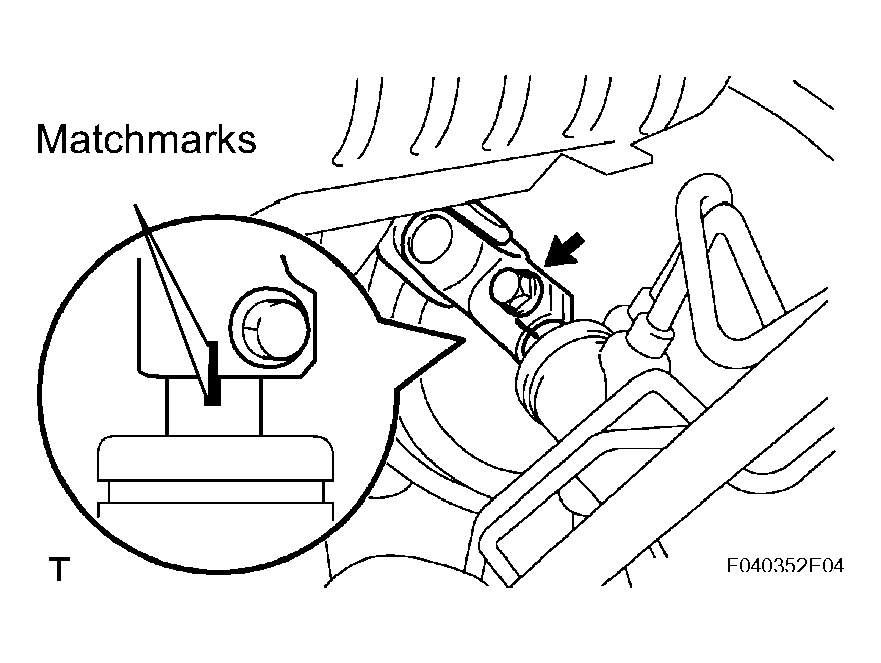

  Fig 7: Aligning Matchmarks On Intermediate Shaft Sub-Assy And Steering Link Assy
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Tighten the bolt A.
  Torque: 35 N*m (360 kgf*cm, 26 ft.*lbf)
4. Install the steering column hole cover No. 2 to the steering hole cover No. 1.
5. Install the clamp to the steering column hole cover No. 1 and tighten the bolt B.

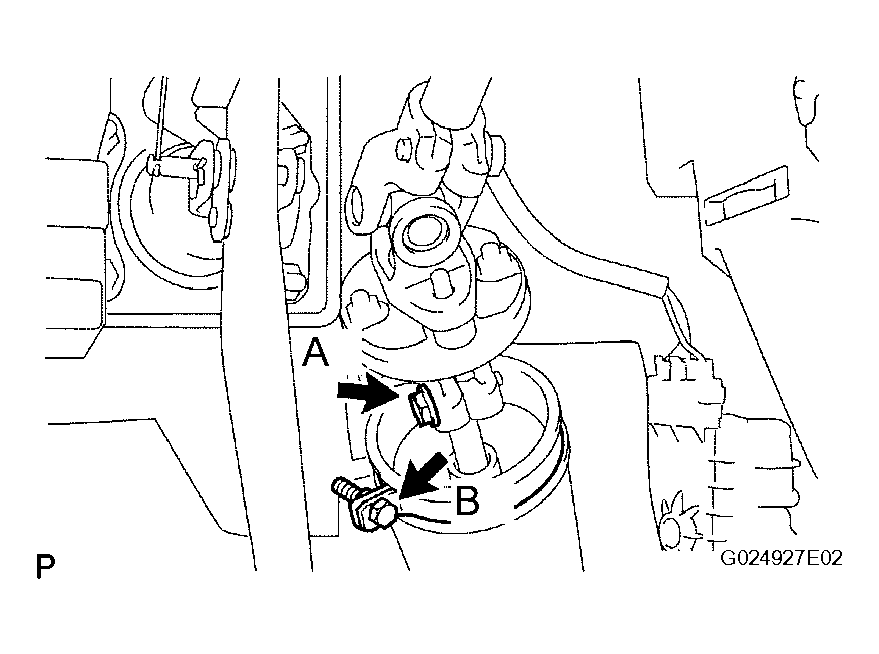

Fig 8: Tightening Bolts
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
BLEED POWER STEERING FLUID (See BLEEDING )
CHECK POWER STEERING FLUID LEAKAGE
CHECK FOR EXHAUST GAS LEAKS
INSPECT STEERING WHEEL CENTER POINT
