Power Steering Link: Components

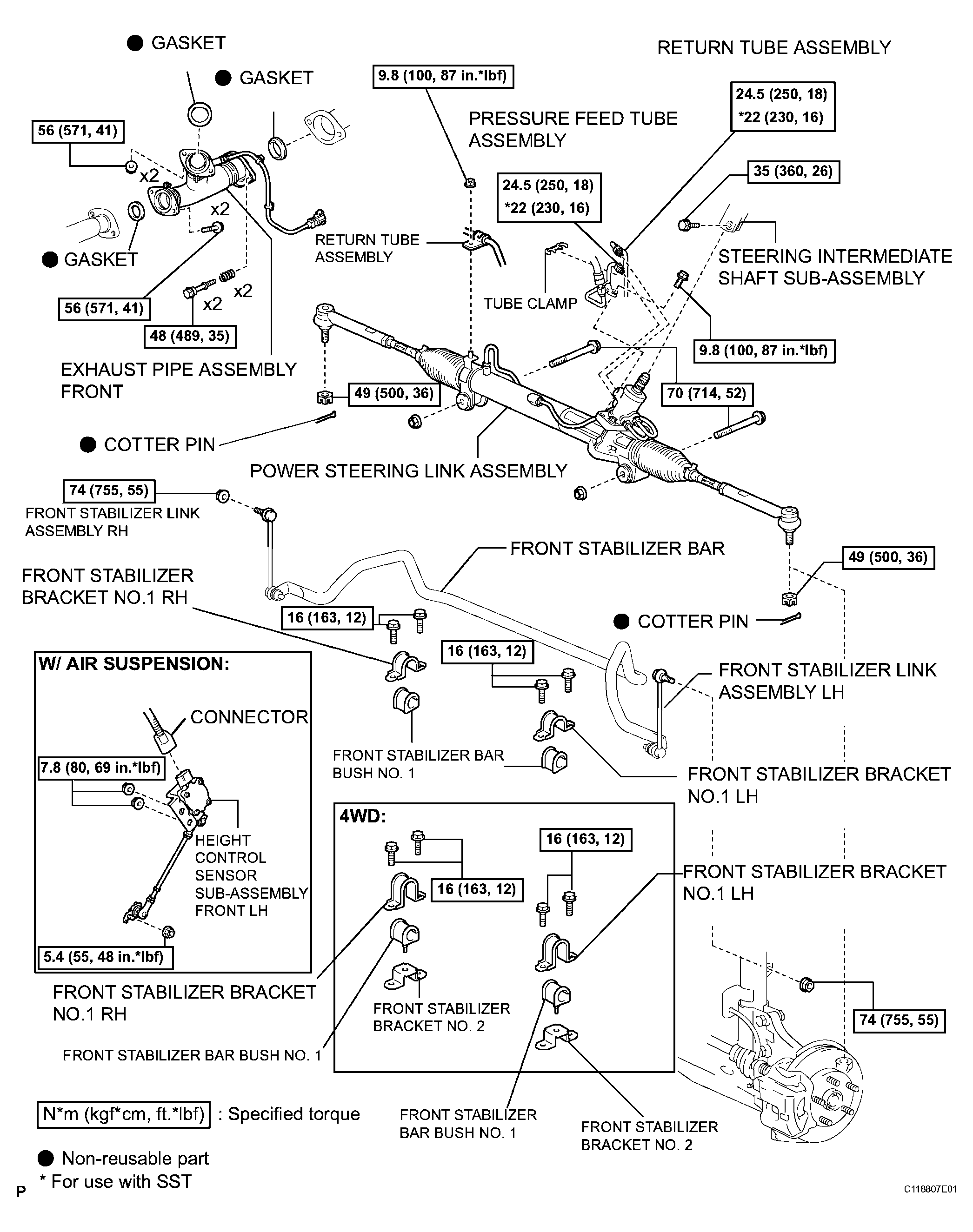

Fig 1: Power Steering Link Assy Replacement Components With Torque Specifications (1 Of 3)
G04090944Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

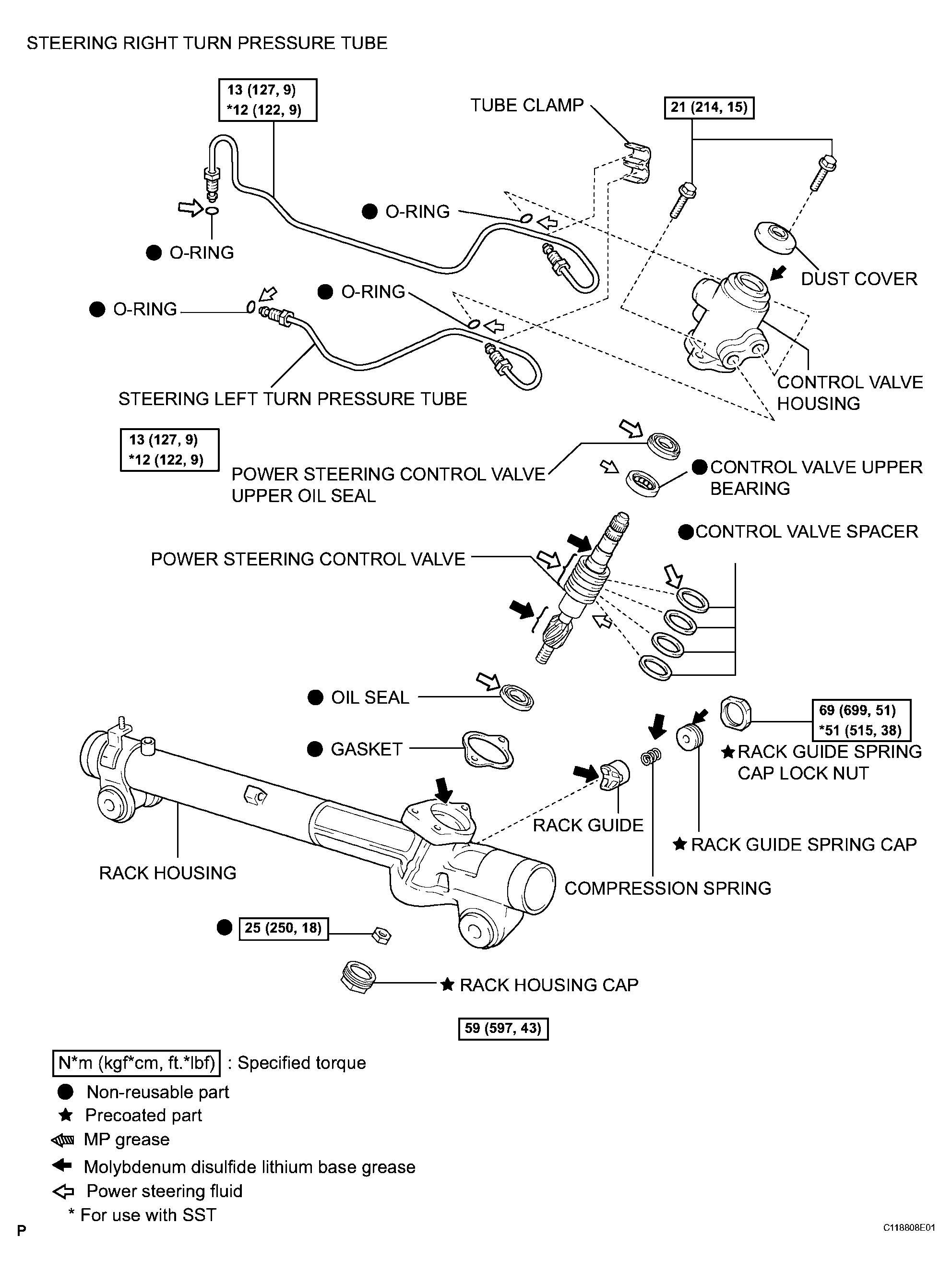

Fig 2: Power Steering Link Assy Replacement Components With Torque Specifications (2 Of 3)
G04090945Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

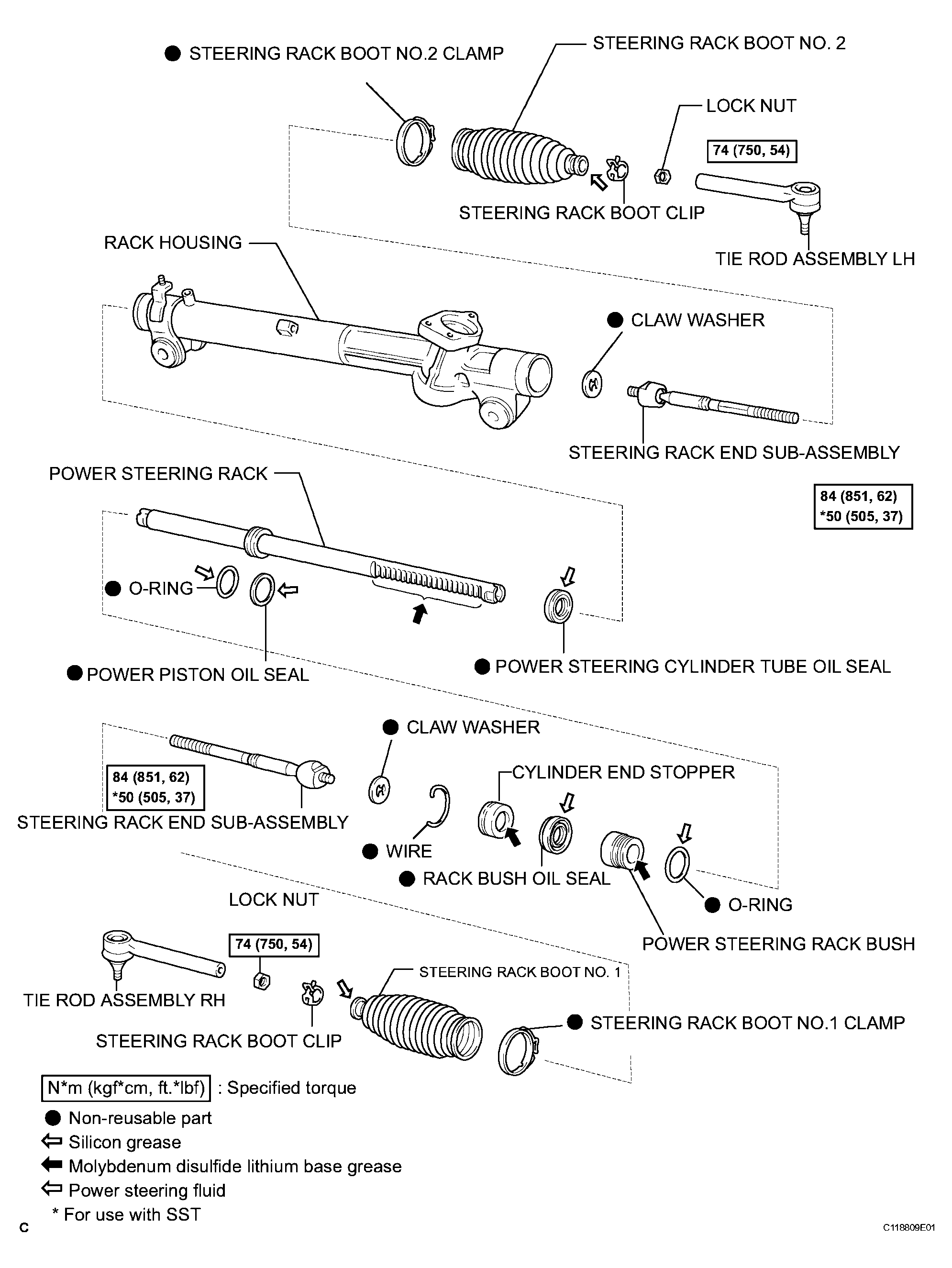

Fig 3: Power Steering Link Assy Replacement Components With Torque Specifications (3 Of 3)
G04090946Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
