Rear Center Seat Inner Belt Assembly: Components

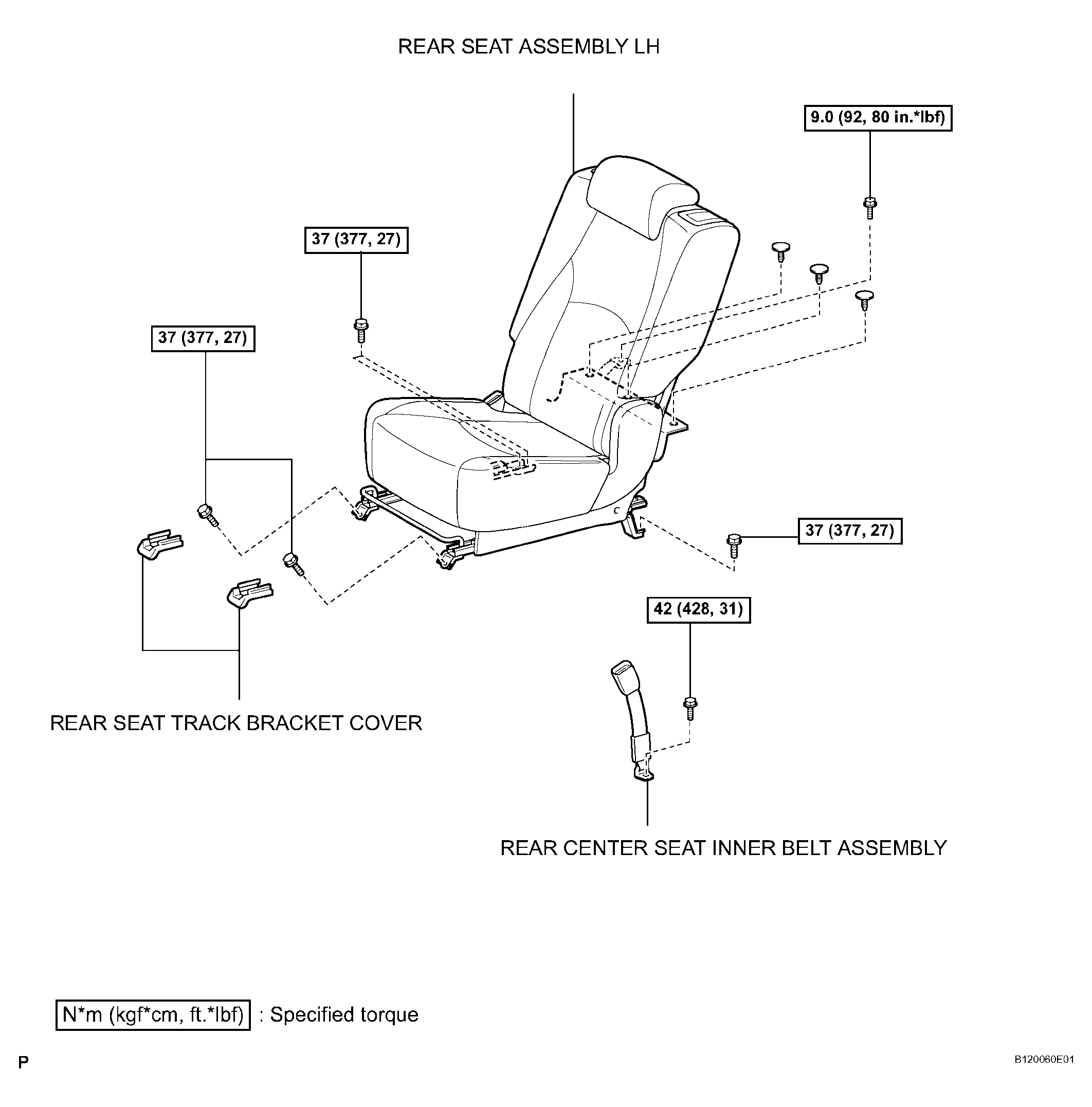

Fig 1: Rear Center Seat Inner Belt Assembly Replacement Components With Torque Specifications

G04091870

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
