Front Seat Inner Belt Assembly: Installation

INSTALL FRONT SEAT INNER BELT ASSEMBLY
1. Install the front seat inner belt assembly with the nut.
  Torque: 42 N*m (428 kgf*cm, 31 ft.*lbf)

  NOTE: Do not allow the anchor part of the front seat inner belt assembly and the protruding parts of the front seat adjuster to overlap.
2. Install the 4 clamps.
3. Connect the connectors.

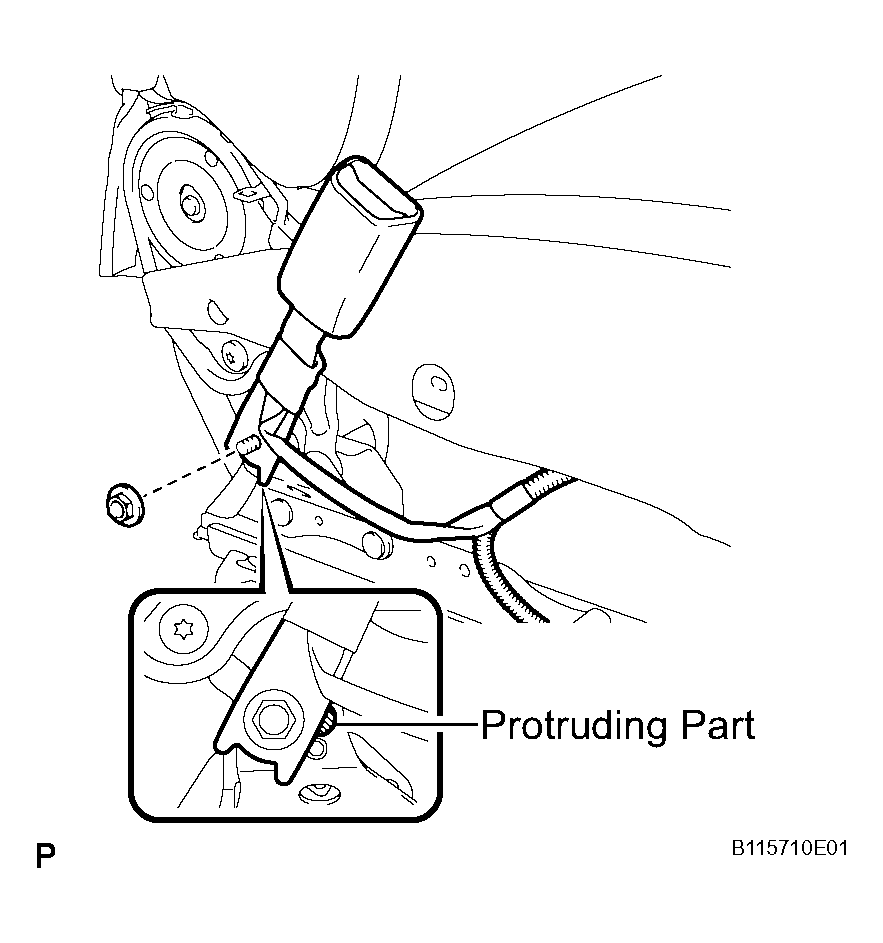

Fig 1: Installing Front Seat Inner Belt Assembly With Nut
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FRONT SEAT CUSHION SHIELD ASSEMBLY
INSTALL SLIDE AND VERTICAL POWER SEAT SWITCH KNOB
INSTALL RECLINING POWER SEAT SWITCH KNOB
INSTALL FRONT SEAT ASSEMBLY (See INSTALLATION )
INSTALL SEAT TRACK COVER RH
INSTALL SEAT TRACK COVER LH
INSTALL SEAT TRACK BRACKET COVER INNER FRONT LH
INSTALL SEAT TRACK BRACKET COVER OUTER FRONT LH
PERFORM INITIALIZATION
Some systems need initialization when disconnecting the cable from the negative battery terminal.
CHECK POWER SEAT FUNCTION
HINT:
- (See ON-VEHICLE INSPECTION for w/o Memory).
- (See ON-VEHICLE INSPECTION for w/ Memory).
INSPECT SEAT HEATER OPERATION
INSPECT SRS WARNING LIGHT
(See DIAGNOSIS SYSTEM )
