Center Cluster Integration Switch: Components

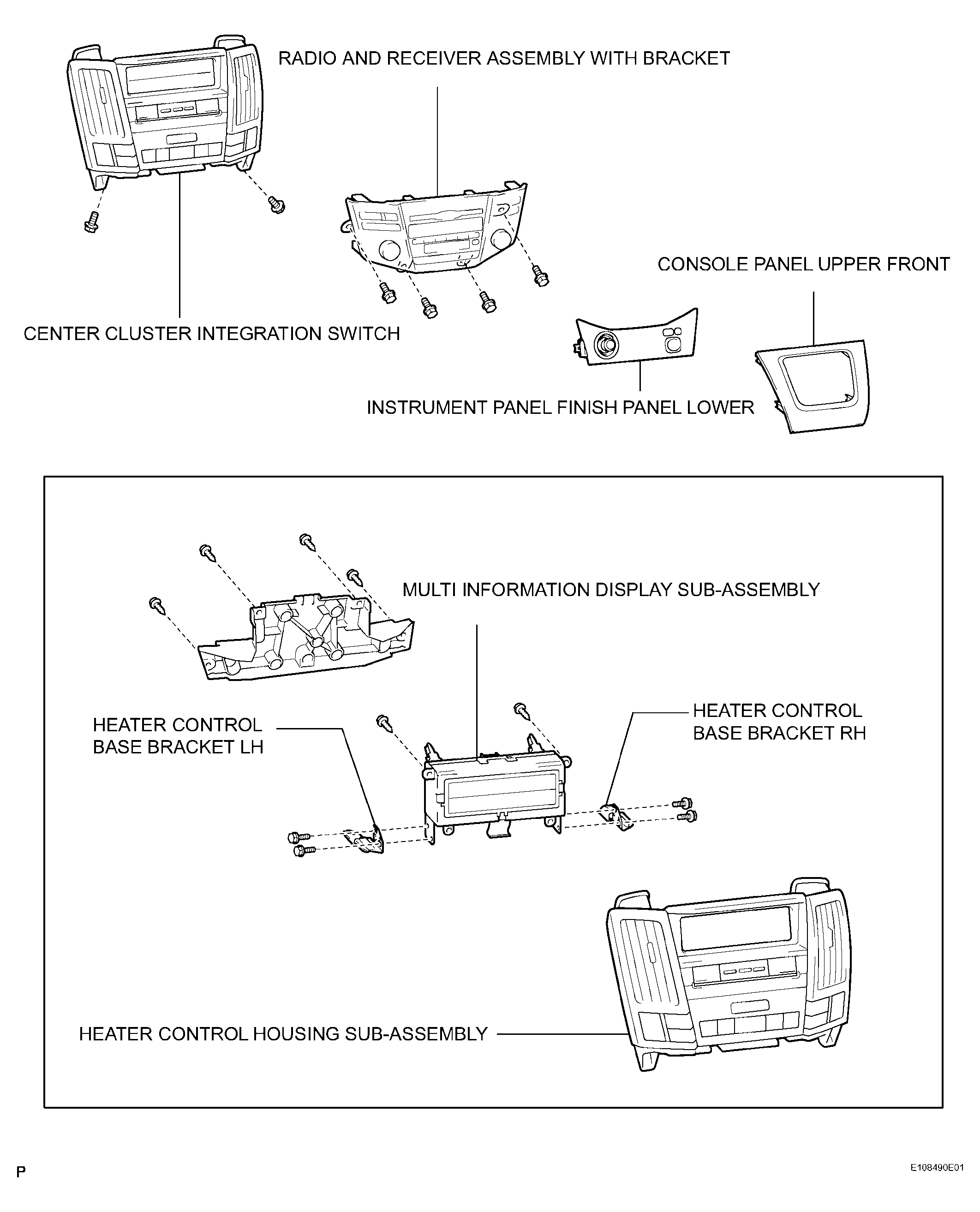

Fig 1: Identifying Center Cluster Integration Switch Components

G04091297

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
