Park/Neutral Position Switch ASSY: Replacement

WARNING: This page is about a different car, the 2006 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE ENGINE UNDER COVER SUB-ASSY NO.1
  2. REMOVE ENGINE UNDER COVER ASSY REAR
  3. DISCONNECT PARK/NEUTRAL POSITION SWITCH CONNECTOR
  4. REMOVE PARK/NEUTRAL POSITION SWITCH ASSY
    1. Pry off the lock washer and remove the nut.
    2. Remove the bolt and park/neutral position switch.

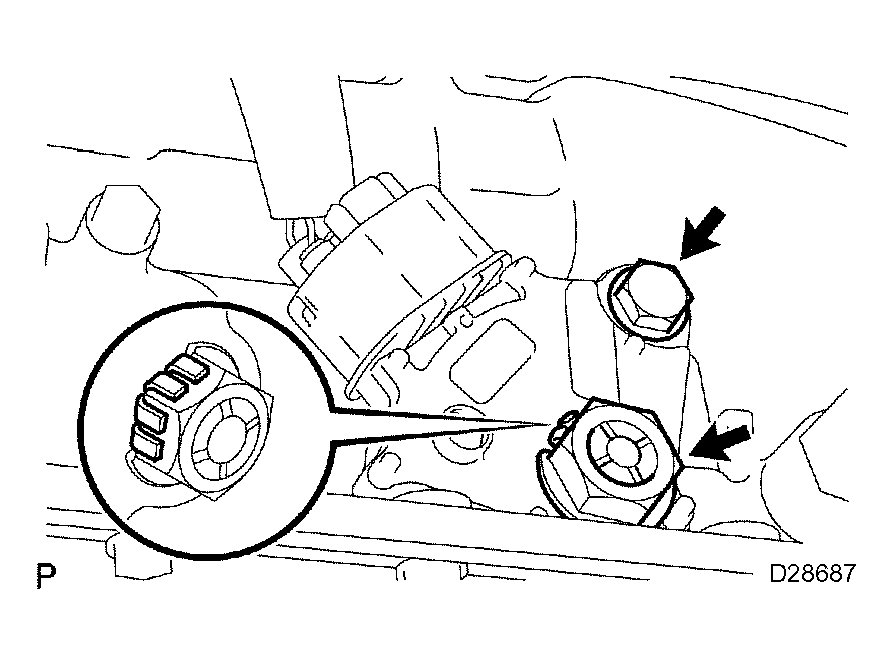

      Fig 1: Removing Bolt & Park/Neutral Position Switch
      G04333956Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. INSTALL PARK/NEUTRAL POSITION SWITCH ASSY
    1. Install the park/neutral position switch with bolt.

      Torque: 13 N.m (130 kgf.cm, 9 ft.lbf)

    2. Install a new lock washer and nut.

      Torque: 7 N.m (71 kgf.cm, 62 in..lbf)

    3. Bent the claws on the lock washer to stake the nut.
    4. Adjust the park/neutral position switch (see ADJUSTMENT  ).
  6. CONNECT PARK/NEUTRAL POSITION SWITCH CONNECTOR
  7. INSTALL ENGINE UNDER COVER ASSY REAR
  8. INSTALL ENGINE UNDER COVER SUB-ASSY NO.1
  9. INSPECT PARK/NEUTRAL POSITION SWITCH ASSY (SEE  ADJUSTMENT   )
