Key Inter Lock Solenoid: Inspection

WARNING: This page is about a different car, the 2006 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.

INSPECT KEY INTER LOCK SOLENOID
1. Disconnect the solenoid connector.
2. Connect KLS+ (4) terminal to the batteries' positive (+) terminal, and KLS- (3) terminal to the battery negative (-) terminal, and apply about 12V between KLS+ - KLS- terminals.
  Check that operation noise can be heard from the solenoid.

  If the solenoid does not operate, replace the solenoid.

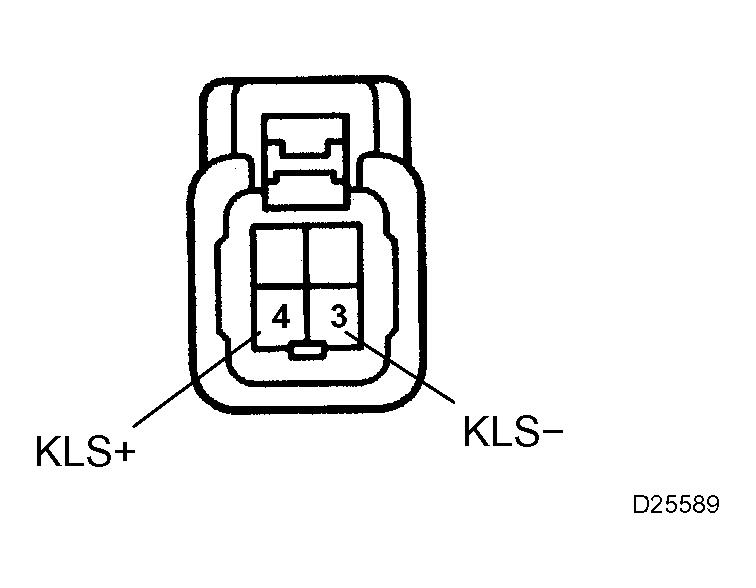

  Fig 1: Identifying Key Inter Lock Solenoid Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
