Floor Shift ASSY: Components

WARNING: This page is about a different car, the 2006 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.

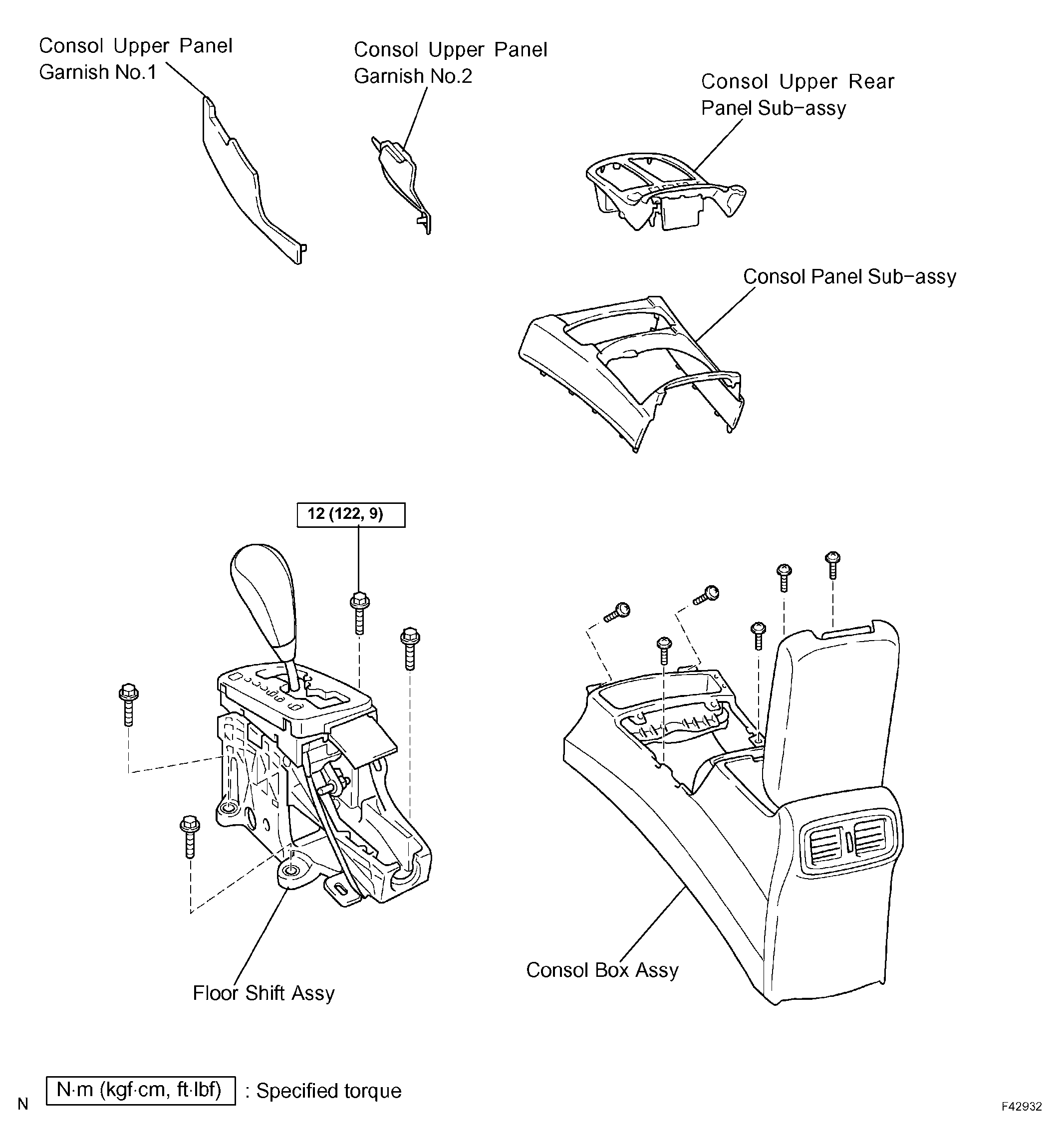

Fig 1: Identifying Floor Shift Assy Components (1 Of 2)
G04334110Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

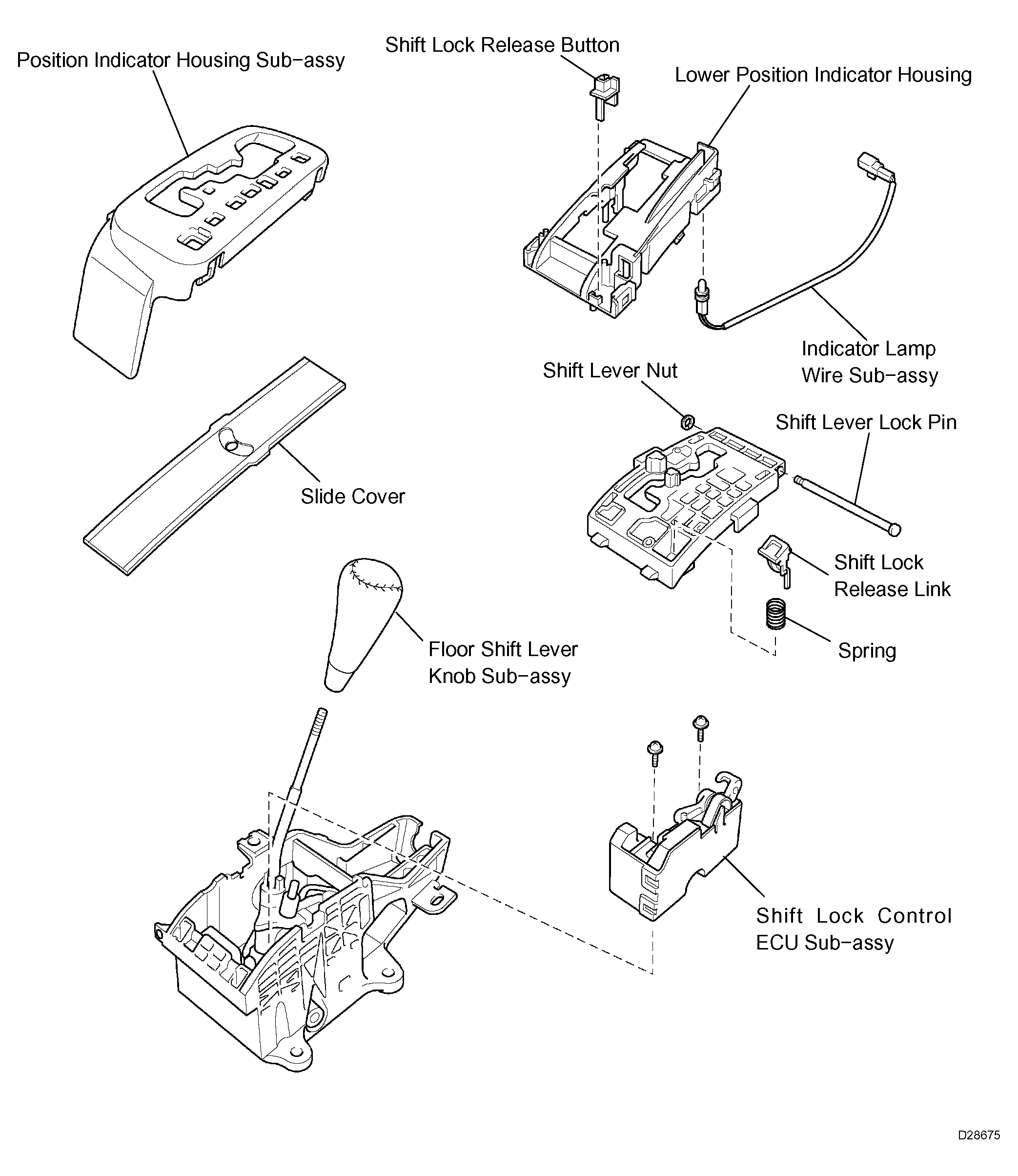

Fig 2: Identifying Floor Shift Assy Components (2 Of 2)
G04334111Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
