System Diagram

WARNING: This page is about a different car, the 2006 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.

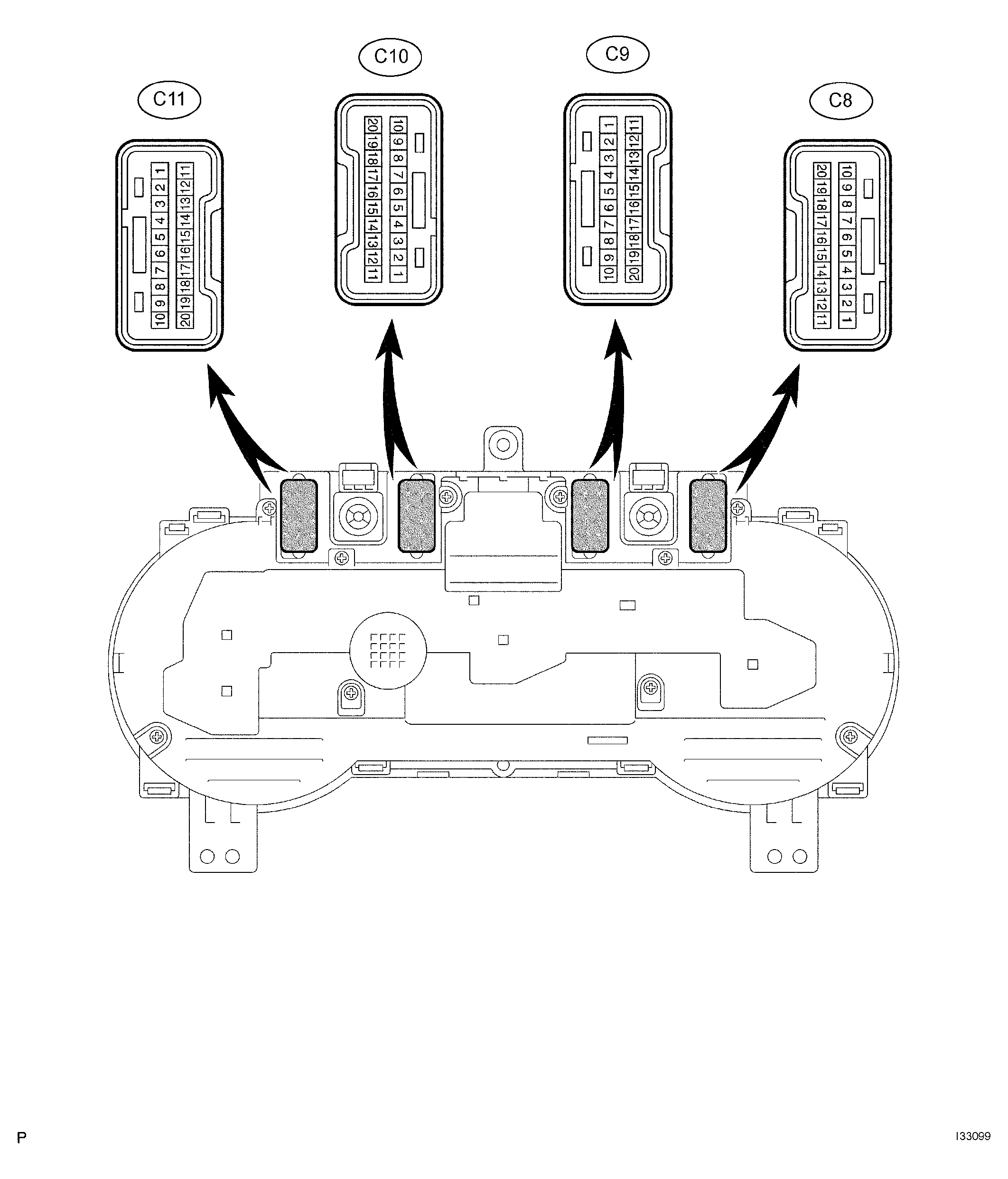

Fig 1: Combination Meter System Diagram (1 Of 3)
G04336417Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

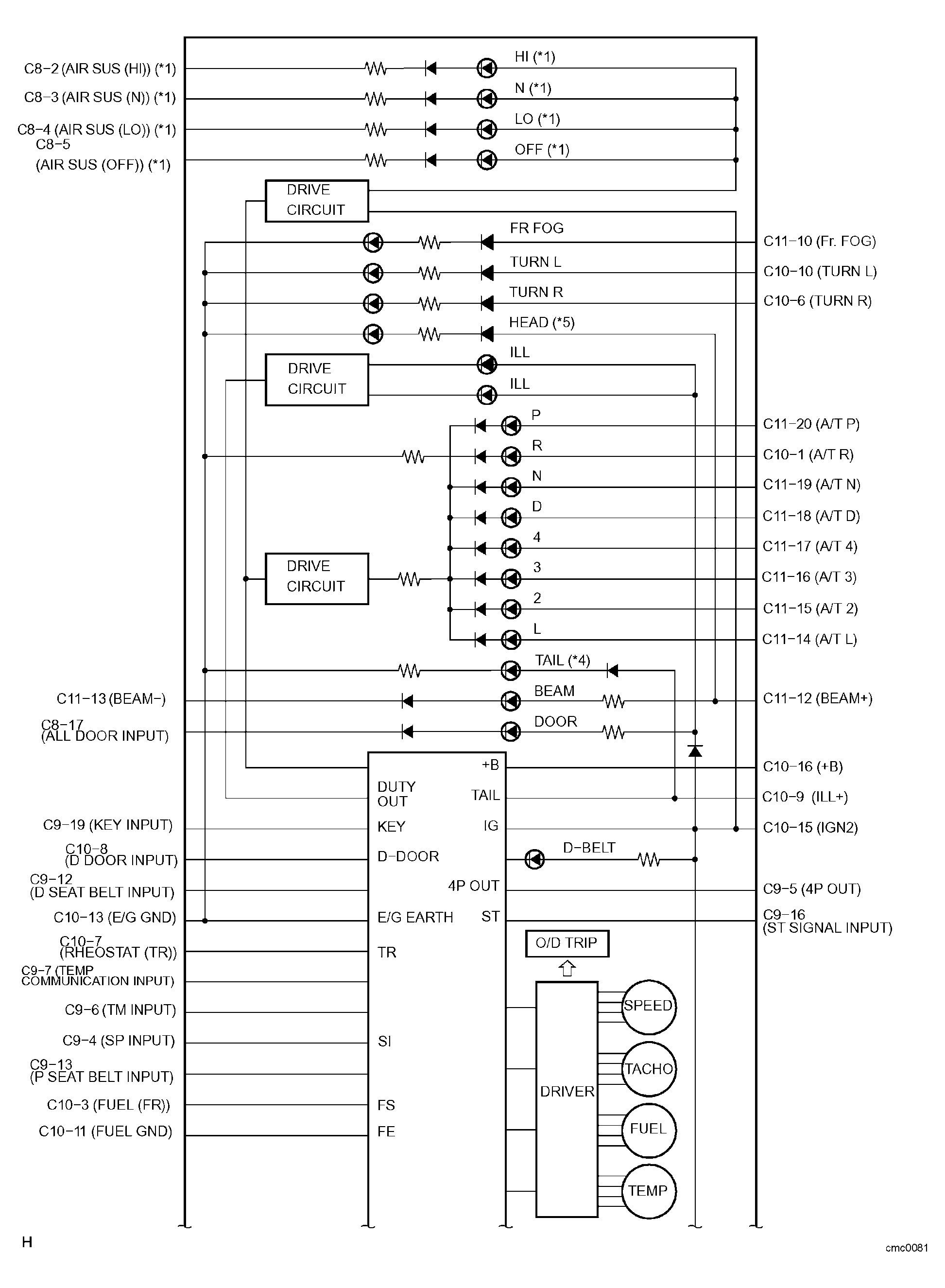

Fig 2: Combination Meter System Diagram (2 Of 3)
G04336418Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

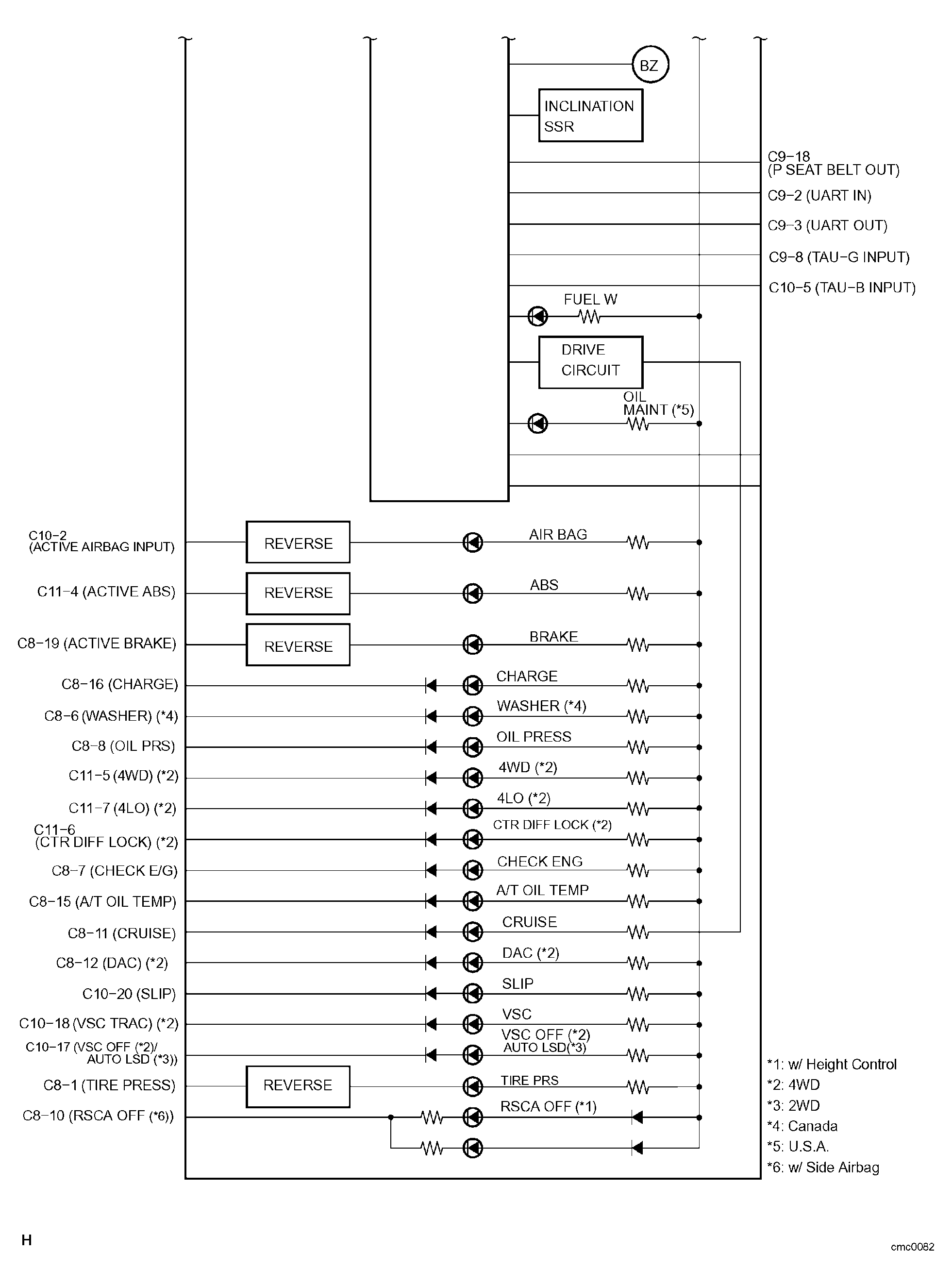

Fig 3: Combination Meter System Diagram (3 Of 3)
G04336419Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
TERMINAL REFERENCE TABLE

Terminal No. Wire harness side
C8 1 Tire Pressure Monitor ECU
2 Suspension Control ECU (HI) ((6))
3 Suspension Control ECU (N) ((6))
4 Suspension Control ECU (LO) ((6))
5 Suspension Control ECU (OFF) ((6))
6 Washer Level Sensor ((4))
7 ECM (CHECK ENGINE)
8 Oil Pressure Switch
10 Airbag Sensor Assembly (RSCA OFF) ((1))
11 ECM (CRUISE)
12 ABS & Traction Actuator Assy (VSC) (DAC)
15 ECM (A/T OIL TEMP)
16 Generator (CHARGE)
17 Body ECU (ALL DOOR INPUT)
18 Brake Fluid Level Warning Switch
19 Brake Actuator Assy (ABS), ABS & Traction Actuator Assy (VSC) (ACTIVE BRAKE)
C9 2 A/C Control Assembly (UART IN)
3 A/C Control Assembly (UART OUT)
4 ABS & Traction Actuator Assy (VSC)
5 ECM
6 ECM (TM INPUT)
7 A/C Control Assembly (TEMP COMMUNICATION INPUT)
8 Injector No.1 (TAU-G INPUT)
12 Front Seat Inner Belt Assy (Driver Side) (INPUT)
13 Front Seat Inner Belt Assy (Passenger Side) (INPUT)
16 STA Relay (ST SIGNAL INPUT)
18 Front Seat Inner Belt Assy (Passenger Side) (OUT)
19 KEY INPUT
C10 1 Park/Neutral Position Switch (R)
2 Airbag Sensor Assembly (ACTIVE AIRBAG INPUT)
3 Fuel Sender Gauge Assy (FR)
5 IGN Fuse (TAU-B INPUT)
6 Turn Signal Flasher (TURN R)
7 Rheostat (TR)
8 Body ECU (D DOOR INPUT)
9 Tail Relay (ILL+)
10 Turn Signal Flasher (TURN L)
11 Fuel Ground
13 Engine Ground
15 GAUGE Fuse (IGN2)
16 DOME Fuse (+B)
17 ABS & Traction Actuator Assy (VSC) (VSC OFF ((2)), AUTO LSD ((3)))
18 ABS & Traction Actuator Assy (VSC) ((2))
20 ABS & Traction Actuator Assy (VSC) (SLIP)
C11 4 Brake Actuator Assy (ABS), ABS & Traction Actuator Assy (VSC) (ACTIVE ABS)
5 4WD Control ECU (4WD) ((5))
6 4WD Control ECU (CTR DIFF LOCK) ((2))
7 4WD Control ECU (4LO) ((2))
10 Front Fog Light Relay (Fr. FOG)
12 Headlight (HI) Fuse (BEAM+)
13 Combination Switch (BEAM-)
14 Transmission Control Switch (L)
15 Transmission Control Switch (2)
16 Park/Neutral Position Switch (3)
17 Transmission Control Switch (4)
18 Transmission Control Switch (D)
19 Park/Neutral Position Switch (N)
20 Park/Neutral Position Switch (P)
(1) w/ Side Airbag
(2) 4WD
(3) 2WD
(4) Canada, Mexico model
(5) 1GR-FE, 4WD
(6) w/ Height control
