Inspection Procedure

WARNING: This page is about a different car, the 2006 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.

CHECK SURROUNDING CONDITIONS
1. Check if the cellular phone can make calls in a certain place.
  OK:

  Cellular phone can make calls.
NG: END (CELLULAR PHONES CAN ONLY FUNCTION IN CELLULAR SERVICE AREAS)

OK: GO TO NEXT STEP.

CHECK RECEPTION

Enter the "Information" screen by pressing the "INFO" switch.
Select "Telephone".

Fig 1: Display - Telephone
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Check the BT mark.

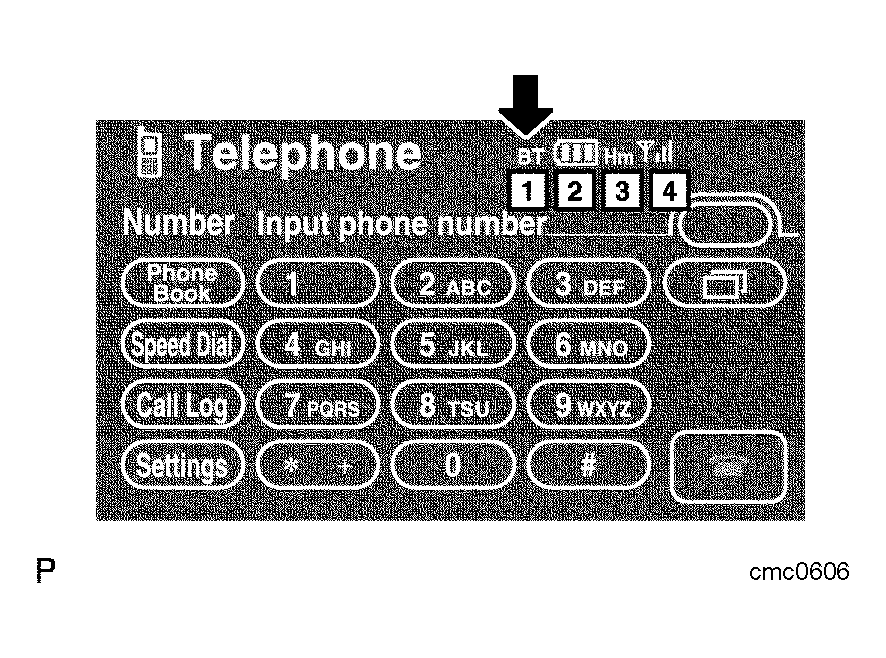

Fig 2: Display - BT Mark

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Result:

RESULT REFERENCE

Condition	Proceed to
Yellow color	A
Blue color	B
No connection mark is displayed	C

B: Go to step 4

C: CHECK THAT BLUETOOTH COMPATIBLE PHONE IS SELECTED AND REGISTERED

A: GO TO NEXT STEP.

MOVE CELLULAR PHONE
1. Bring the cellular phone to a location where the Bluetooth connection mark turns blue, and proceed to the next step.
CHECK RECEPTION
1. Check if the reception level is the same on the cellular phone and the radio and navigation assembly.
  OK:

  The reception level differs greatly.

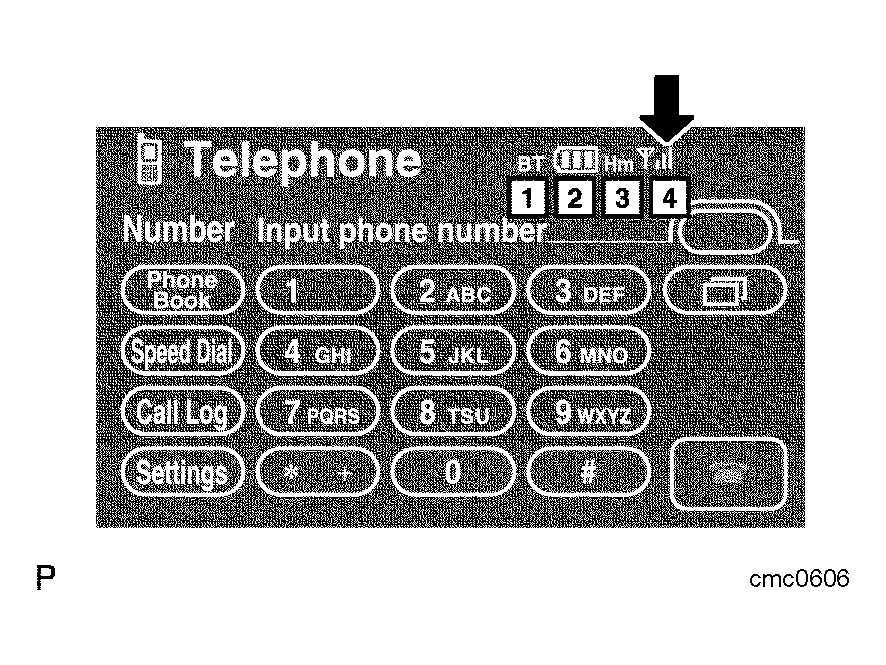

  Fig 3: Checking Reception Level
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
NG: REPLACE RADIO AND NAVIGATION ASSEMBLY

OK: GO TO NEXT STEP.
CHECK RECEPTION
1. Place a cellular phone close to the radio and navigation assembly.
2. Check if the reception level becomes the same on the cellular phone and the radio and navigation assembly.
  OK:

  Reception level does not become the same.

  HINT:

  The radio and navigation assembly receives radio waves of different strength depending on the strength of the radio wave transmitted by the cellular phone.

  Fig 4: Checking Reception Level
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
NG: REPLACE RADIO AND NAVIGATION ASSEMBLY

OK: END
