Fuel Tank: Installation

  1. INSTALL FUEL TANK CUSHION SET
  2. INSTALL FUEL TANK SIDE PLATE

    Torque: 30 N*m (306 kgf*cm, 22 ft.*lbf)

  3. INSTALL TANK SUCTION TUBE SUPPORT
    1. Install a new tank suction tube support as shown in the illustration.
      Fig 1: Installing Tank Suction Tube Support
      G04088080Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. INSTALL FUEL TANK VENT HOSE
  5. INSTALL VAPOR PRESSURE SENSOR ASSEMBLY
    1. Install the vapor pressure sensor with the fuel tube joint clip.
      NOTE:
      • Check that there is no scratch or foreign objects on the connecting parts.
      • Check that the fuel tube joint is fully inserted.
      • Check that the fuel tube joint clip is on the collar of the fuel tube joint.
      • After installing the tube joint clip, check if the fuel joint is securely connected by pulling it.

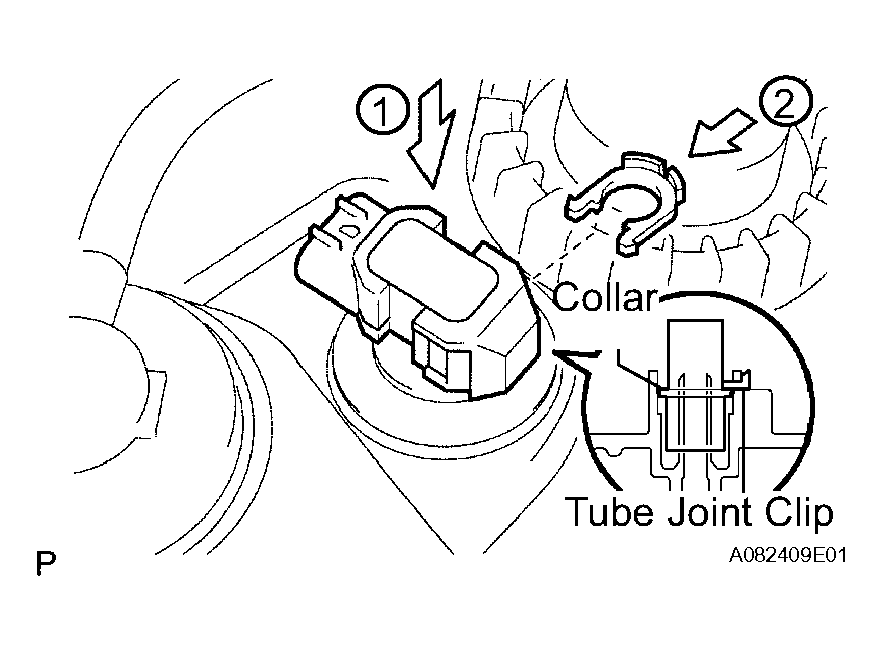

    Fig 2: Installing Vapor Pressure Sensor Assembly
    G04088081Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. INSTALL FUEL TANK WIRE
  7. INSTALL FUEL TANK TO FILLER PIPE HOSE
  8. INSTALL FUEL PUMP TUBE SUB-ASSEMBLY
  9. INSTALL FUEL TANK ASSEMBLY
    1. Set up the fuel tank to the transmission jack.
    2. Operating the transmission jack and the install the fuel tank.
    3. Tighten the 2 nuts.

      Torque: 20 N*m (200 kgf*cm, 14 ft.*lbf)

    4. Install the 2 fuel tank bands with the 4 bolts.

      Torque: 39 N*m (400 kgf*cm, 29 ft.*lbf)

    5. Install the connector clamp.
    6. Connect the fuel tank wire connector.
    7. Connect the fuel tank to filler pipe hose.
    8. Connect the fuel tank breather tube No. 3.
      1. Push the quick connector to the pipe until it makes "click" sound.
        NOTE:
        • Check if there is any damage or foreign objects on the connected part.
        • After connecting, check if the quick connector and the pipe are securely connected by pulling on them.

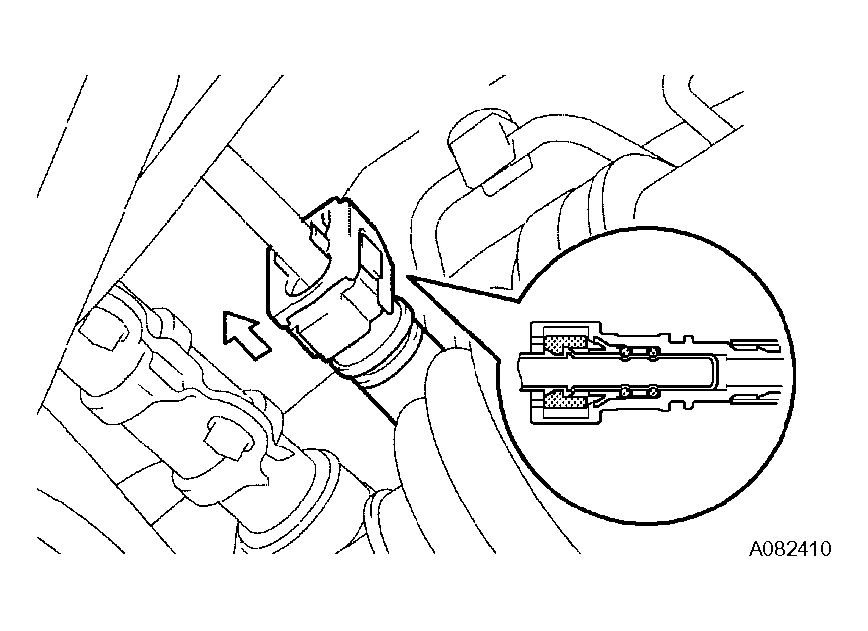

      Fig 3: Connecting Fuel Tank Breather Tube No. 3
      G04088082Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    9. Connect the fuel tank vent hose.
    10. Connect the fuel pump tube.
      1. Push quick connector and push up retainer to the claws lock.
        NOTE:
        • Check if there is any damage or foreign objects on the connected part.
        • After connecting, check if the quick connector and the pipe are securely connected by pulling on them.

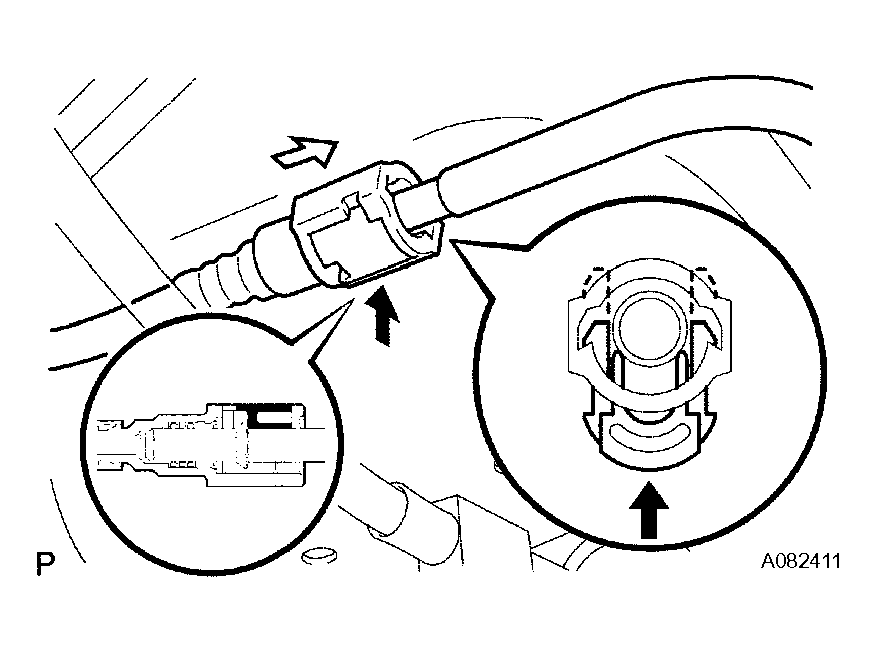

    Fig 4: Connecting Fuel Pump Tube
    G04088083Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. INSTALL FUEL TANK PROTECTOR SUB-ASSEMBLY NO. 1
    1. Install the fuel tank protector No. 1 with the 6 nuts.

      Torque: 5.5 N*m (56 kgf*cm, 49 in.*lbf)

    2. Install 3 new clips.
  11. INSTALL FUEL TANK PROTECTOR NO. 1

    Torque: 5.5 N*m (56 kgf*cm, 49 in.*lbf)

  12. INSTALL FUEL TUBE PROTECTOR NO. 1
  13. INSTALL EXHAUST PIPE SUPPORT BRACKET NO. 4

    Torque: 22 N*m (224 kgf*cm, 16 ft.*lbf)

  14. INSTALL FRONT FLOOR HEAT INSULATOR NO. 3 (See  INSTALLATION  )
  15. INSTALL EXHAUST PIPE ASSEMBLY CENTER (See  INSTALLATION  )
  16. INSTALL FUEL
  17. INSTALL SUCTION TUBE SUB-ASSEMBLY (See  INSTALLATION   )
  18. CHECK FOR FUEL LEAKS

    HINT:

    See ON-VEHICLE INSPECTION  .

  19. CHECK FOR EXHAUST GAS LEAKS
  20. INSTALL REAR FLOOR SERVICE HOLE COVER (See  INSTALLATION   )
  21. INSTALL REAR SEAT SIDE COVER LH
  22. INSTALL DECK SIDE TRIM COVER LH
  23. INSTALL REAR DOOR SCUFF PLATE LH
  24. INSTALL REAR SEAT ASSEMBLY LH (See  INSTALLATION  )
  25. INSTALL REAR SEAT ASSEMBLY RH (See  INSTALLATION  )
  26. INSTALL REAR SEAT TRACK BRACKET COVER OUTER
  27. INSTALL REAR SEAT TRACK BRACKET COVER OUTER
  28. INSTALL DECK BOARD SUB-ASSEMBLY
  29. INSTALL PROPELLER W/CENTER BEARING SHAFT ASSEMBLY (See  INSTALLATION  )
  30. FULLY TIGHTEN PROPELLER W/CENTER BEARING SHAFT ASSEMBLY (See  INSTALLATION  )
  31. ADD TRANSFER OIL
  32. INSPECT TRANSFER OIL
  33. INSTALL ENGINE UNDER COVER ASSEMBLY
