Fuel Pump: Components

Fig 1: Exploded View Of Fuel Pump Components With Torque Specifications (1 Of 3)
G04088032Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

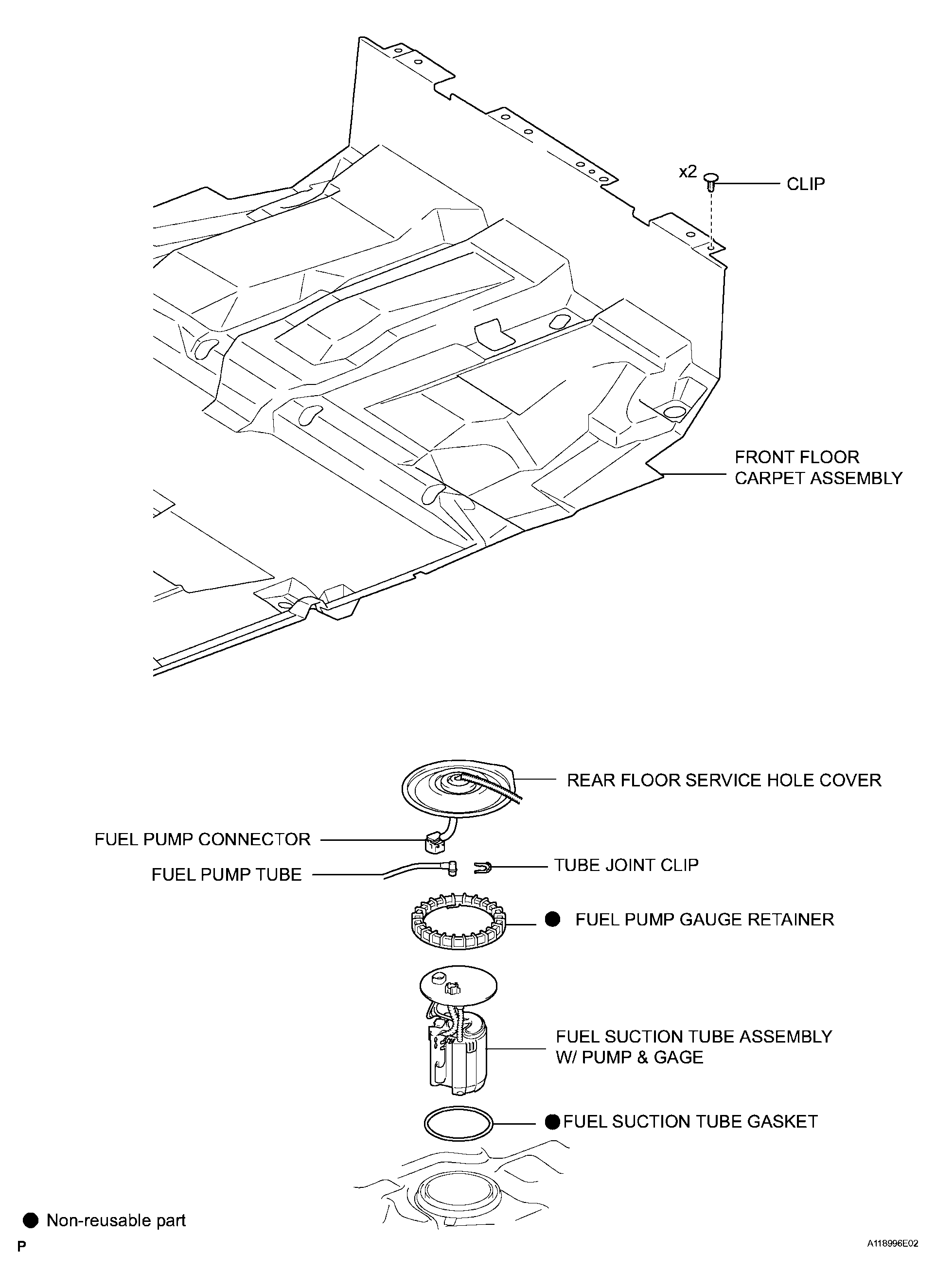

Fig 2: Exploded View Of Fuel Pump Components (2 Of 3)
G04088033Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

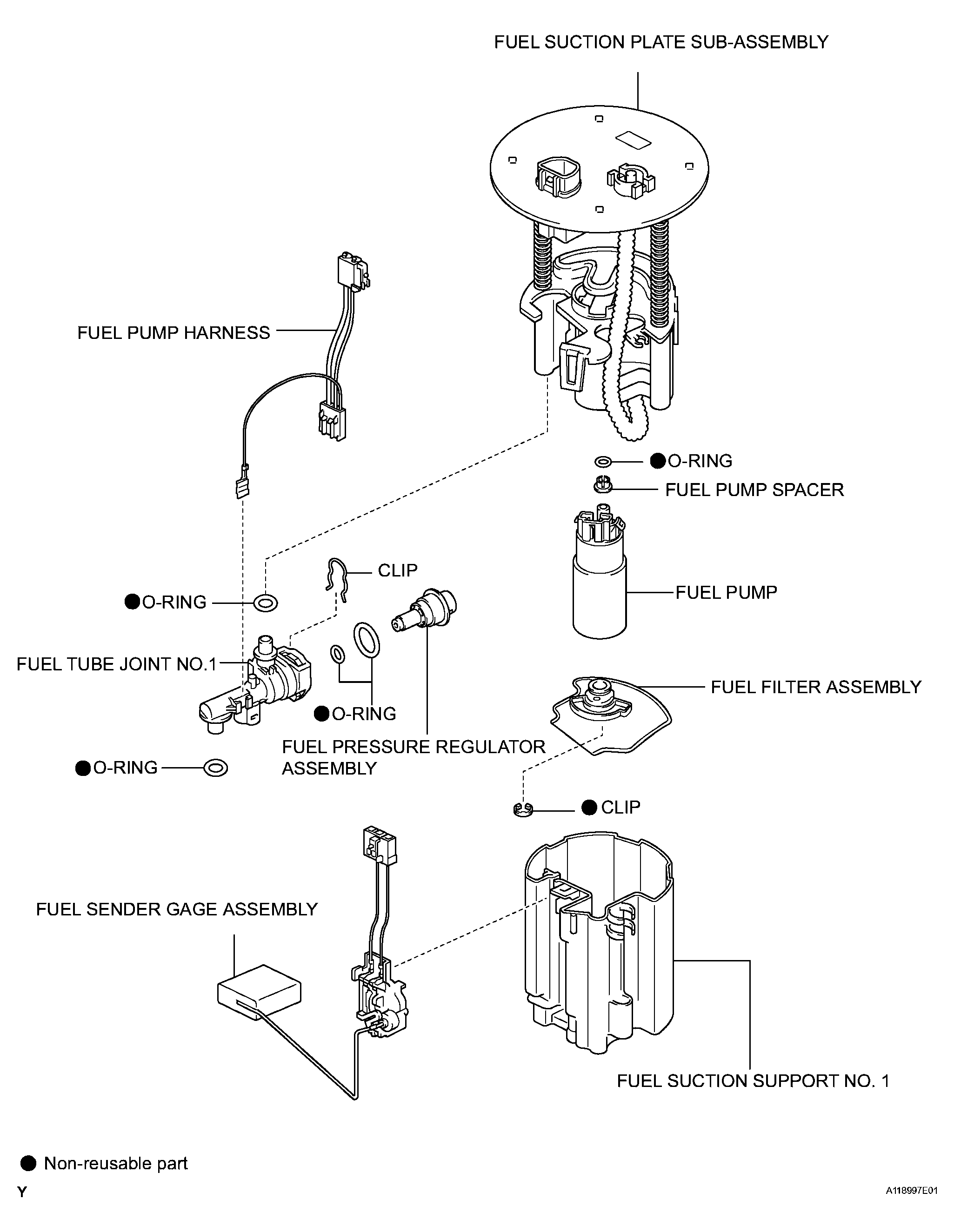

Fig 3: Exploded View Of Fuel Pump Components (3 Of 3)
G04088034Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
