Fuel Pump Control Circuit: Wiring Diagram

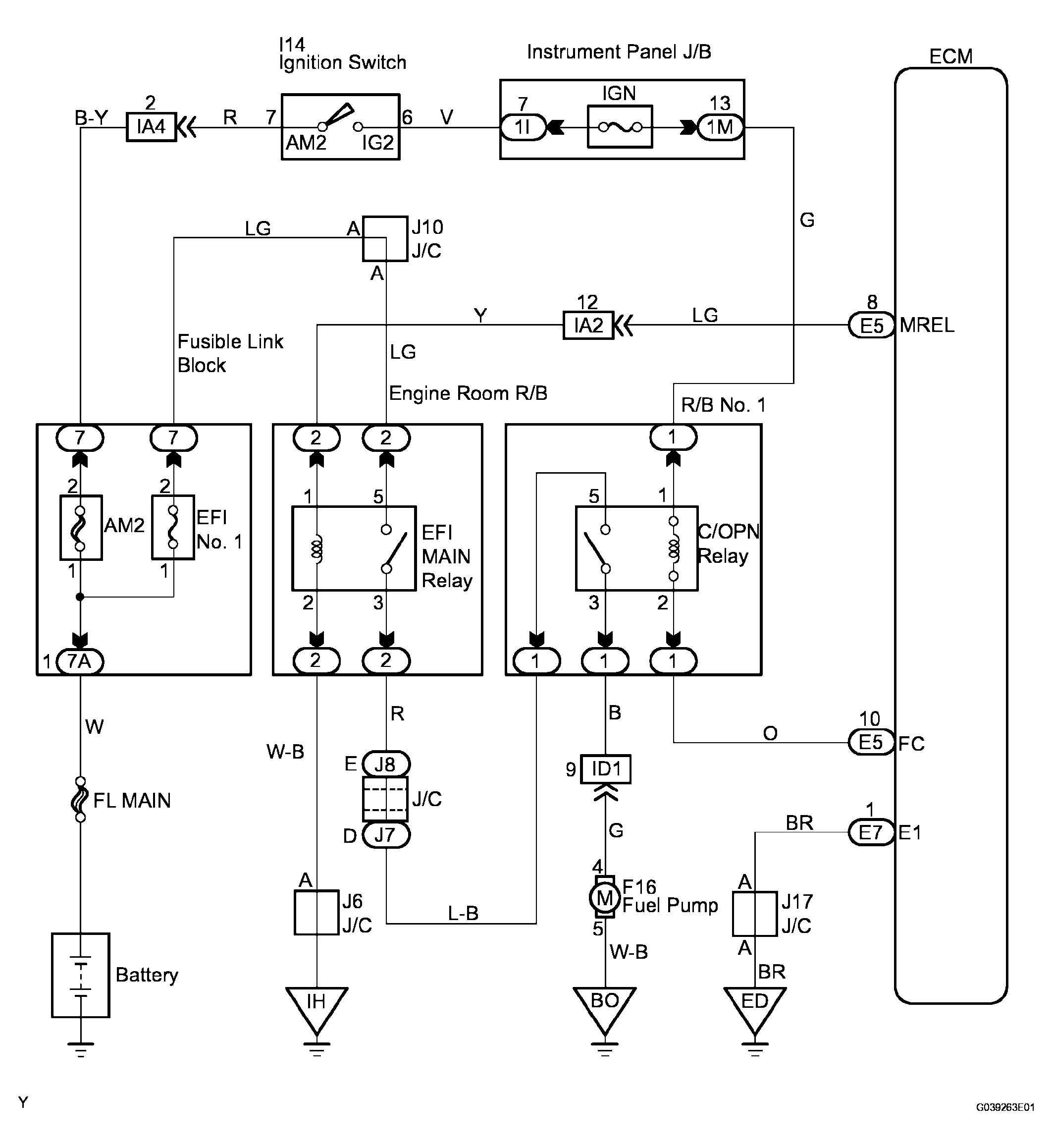

Fig 1: Identifying Fuel Pump Control Wiring Diagram

G04087458

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
