ECM Power Source Circuit: Wiring Diagram

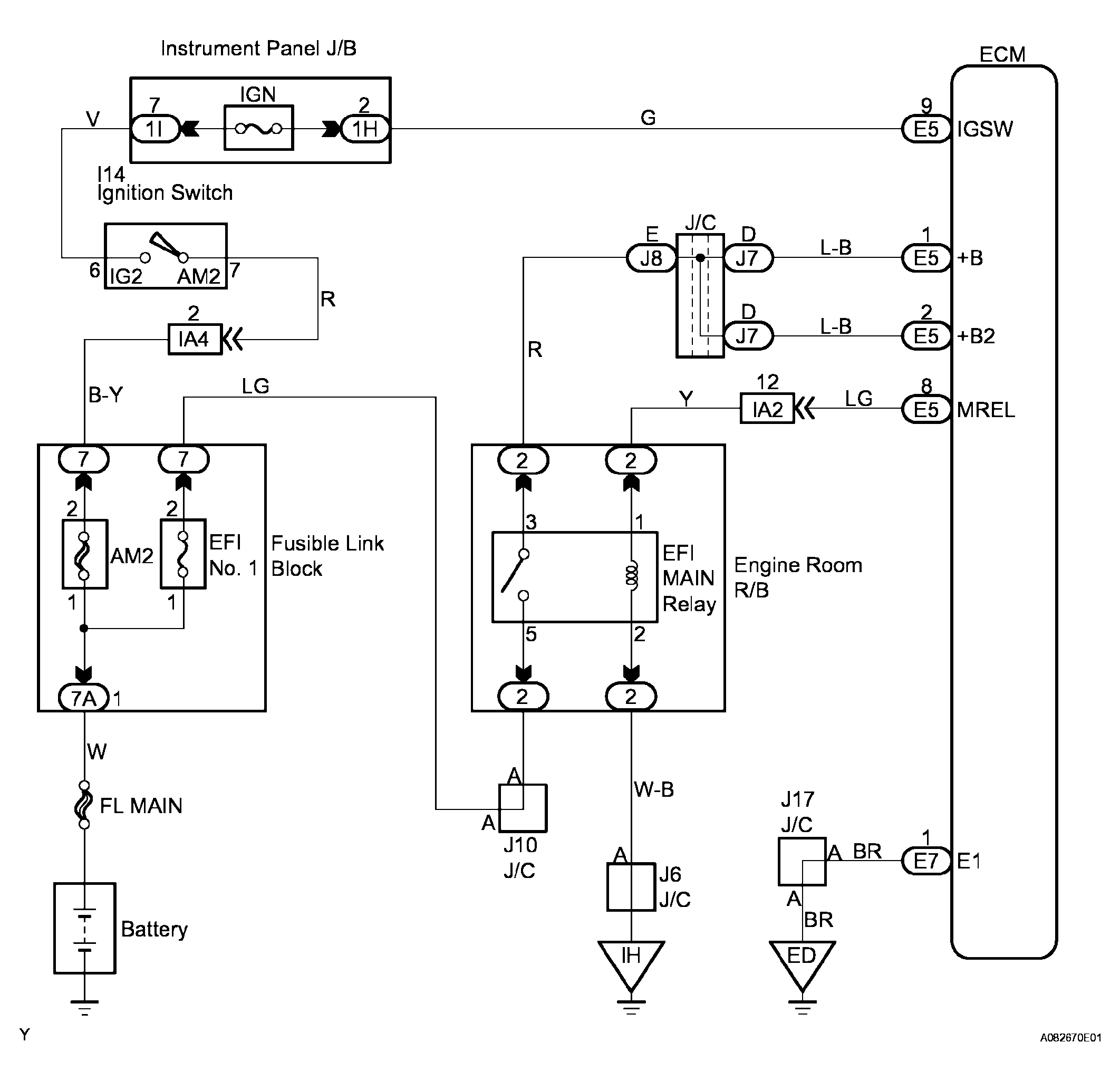

Fig 1: ECM Power Source Wiring Diagram

G04087447

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
