Intake Air Control Valve: Removal

  1. DRAIN ENGINE COOLANT (See  COOLANT  )
  2. REMOVE FR WIPER ARM LH (See  REMOVAL  )
  3. REMOVE FR WIPER ARM RH (See  REMOVAL  )
  4. REMOVE FRONT FENDER TO COWL SIDE SEAL LH
  5. REMOVE FRONT FENDER TO COWL SIDE SEAL RH
  6. REMOVE COWL TOP VENTILATOR LOUVER SUBASSEMBLY (See  REMOVAL  )
  7. REMOVE WINDSHIELD WIPER LINK ASSEMBLY (See  REMOVAL  )
  8. REMOVE COWL TOP PANEL SUB-ASSEMBLY OUTER (See  REMOVAL  )
  9. REMOVE V-BANK COVER SUB-ASSEMBLY (See  REMOVAL  )
  10. REMOVE AIR CLEANER CAP SUB-ASSEMBLY (See  REMOVAL  )
  11. REMOVE EMISSION CONTROL VALVE SET (See  REMOVAL  )
  12. REMOVE INTAKE AIR SURGE TANK (See  REMOVAL  )
  13. REMOVE INTAKE AIR CONTROL VALVE ASSEMBLY NO. 2
    1. Remove the 3 bolts and nut.
    2. Rotate the lever to the closed position as shown in the illustration and pull out the intake air control valve No.2.
    3. Remove the gasket from the intake air surge tank.

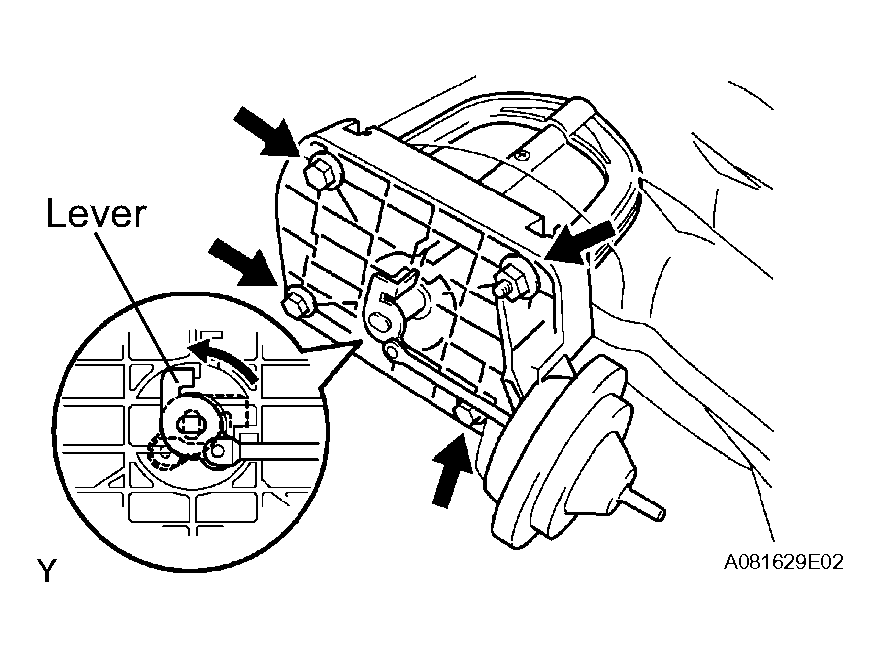

    Fig 1: Removing Intake Air Control Valve Assembly No. 2
    G04088140Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
