Intake Air Control Valve: Installation

  1. INSTALL INTAKE AIR CONTROL VALVE ASSEMBLY NO. 2
    1. Install a new gasket to the intake air surge tank.
    2. Install the intake air control valve No.2 with the 3 bolts and nut.

    Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

  2. INSTALL INTAKE AIR SURGE TANK (See  INSTALLATION  )
  3. INSTALL EMISSION CONTROL VALVE SET (See  INSTALLATION  )
  4. INSTALL AIR CLEANER CAP SUB-ASSEMBLY (See  INSTALLATION  )
  5. CHECK CONNECTION OF VACUUM HOSE (See  INSTALLATION  )
  6. ADD ENGINE COOLANT (See  COOLANT  )
  7. CHECK FOR ENGINE COOLANT LEAKS (See  COOLING SYSTEM  )
  8. INSTALL V-BANK COVER SUB-ASSEMBLY (See  INSTALLATION  )
  9. INSTALL COWL TOP PANEL SUB-ASSEMBLY OUTER (See  INSTALLATION  )
  10. INSTALL WINDSHIELD WIPER LINK ASSEMBLY (See  INSTALLATION  )
  11. INSTALL COWL TOP VENTILATOR LOUVER SUBASSEMBLY
  12. INSTALL FRONT FENDER TO COWL SIDE SEAL RH
  13. INSTALL FRONT FENDER TO COWL SIDE SEAL LH
  14. INSTALL FR WIPER ARM RH (See  INSTALLATION  )
  15. INSTALL FR WIPER ARM LH (See  INSTALLATION

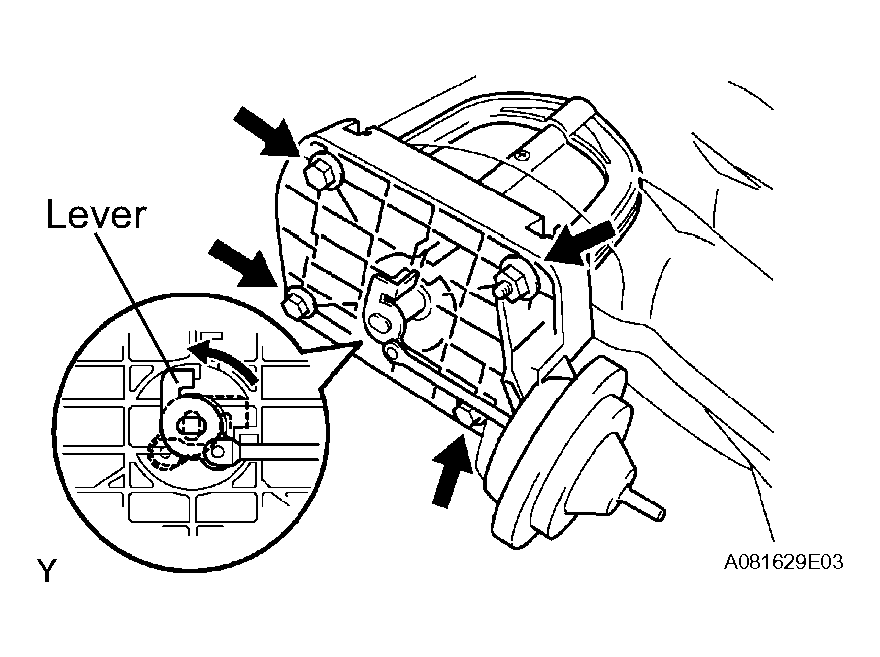

Fig 1: Installing Intake Air Control Valve Assembly No. 2
G04088146Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
