Intake Air Control Valve: Inspection

1. With 26.7 kPa (200 mmHg, 7.9 in.Hg) of vacuum applied to the actuator, check that the actuator rod moves.
2. One minute after applying the vacuum, check that the actuator rod does not return.
3. If the operation is not as specified, replace the intake air control valve assembly No.2.

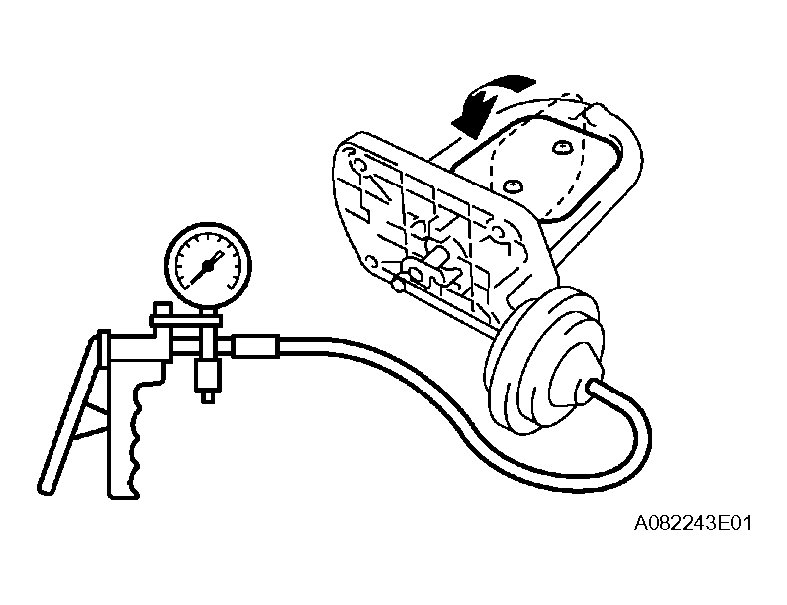

Fig 1: Inspecting Intake Air Control Valve Assembly No. 2

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Inspect actuator operation
   1. With 26.7 kPa (200 mmHg, 7.9 in.Hg) of vacuum applied to the actuator, check that the actuator rod moves.
   2. One minute after applying the vacuum, check that the actuator rod does not return.
   3. If the operation is not as specified, replace the intake air control valve No.3.

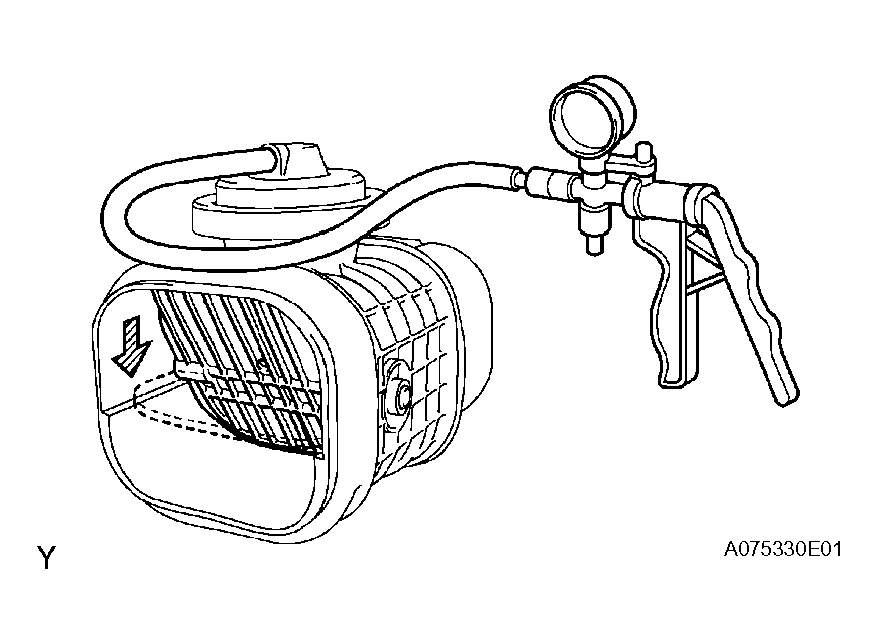

   Fig 2: Checking Actuator Operation

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Inspect VSV for continuity
   1. Using an ohmmeter, check for continuity between the terminals.

      Resistance:

      37 to 44 Ωat 20°C (68°F)

      If there is no continuity, replace the VSV.

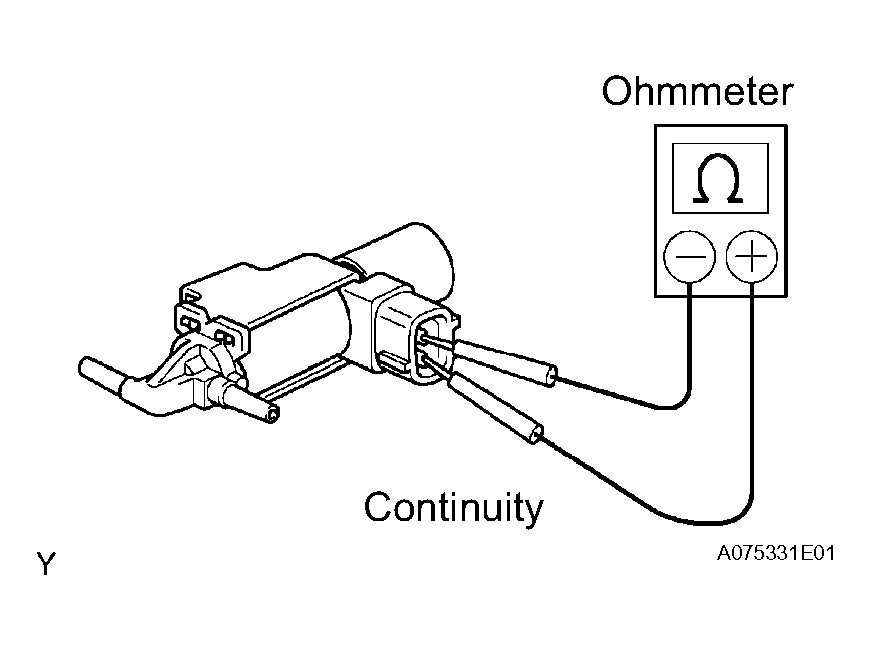

      Fig 3: Checking Continuity Between VSV Terminals

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. Inspect the VSV for ground.
      • Using an ohmmeter, check that there is no continuity between each terminal and the body.

      If there is continuity, replace the VSV.

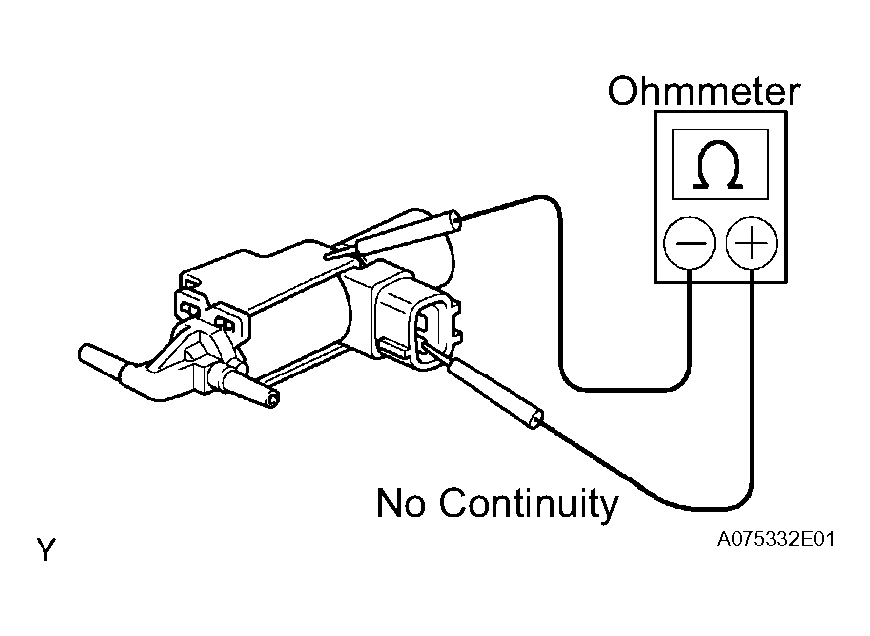

      Fig 4: Checking Continuity Between VSV Terminals And Body

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   3. Inspect the VSV operation.
      • Check that air flows from port E to the filter.
      • Apply battery voltage across the terminals.
      • Check that air flows from port E to F.

If operation is not as specified, replace the VSV.

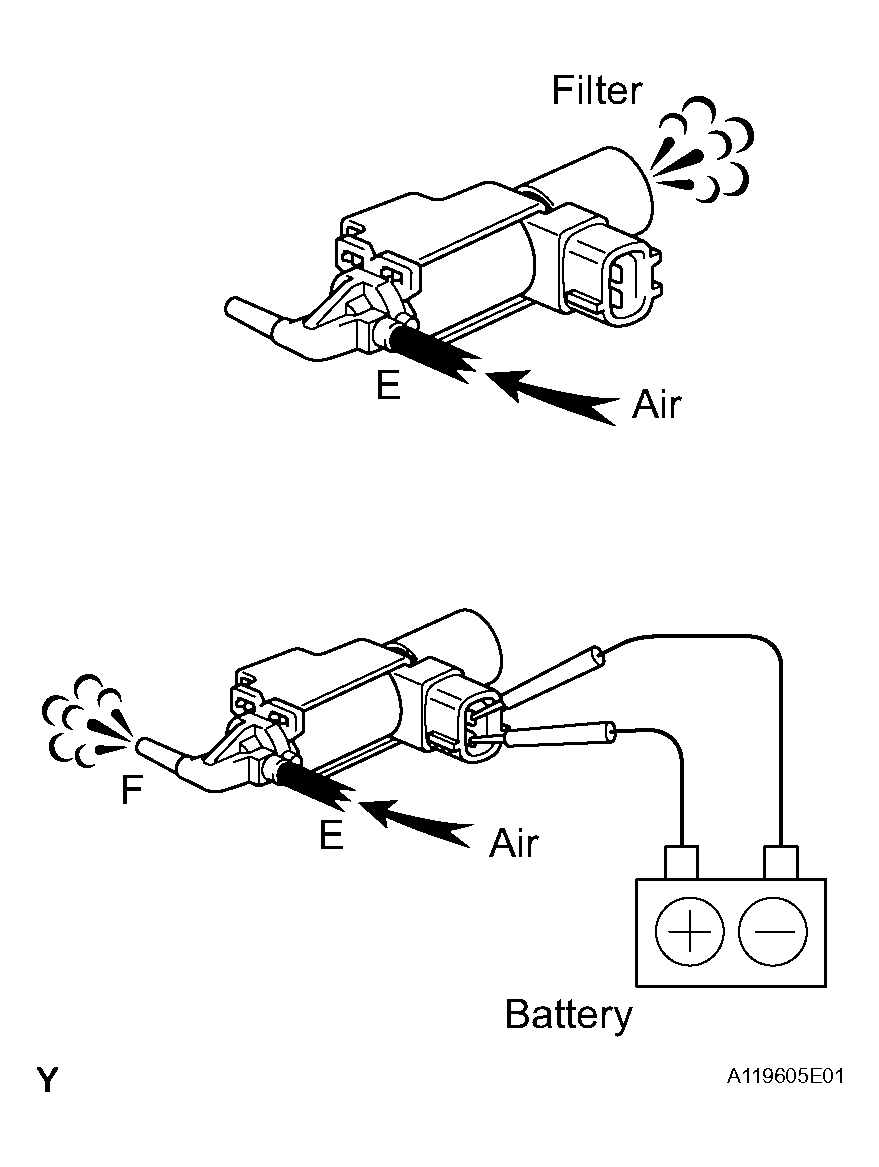

Fig 5: Inspecting VSV Operation

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
