Ignition Switch: Removal

  1. REMOVE FRONT DOOR SCUFF PLATE LH (See  REMOVAL  )
  2. REMOVE INSTRUMENT PANEL FINISH PANEL SUBASSEMBLY LOWER (See  REMOVAL  )
  3. REMOVE IGNITION OR STARTER SWITCH ASSEMBLY
    1. Disconnect the ignition switch connector and unlock warning switch connector.
    2. Remove the clamp.
    3. Remove the 2 screws and ignition switch.

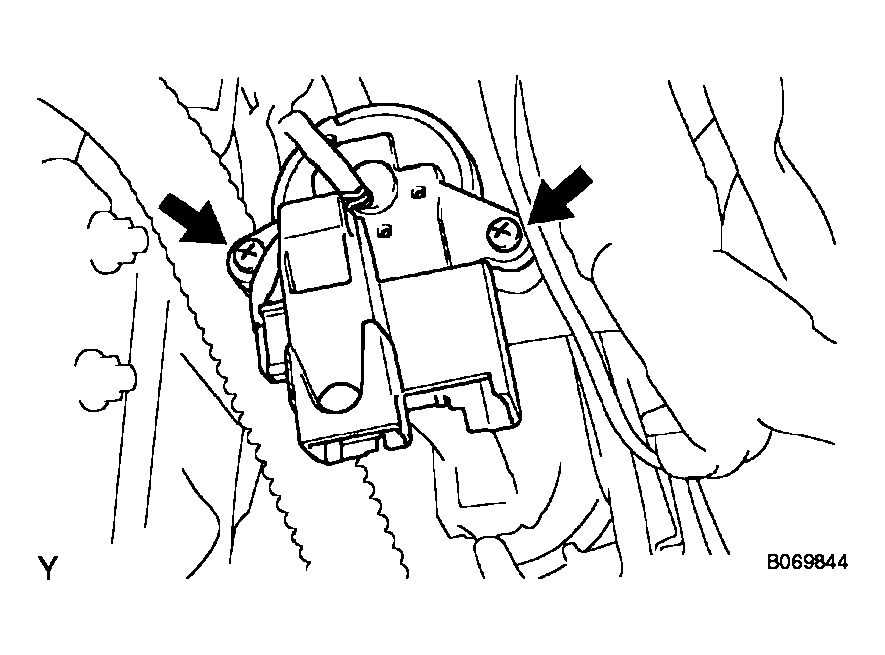

Fig 1: Removing Ignition Switch Assembly
G04088318Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
