Charging (3MZ-FE): Generator: Removal

REMOVE GENERATOR ASSEMBLY

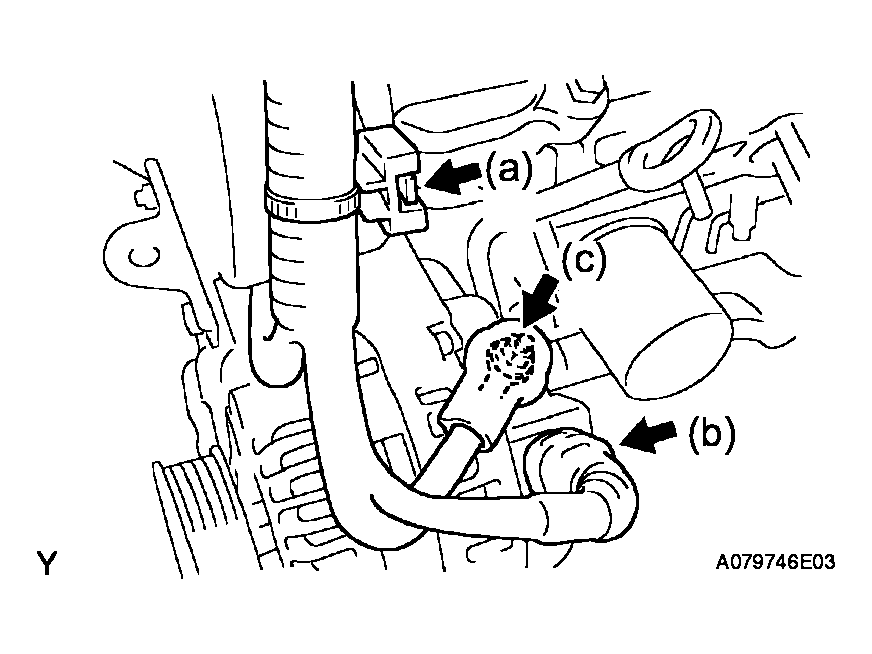

1. Remove the wire harness clamp.
2. Disconnect the generator connector.
3. Open the terminal cap, remove the nut and disconnect the generator wire.

  Fig 1: Disconnecting Generator Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Loosen bolts A and B.

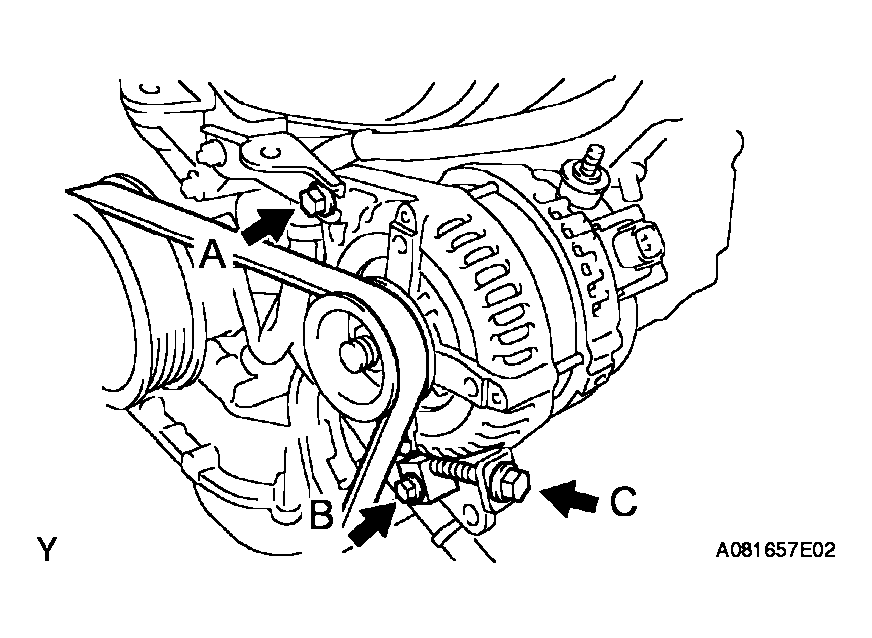

5. Loosen bolt C to lessen the tension of the V belt No. 1.

  Fig 2: Loosening Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

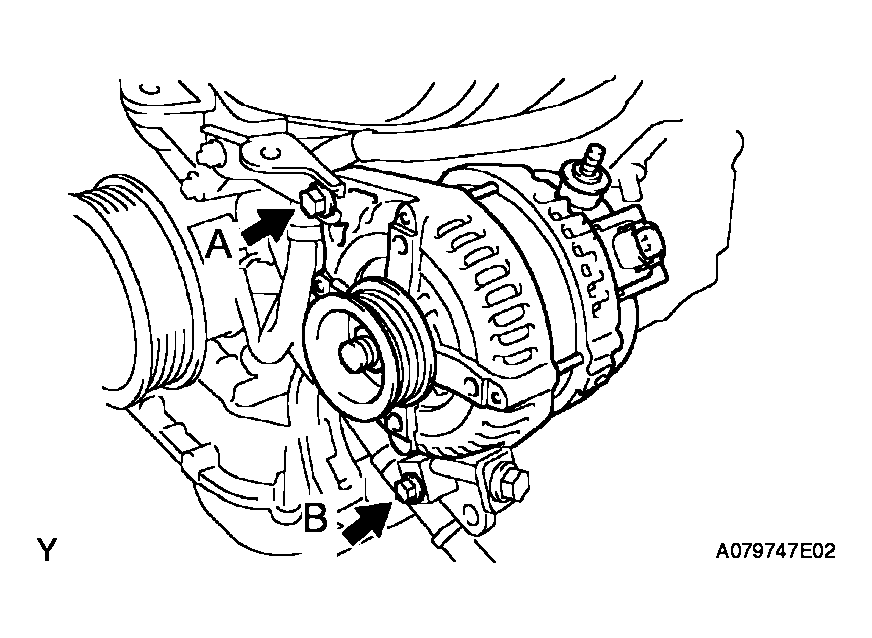

6. Remove bolts A and B, and then remove the generator.
Fig 3: Removing Generator
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
