Rear Power Point Socket: Removal

  1. REMOVE REAR DOOR SCUFF PLATE LH (See  REMOVAL  )
  2. REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP LH
  3. REMOVE DECK BOARD SUB-ASSEMBLY (See  REMOVAL  )
  4. REMOVE TONNEAU COVER ASSEMBLY
  5. REMOVE JACK CARRIER SUPPORT
  6. REMOVE JACK ASSEMBLY
  7. REMOVE JACK CARRIER ASSEMBLY
  8. REMOVE DECK FLOOR BOX FRONT (See  REMOVAL  )
  9. REMOVE DECK FLOOR BOX REAR (See  REMOVAL  )
  10. REMOVE NO.2 DECK BOARD SUB-ASSEMBLY (See  REMOVAL  )
  11. REMOVE NO.3 DECK BOARD SUB-ASSEMBLY (See  REMOVAL  )
  12. REMOVE BACK DOOR WEATHERSTRIP
  13. REMOVE DECK SIDE TRIM BOX LH (See  REMOVAL  )
  14. REMOVE DECK SIDE TRIM BOX RH (See  REMOVAL  )
  15. REMOVE REAR FLOOR FINISH PLATE (See  REMOVAL  )
  16. REMOVE REAR FLOOR FINISH SIDE PLATE LH (See REMOVAL  )
  17. REMOVE DECK SIDE TRIM COVER LH (See  REMOVAL  )
  18. SEPARATE REAR NO. 1 SEAT OUTER BELT ASSEMBLY LH
    1. Remove the bolt and separate the rear No. 1 seat outer belt assembly LH.
  19. REMOVE REAR SEAT SIDE COVER LH (See  REMOVAL  )
  20. REMOVE ROPE HOOK (See  REMOVAL  )
  21. REMOVE DECK TRIM SIDE PANEL ASSEMBLY LH (See  REMOVAL  )
  22. REMOVE NO.2 ROOM LIGHT ASSEMBLY (See  REMOVAL  )
  23. REMOVE ROOF SIDE GARNISH ASSEMBLY INNER LH (See  REMOVAL  )
  24. REMOVE REAR POWER POINT SOCKET
    1. Turn the rear power point socket in counterclockwise as shown in the illustration and disengage the claw between the rear power point socket and the power point socket cover.
    2. Push out the rear power point socket.
      Fig 1: Disengaging Claw Between Rear Power Point Socket And Power Point Socket Cover
      G04093158Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Align the rear power point socket with the notch on the power point socket cover, and remove the rear power point socket.

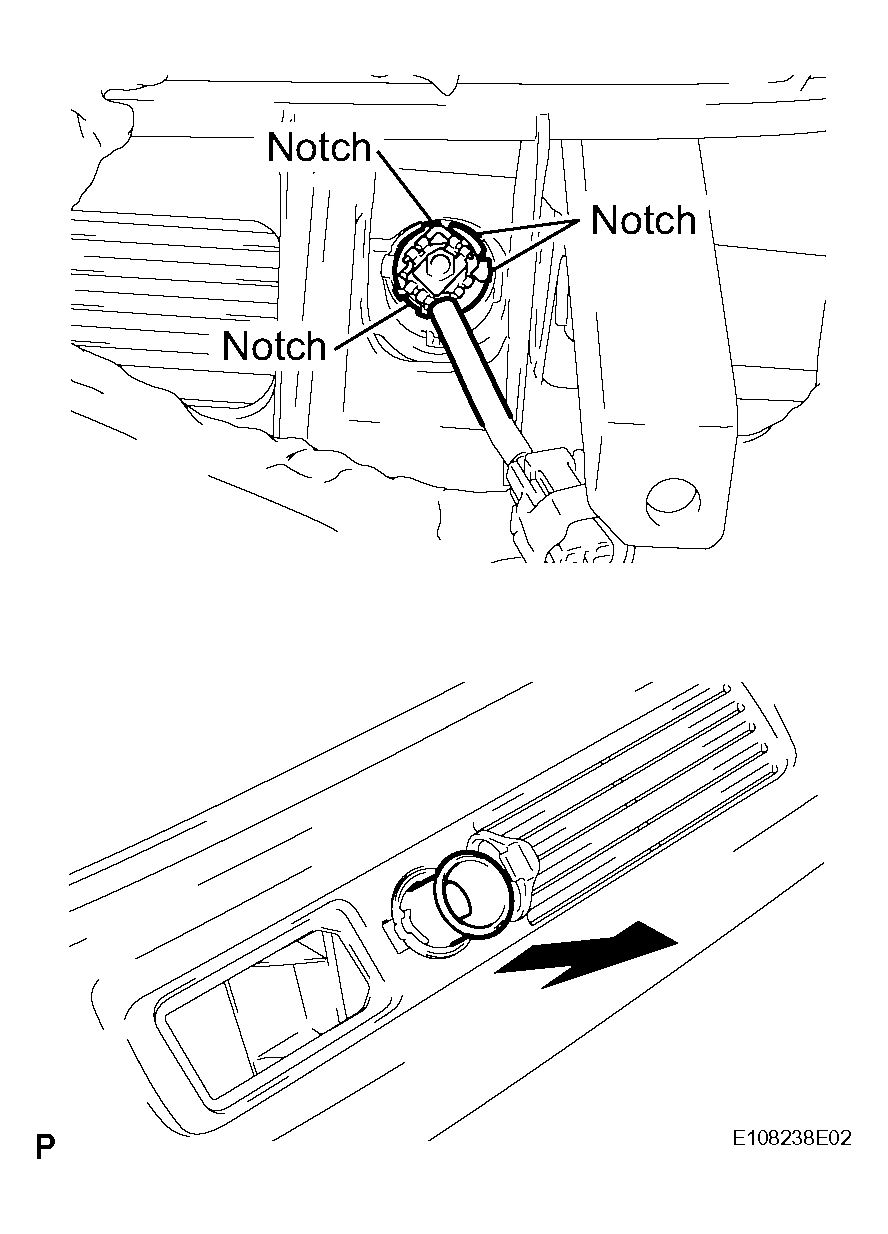

    Fig 2: Removing Rear Power Point Socket
    G04093159Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  25. REMOVE POWER OUTLET SOCKET COVER REAR
    1. Disengage the 2 claws, and remove the power outlet socket cover rear.
    Fig 3: Removing Power Outlet Socket Rear Cover
    G04093160Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
