Cigarette Lighter: Removal

REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY (See REMOVAL )
REMOVE CONSOLE PANEL UPPER FRONT (See REMOVAL )
REMOVE INSTRUMENT PANEL FINISH PANEL LOWER (See REMOVAL )
REMOVE CIGARETTE LIGHTER COVER
1. Disengage the 2 claws, and remove the cigarette lighter cover.
Fig 1: Locating Claws On Cigarette Lighter Cover
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE CIGARETTE LIGHTER ASSEMBLY
1. Remove the cigarette lighter knob and element assembly.
2. Turn the socket in counterclockwise as shown in the illustration.
3. Disengage the claw between the socket and the cigarette lighter bezel stay, and push out the socket.

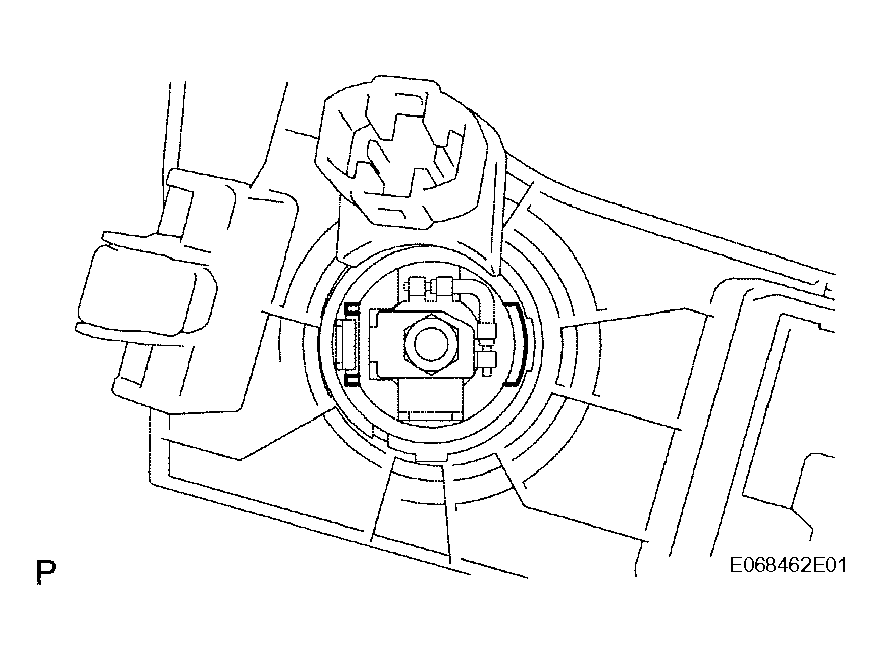

  Fig 2: Disengaging Claw Between Socket And Cigarette Lighter Bezel Stay
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Align the socket with the notch on the cigarette lighter bezel stay, and remove the cigarette lighter assembly.
Fig 3: Aligning Socket With Notch On Cigarette Lighter Bezel Stay
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
