Rear Wiper and Washer: Notes

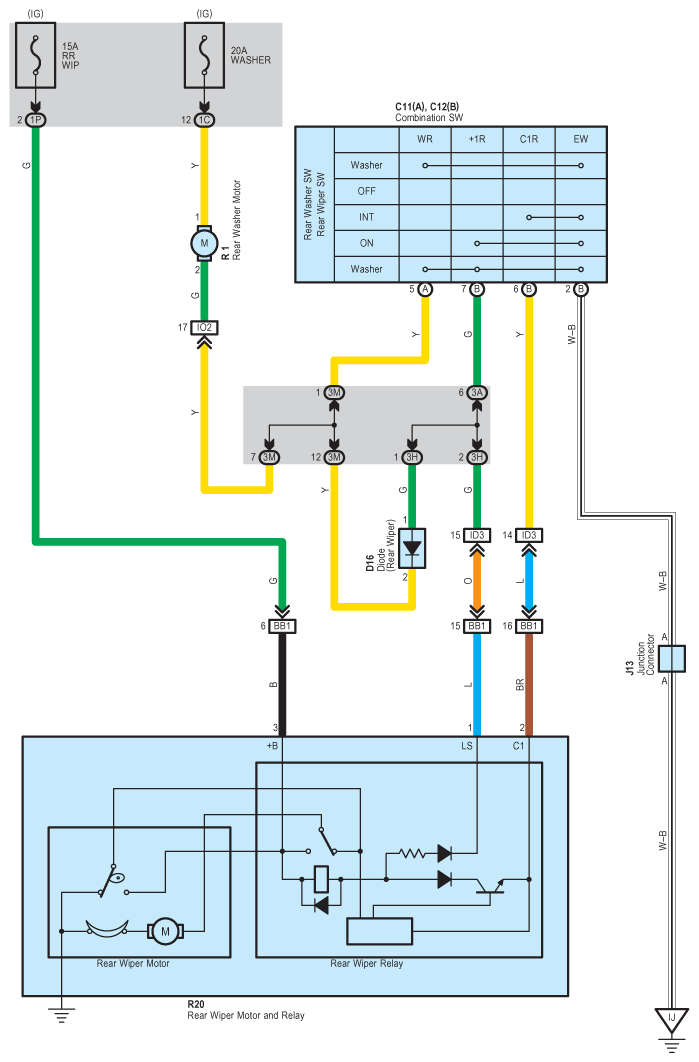

Fig 1: Rear Wiper And Washer - Wiring Diagram

G08929109

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
