Power Seat for Driver's Seat without Memory: Notes

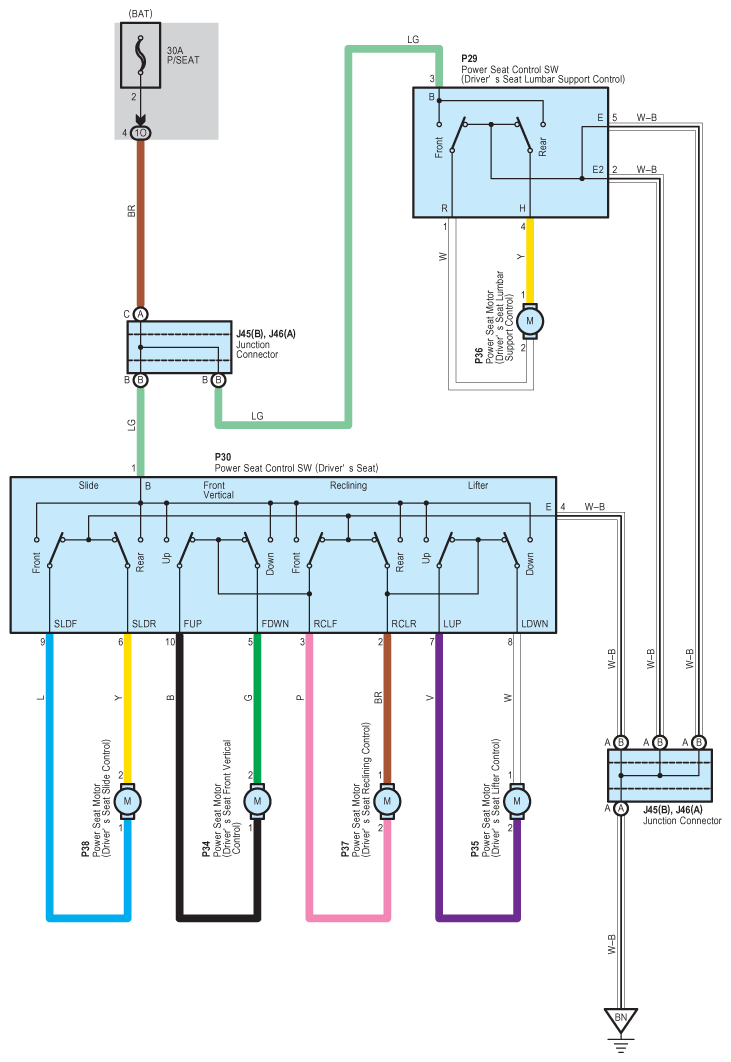

Fig 1: Power Seat For Driver's Seat Without Memory - Wiring Diagram

G08929129

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
