Fuel Lid Opener: Notes

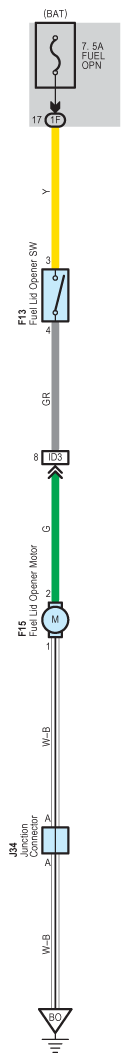

Fig 1: Fuel Lid Opener - Wiring Diagram

G08929135

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
