Back Door Opener without Power Back Door: Notes

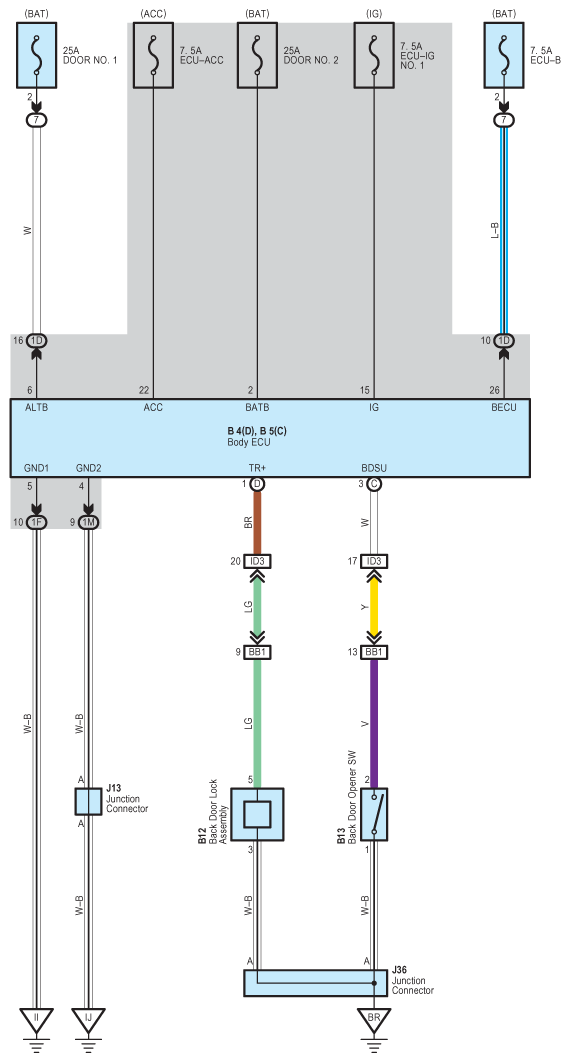

Fig 1: Back Door Opener Without Power Back Door - Wiring Diagram

G08929102

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
