Front Axle Hub: Components

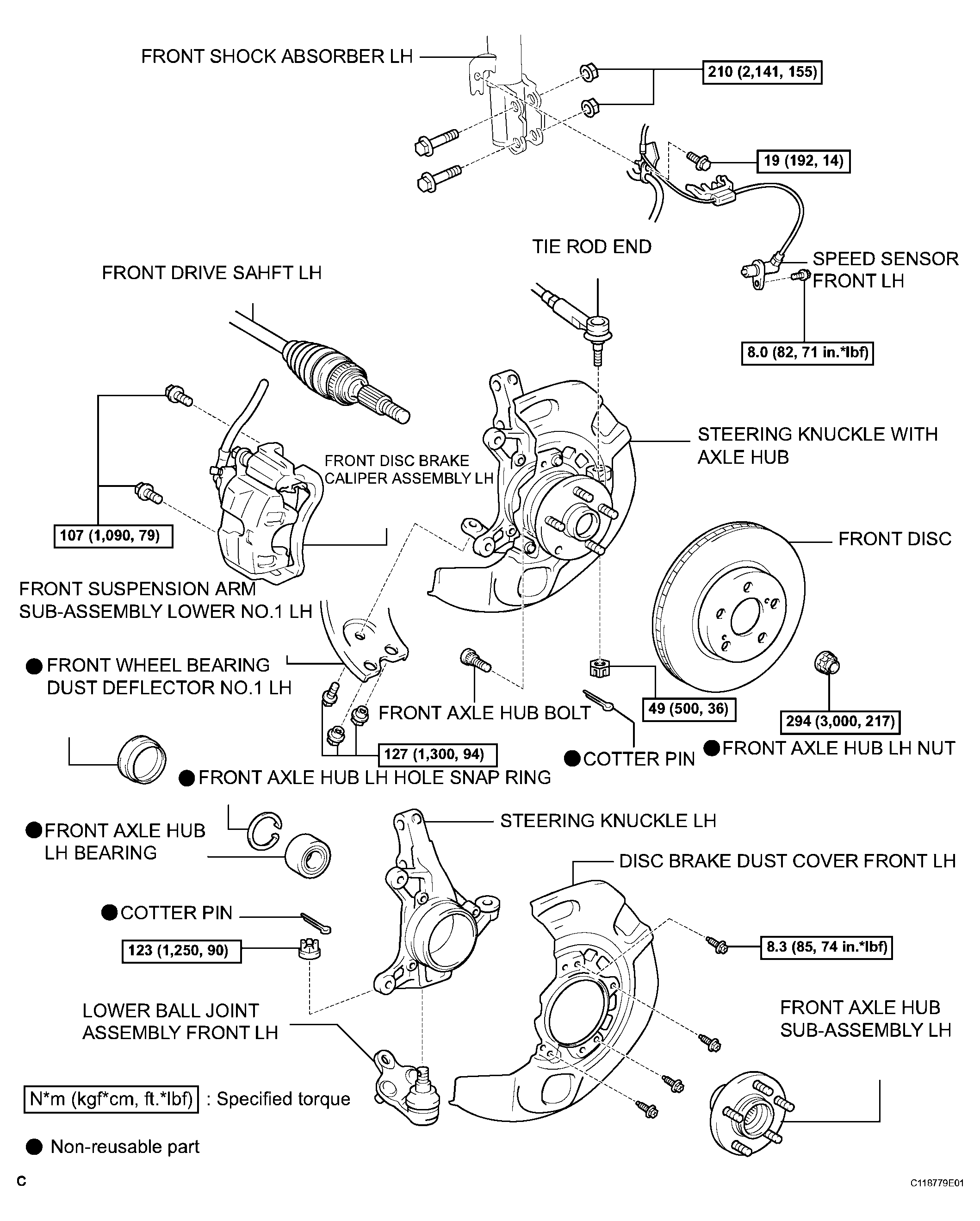

Fig 1: Exploded View Of Front Axle Hub Components With Torque Specifications

G04090032

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
