Front Axle Hub Bolt: Replacement

HINT:

Replace the RH side using the same procedures as for the LH side.

1. REMOVE FRONT WHEEL
2. SEPARATE FRONT DISC BRAKE CALIPER ASSEMBLY LH (See  ON-VEHICLE INSPECTION   )
3. REMOVE FRONT DISC
4. REMOVE FRONT AXLE LH HUB BOLT
   1. Temporarily install the 2 nuts and washers to the front axle LH hub bolt as shown in the illustration.
   2. Using SST(s) and a screwdriver or an equivalent to hold the front axle, remove the front axle LH hub bolt.

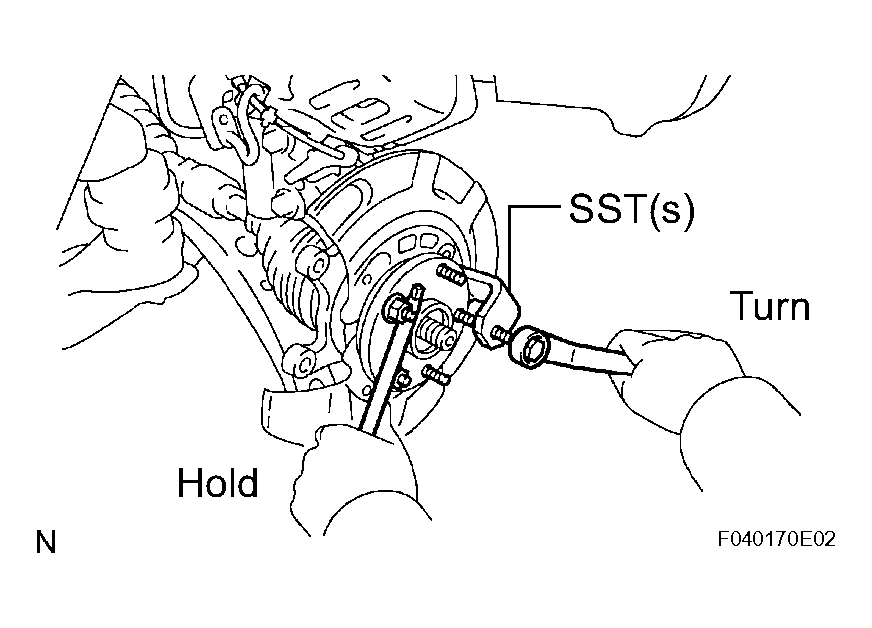

      Fig 1: Removing Front Axle LH Hub Bolt

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      SST 09628-10011

5. INSTALL FRONT AXLE LH HUB BOLT

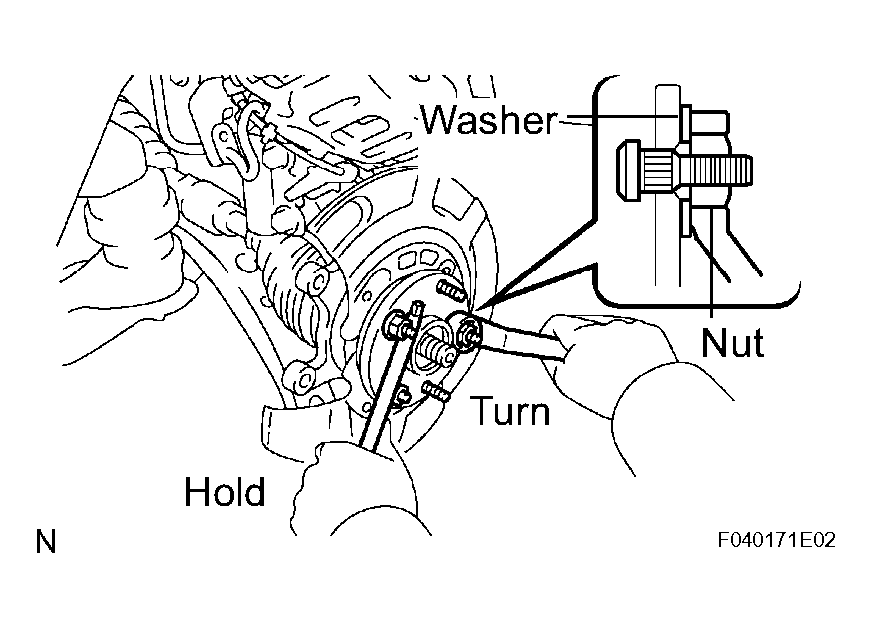

   1. Install a washer and nut to a new front axle LH hub bolt as shown in the illustration.
   2. Using a screwdriver to hold the front axle, install the hub bolt by torquing the nut.
6. INSTALL FRONT DISC
7. INSTALL FRONT DISC BRAKE CALIPER ASSEMBLY LH (See  INSTALLATION   )
8. INSTALL FRONT WHEEL
   Fig 2: Installing Front Disc Brake Caliper Assembly LH

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Torque: 103 N*m (1,050 kgf*cm, 76 ft.*lbf)
