Slip Indicator Light Circuit: Wiring Diagram

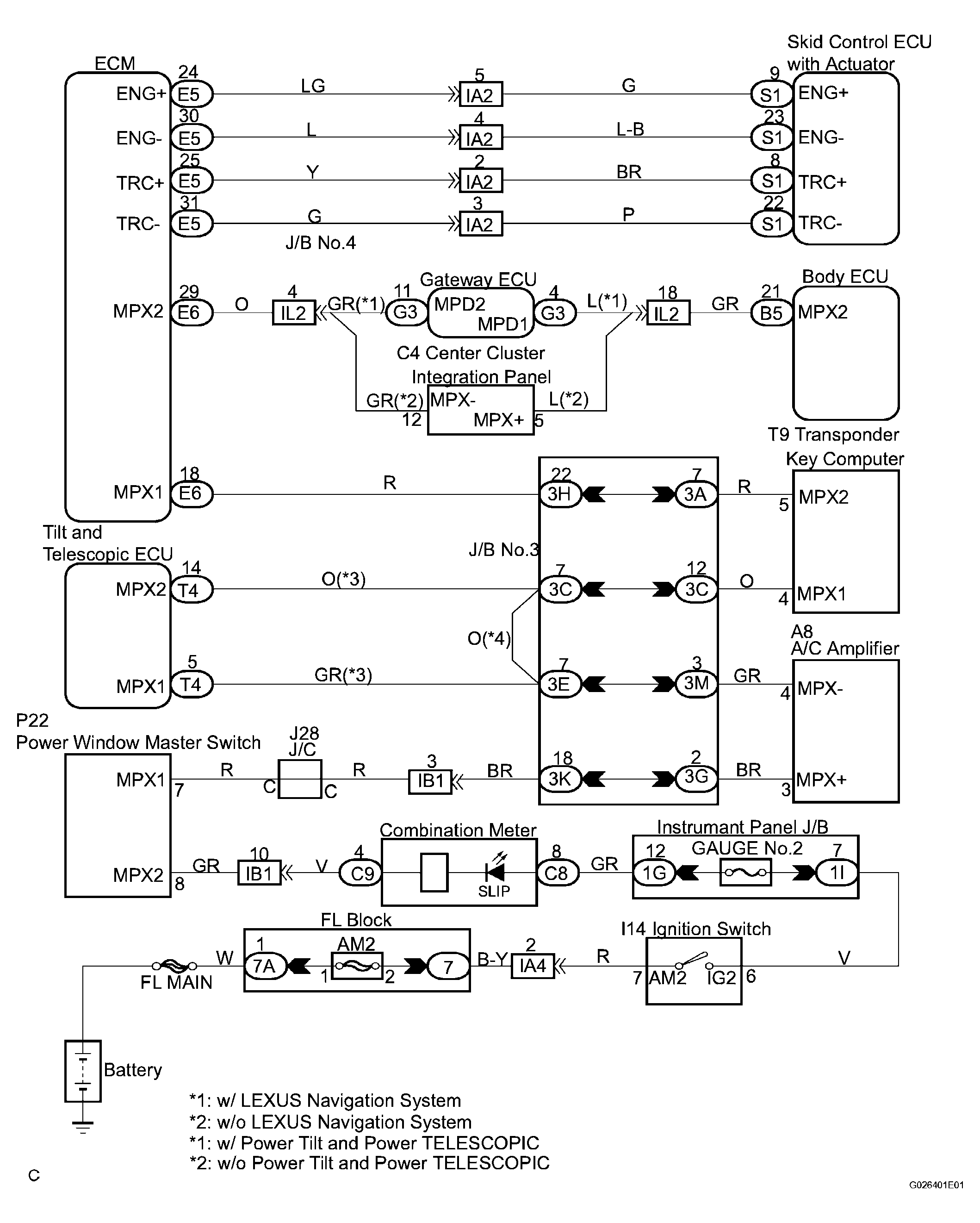

Fig 1: Identifying Slip Indicator Light Wiring Diagram

G04090625

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
