Brake Actuator: Installation

INSTALL BRAKE ACTUATOR
1. Install the brake actuator assembly with the 2 nuts.
  Torque: 5.4 N*m (55 kgf*cm, 48 in.*lbf)
INSTALL BRAKE ACTUATOR WITH BRACKET

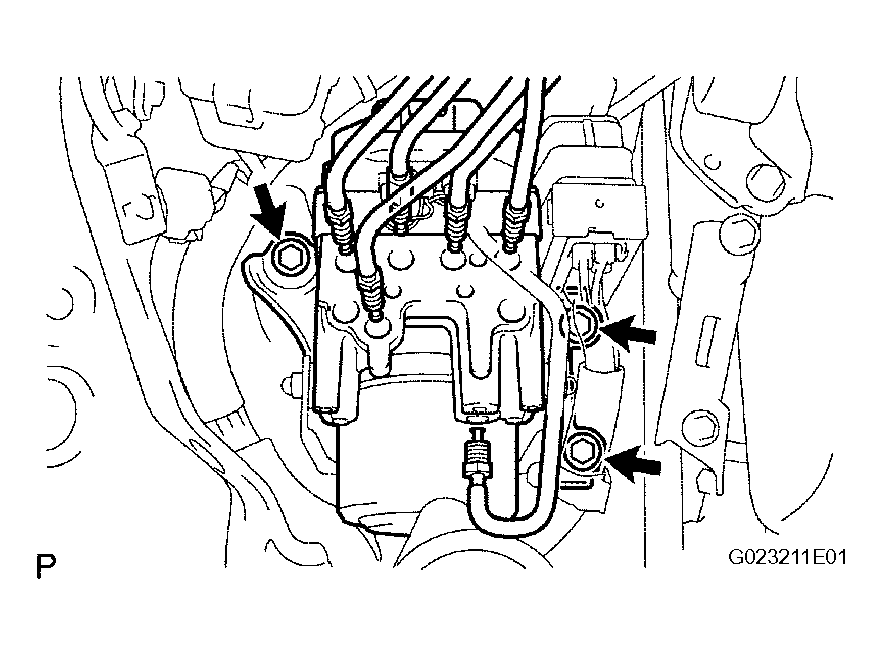

1. Install the actuator with bracket with the 3 bolts.
  Torque: 19 N*m (194 kgf*cm, 14 ft.*lbf)

  NOTE: Be careful not to damage the brake tubes and wire harness.
2. Connect the actuator connector.

  Fig 1: Installing Actuator With Bracket With Bolts
  Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

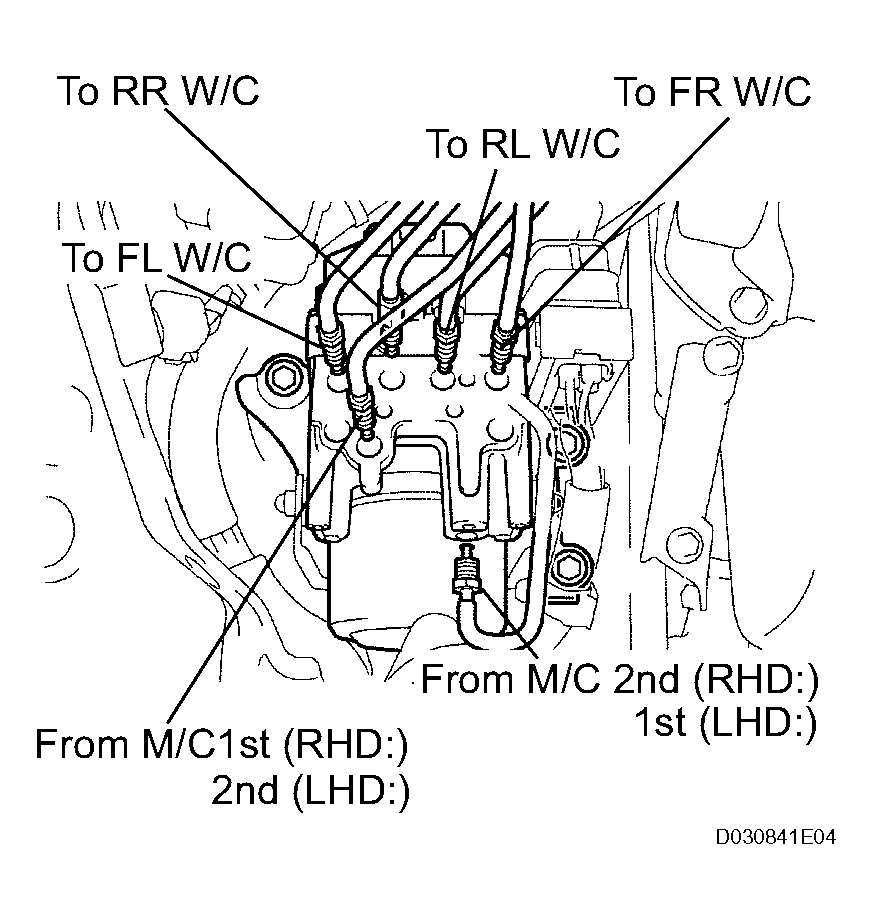

3. Using SST, connect each brake tube to correct positions of the actuator with bracket, as shown in the illustration.
  Torque: 15 N*m (155 kgf*cm, 11 ft.*lbf)
FILL RESERVOIR WITH BRAKE FLUID
HINT:

See BRAKE FLUID .
BLEED BRAKE MASTER CYLINDER SUBASSEMBLY
SST 09023-00101

HINT:

See BRAKE FLUID .
BLEED BRAKE LINE
HINT:

See BRAKE FLUID .
CHECK BRAKE FLUID LEAKAGE
CHECK FLUID LEVEL IN RESERVOIR
HINT:

See BRAKE FLUID .
CONNECT BATTERY NEGATIVE TERMINAL
PERFORM INITIALIZATION
HINT:

See PRECAUTION .
PERFORM YAW RATE SENSOR ZERO POINT CALIBRATION
HINT:

See CALIBRATION .
CHECK BRAKE ACTUATOR WITH INTELLIGENT TESTER
HINT:

See BRAKE ACTUATOR .
