Driver Side Power Window Motor Circuit: Wiring Diagram

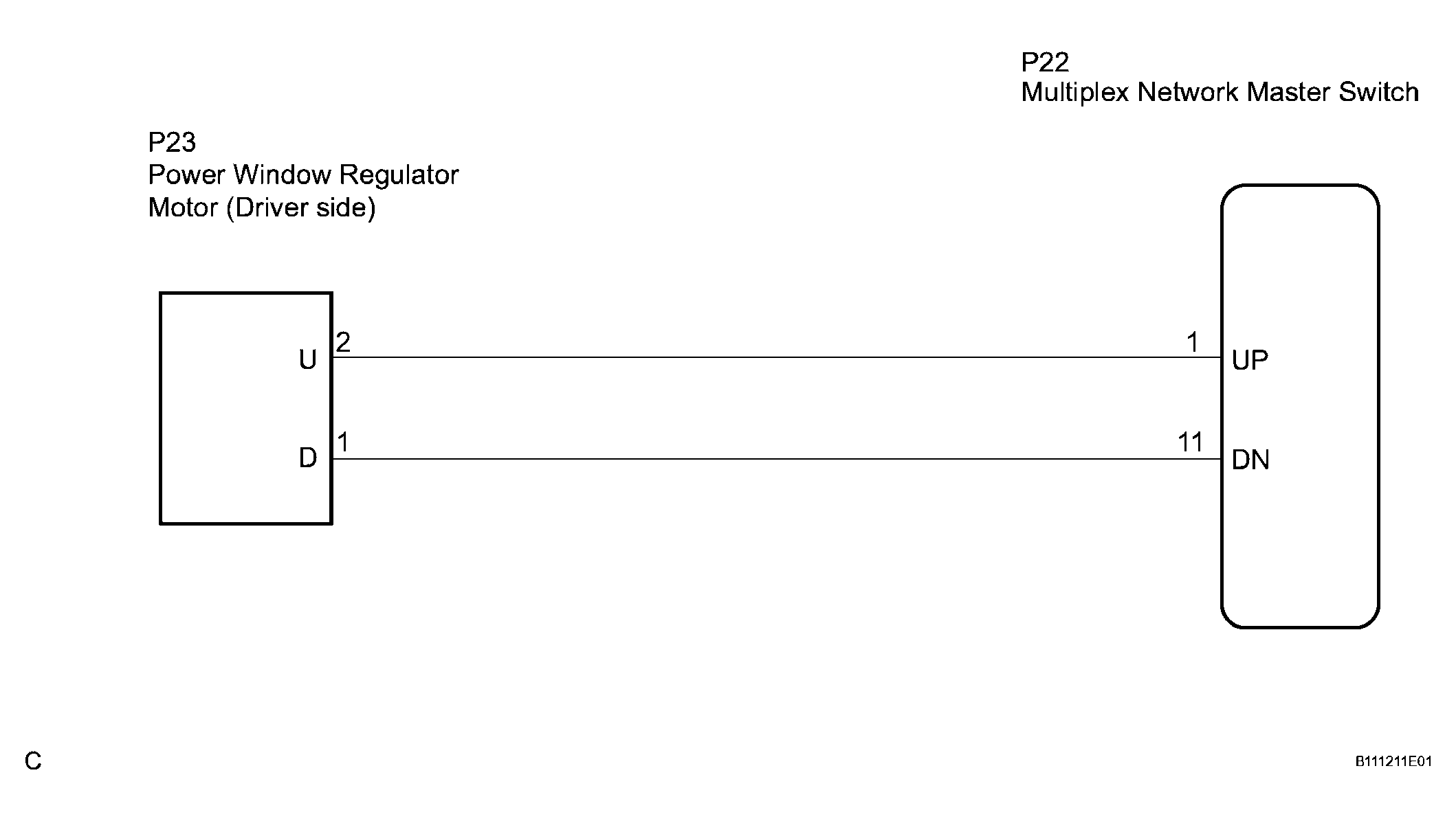

Fig 1: Driver Side Power Window Motor Circuit - Wiring Diagram

G04093186

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
