Door Control Receiver: Components

Fig 1: Exploded View Of Door Control Receiver (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

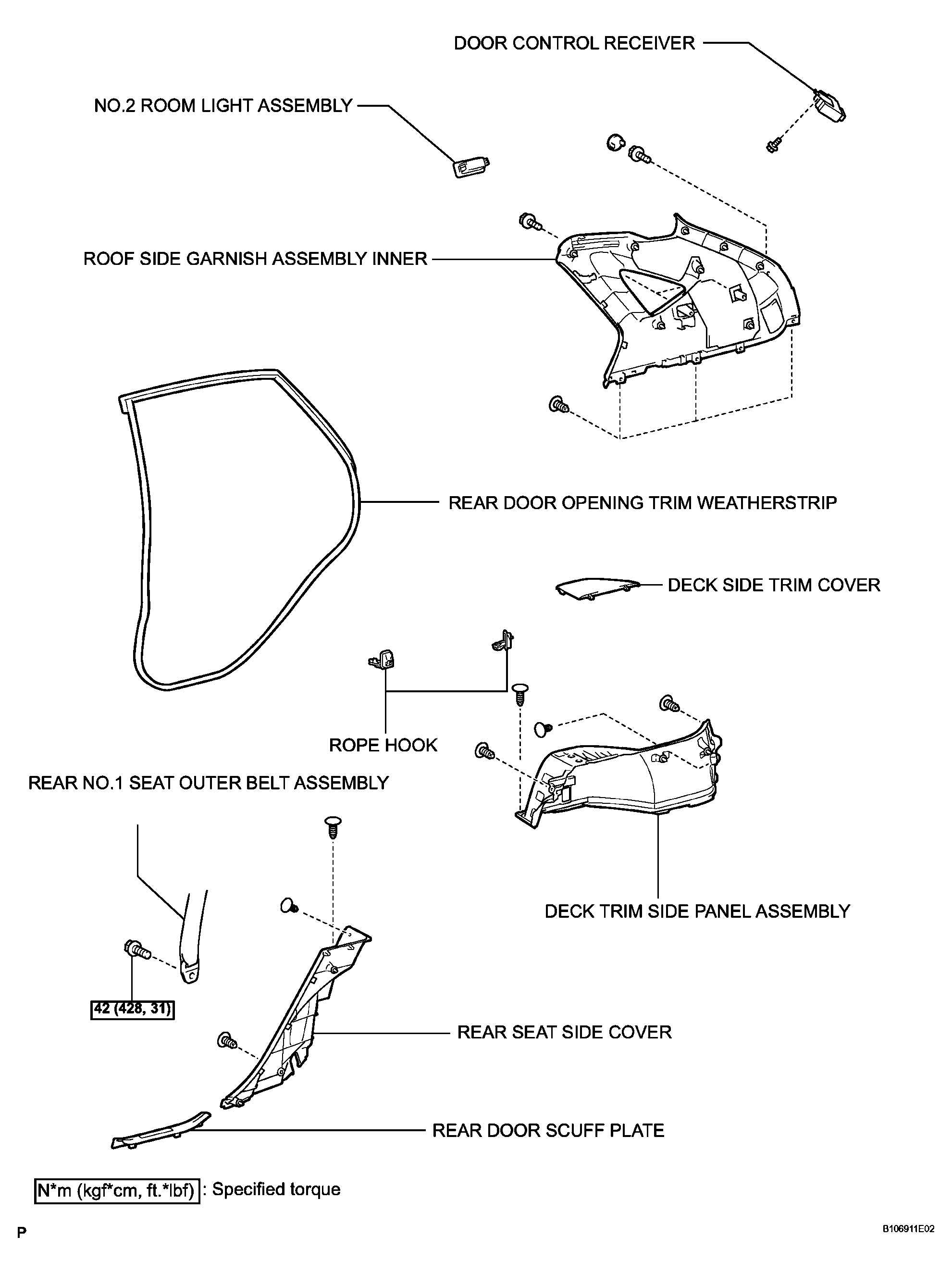

Fig 2: Exploded View Of Door Control Receiver With Torque Specifications (2 Of 2)
