System Diagram

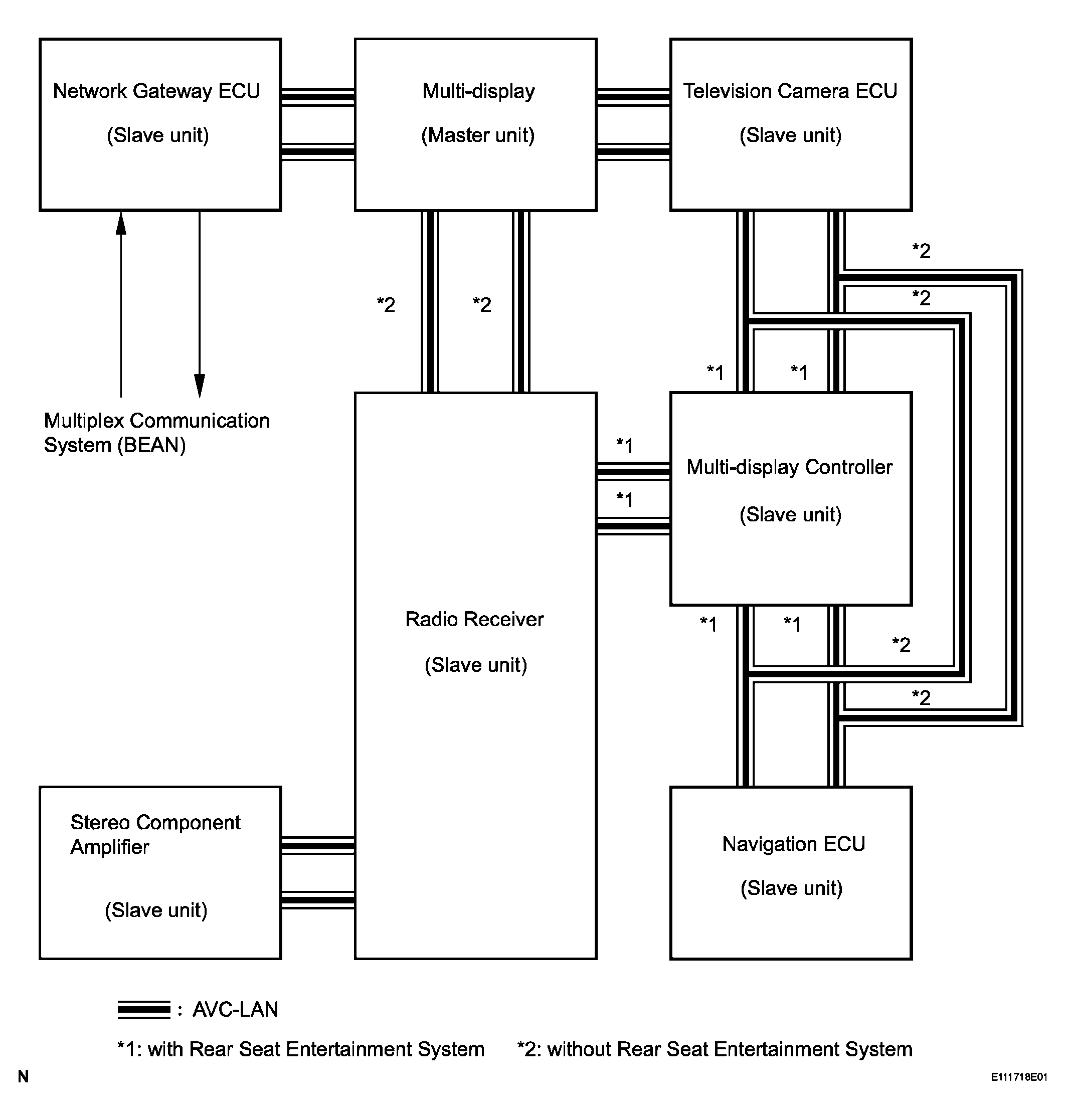

Fig 1: Navigation System - System Diagram (1 Of 2)
G04092851Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

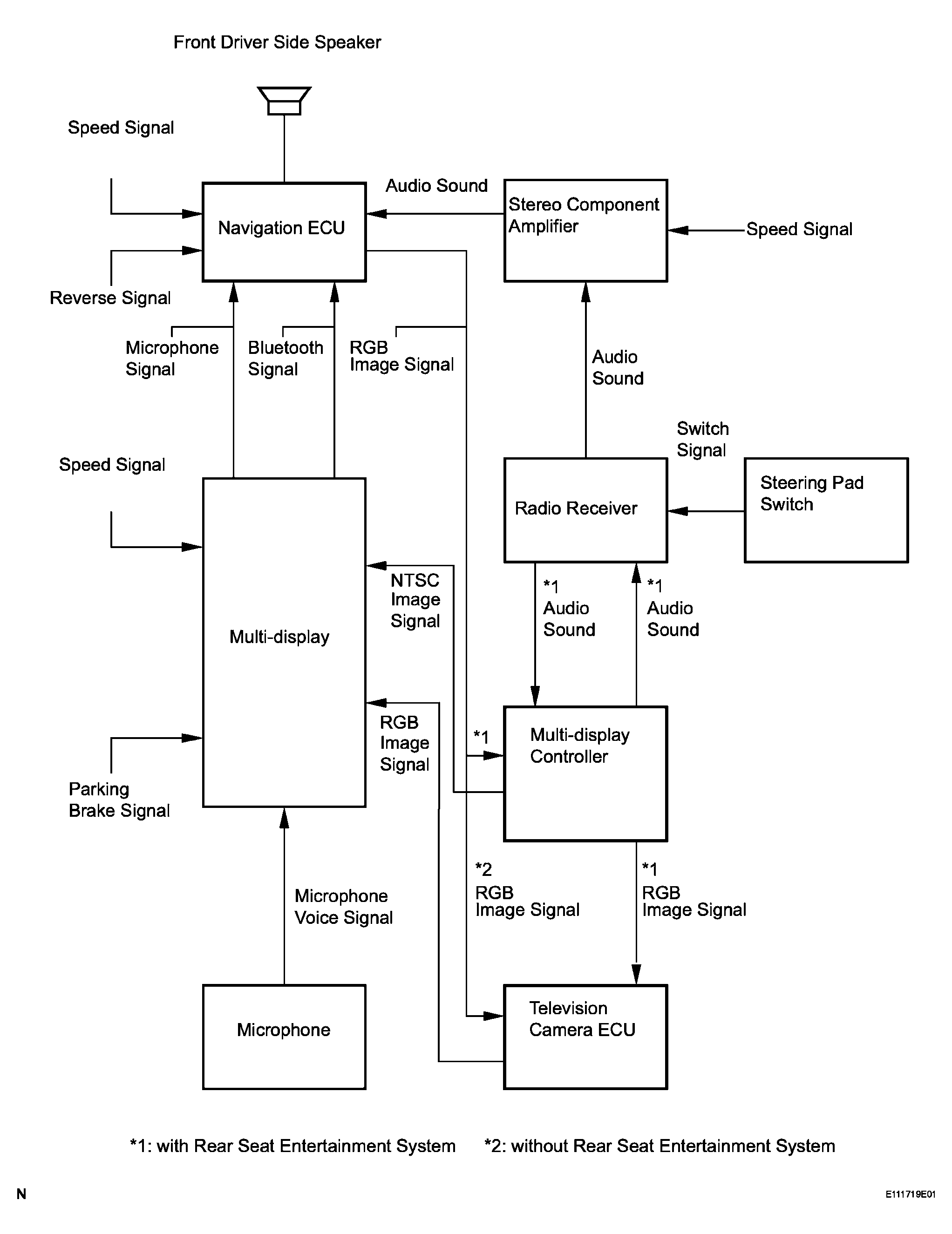

Fig 2: Navigation System - System Diagram (2 Of 2)
G04092852Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
