Navigation ECU Power Source Circuit: Wiring Diagram

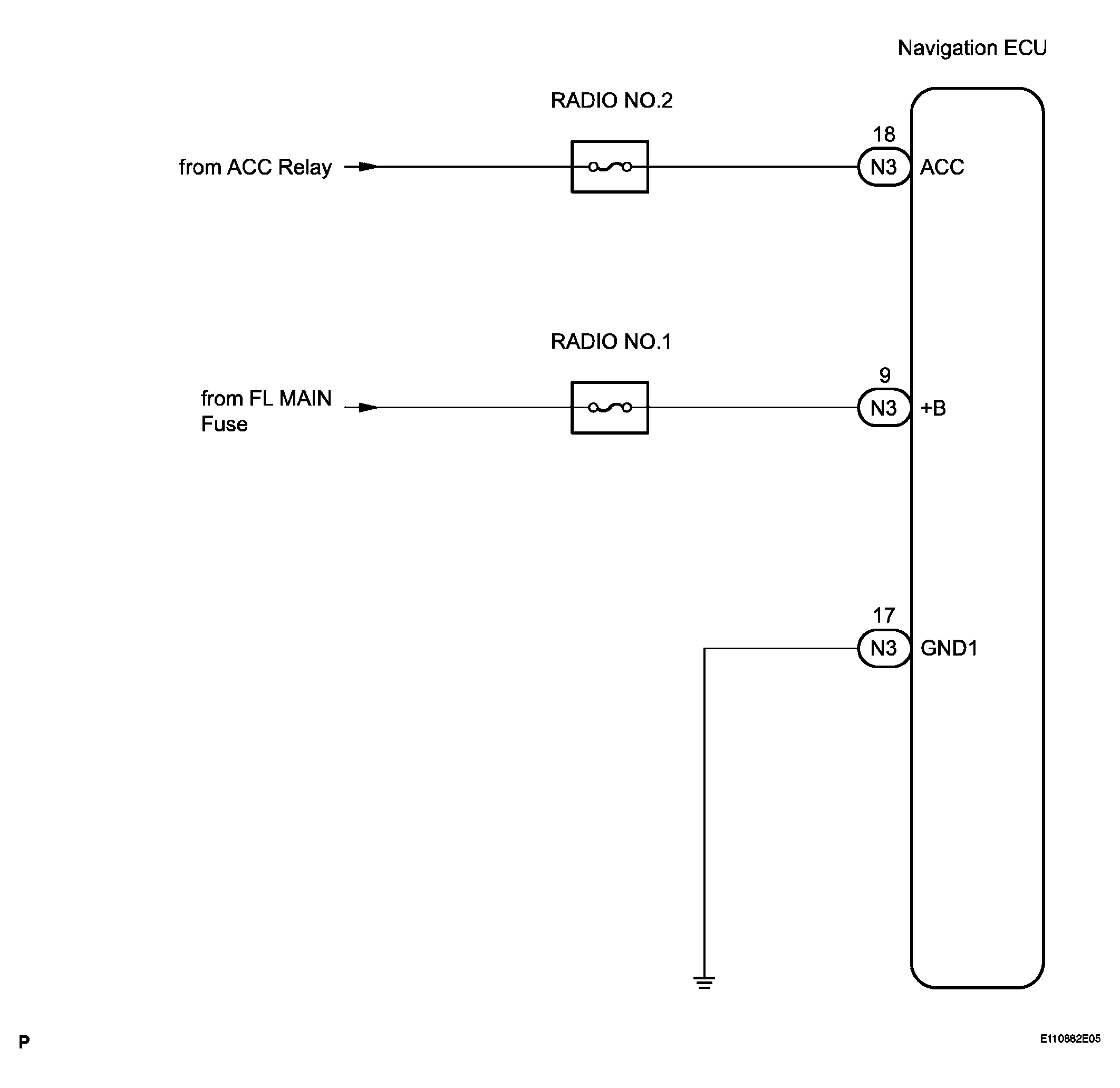

Fig 1: Navigation ECU Power Source Circuit - Wiring Diagram

G04093067

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
