Multi-display Power Source Circuit: Wiring Diagram

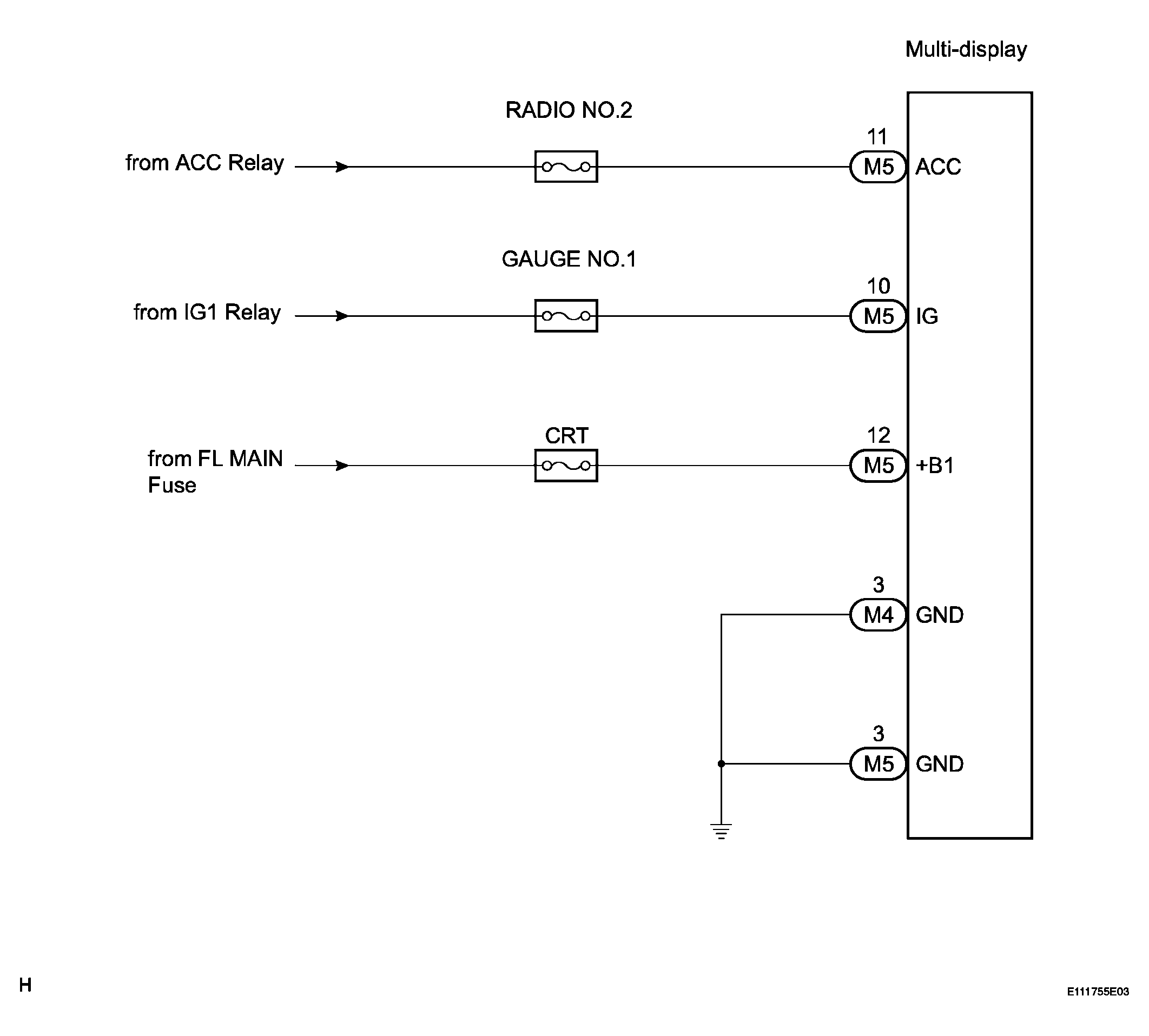

Fig 1: Multi-display Power Source Circuit - Wiring Diagram

G04093065

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
