Inspection Procedure

1. Check that the tachometer can operate properly while the engine is idling.

NG: GO TO  COMBINATION METER

OK: Go to next step

1. Disconnect the C8 meter connector.
2. Disconnect the C9 meter connector.
3. Disconnect the A20 airbag sensor connector.
4. Disconnect the P22 master switch connector.

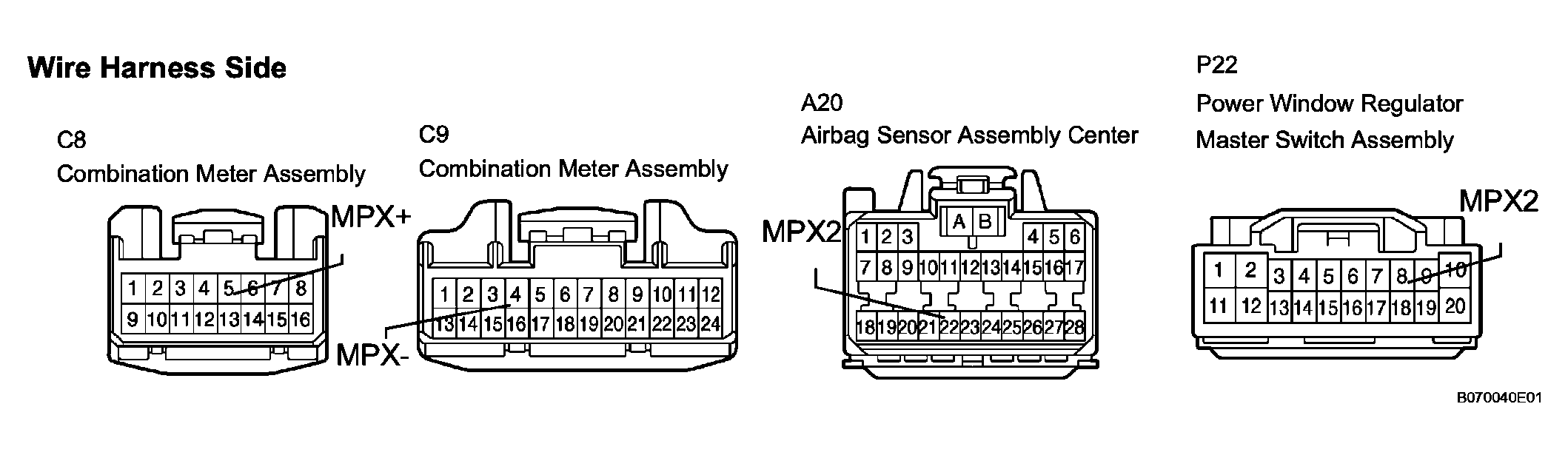

   Fig 1: Identifying C8, C9, A20 And P22 Connector Terminals

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Check the resistance between the wire harness side connectors.

   Resistance

   TESTER CONNECTION SPECIFIED CONDITION CHART



   Tester Connection	Specified Condition
   C8-5 (MPX+) - A20-22 (MPX2)	Below 1 Ω
   C9-4 (MPX-) - P22-8 (MPX2)

NG: REPAIR OR REPLACE HARNESS AND CONNECTOR

OK: REPLACE COMBINATION METER ASSEMBLY
