Inspection Procedure

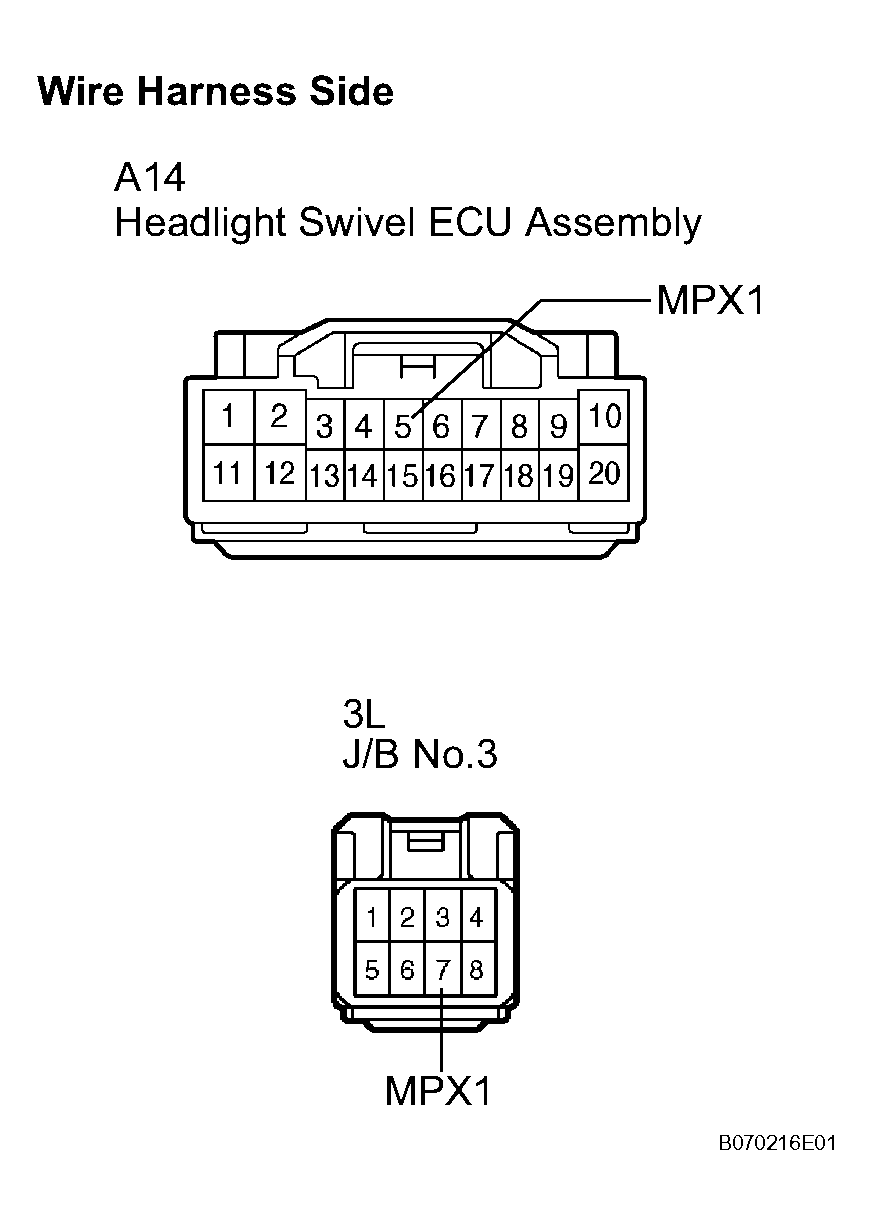

- CHECK RESISTANCE OF COMMUNICATION LINE
- Disconnect the A14 ECU connector.
- Disconnect the 3L J/B connector.
- Check the resistance between the wire harness side connectors.
Resistance
TESTER CONNECTION SPECIFIED CONDITION CHARTTester Connection Specified Condition A14-5 (MPX1) - 3L-7 (MPX1) Below 1 Ω
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
NG: REPAIR OR REPLACE HARNESS AND CONNECTOR
OK: Go to next step

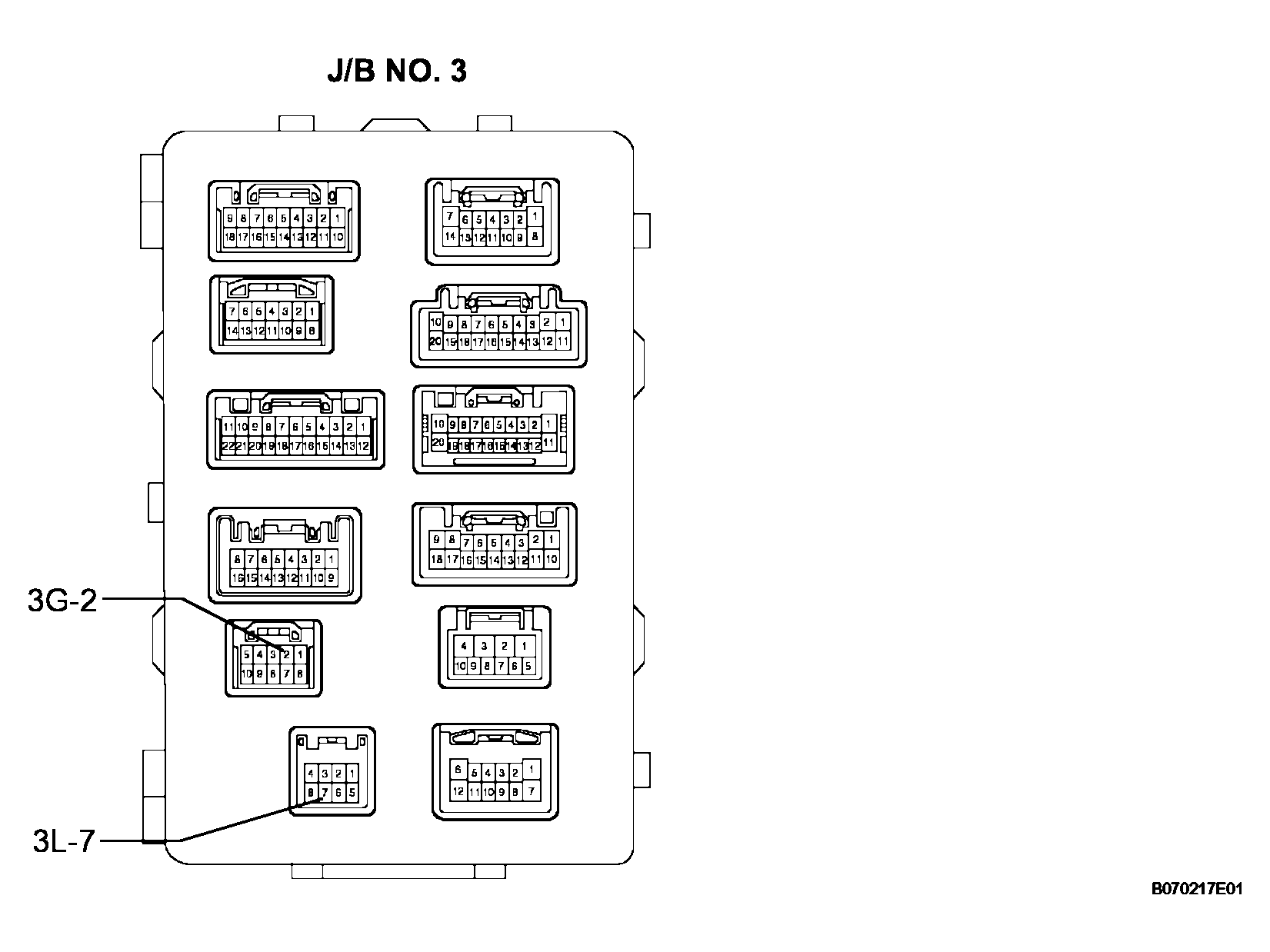

- CHECK J/B NO. 3
- Disconnect the 3L J/B connector.
- Disconnect the 3G J/B connector.
- Check the resistance between the J/B side connectors.
Resistance
TESTER CONNECTION SPECIFIED CONDITION CHARTTester Connection Specified Condition 3L-7 - 3G-2 Below 1 Ω
NG: REPLACE J/B NO. 3
OK: Go to next step
- CHECK HEADLIGHT SWIVEL ECU ASSEMBLY (POWER SOURCE)
- Disconnect the A14 ECU connector.
- Check the voltage between the wire harness side connector and the body ground.
Voltage
TESTER CONNECTION SPECIFIED CONDITION CHARTTester Connection Switch Position Specified Condition A14-12 (IGS) - Body ground Ignition switch ON 10 to 14 V A14-2 (IG) - Body ground
NG: REPAIR OR REPLACE HARNESS AND CONNECTOR
OK: Go to next step

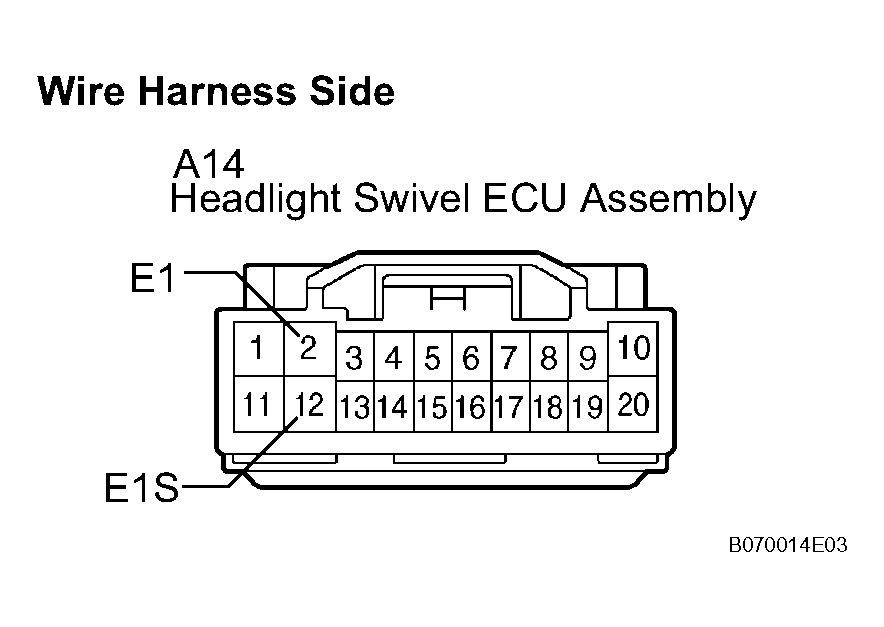

- CHECK HEADLIGHT SWIVEL ECU ASSEMBLY (GROUND)
- Disconnect the A14 ECU connector.
- Check the resistance between the wire harness side connector and the body ground.
Resistance
TESTER CONNECTION SPECIFIED CONDITION CHARTTester Connection Specified Condition A14-11 (E1S) - Body ground Below 1 Ω A14-1 (E1) - Body ground
NG: REPAIR OR REPLACE HARNESS AND CONNECTOR
OK: REPLACE HEADLIGHT SWIVEL ECU ASSEMBLY
