Dynamic Laser Cruise Control System
>>
System Diagram
System Diagram

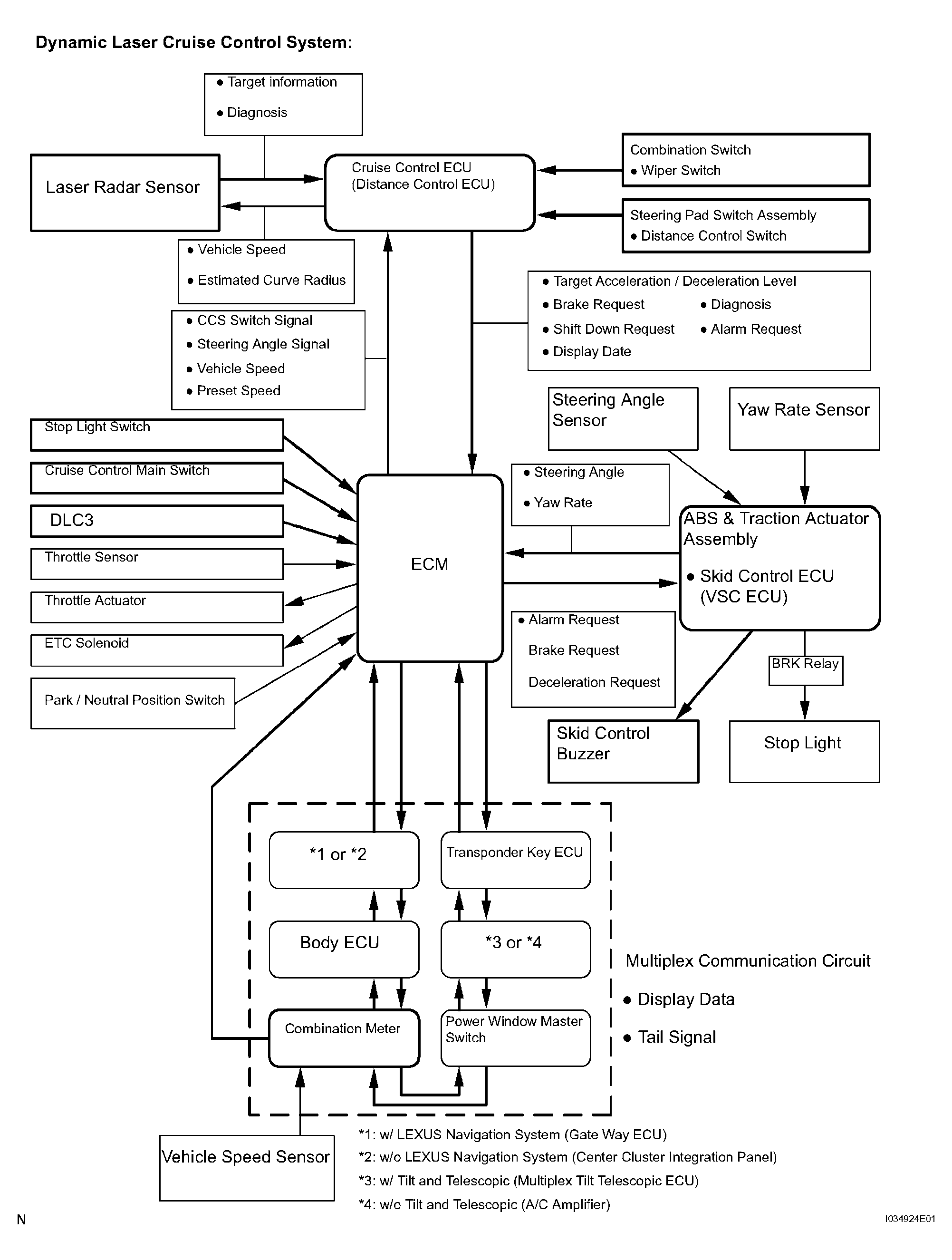

Fig 1: Dynamic Laser Cruise Control System Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
