OEM System Circuits: Starting: Notes

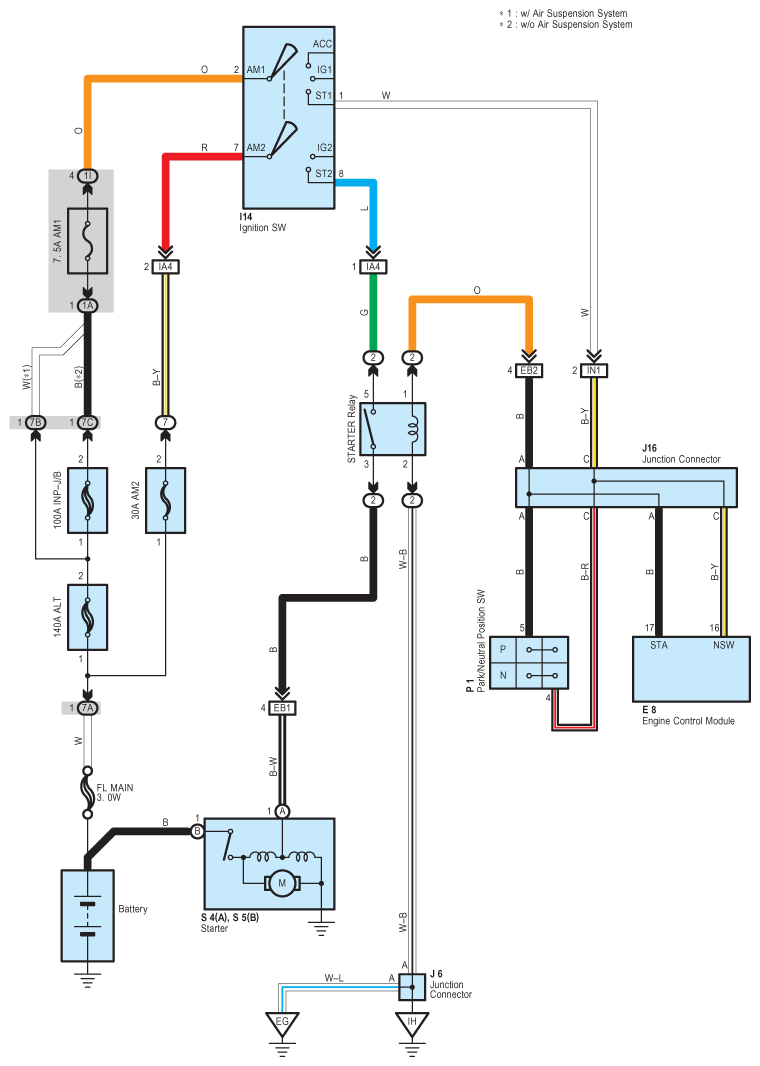

Fig 1: Starting - Wiring Diagram

G08928941

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
