Clutch Drum And Input Shaft Assembly: Components

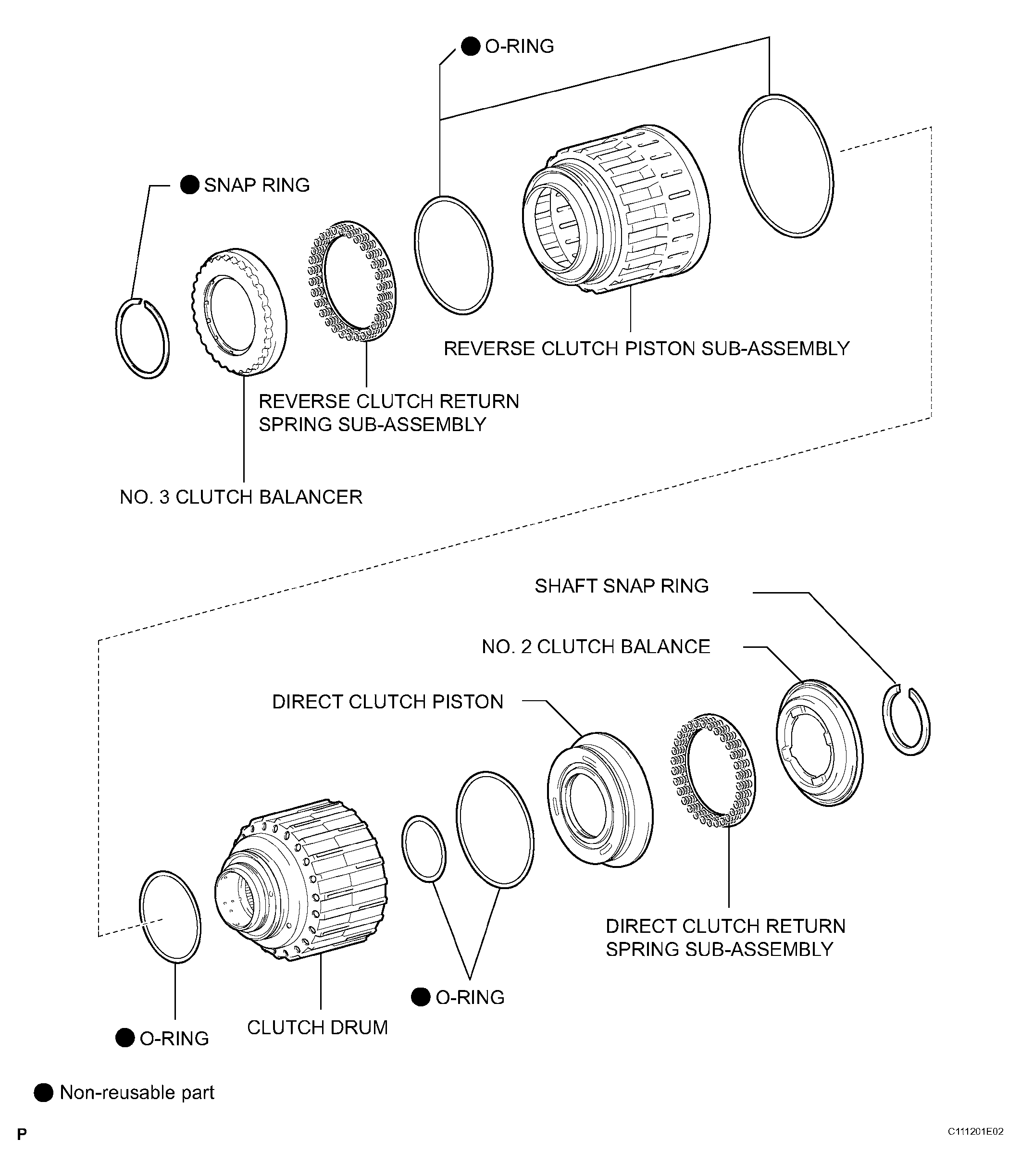

Fig 1: Identifying Clutch Drum And Input Shaft Assembly (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

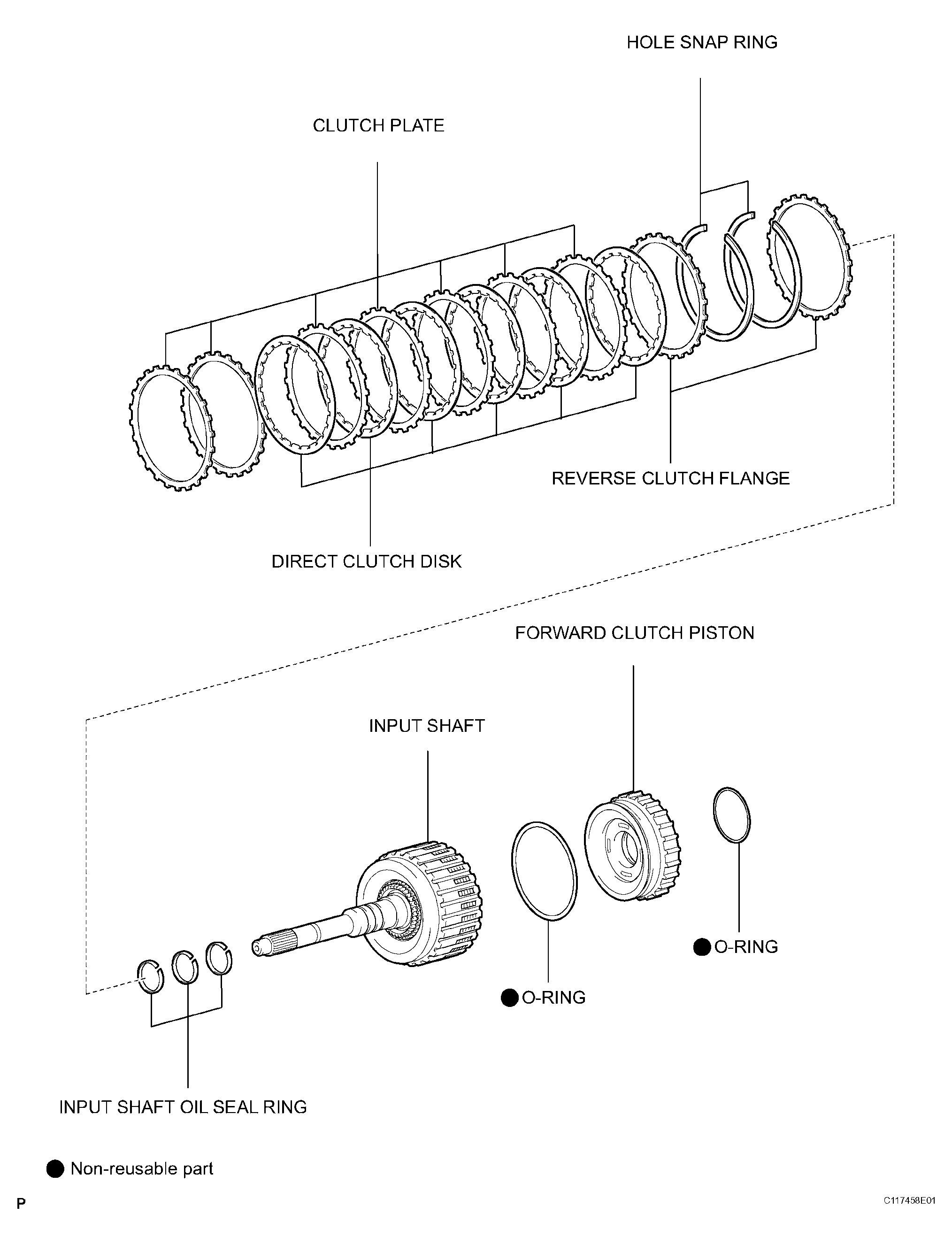

Fig 2: Identifying Clutch Drum And Input Shaft Assembly (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

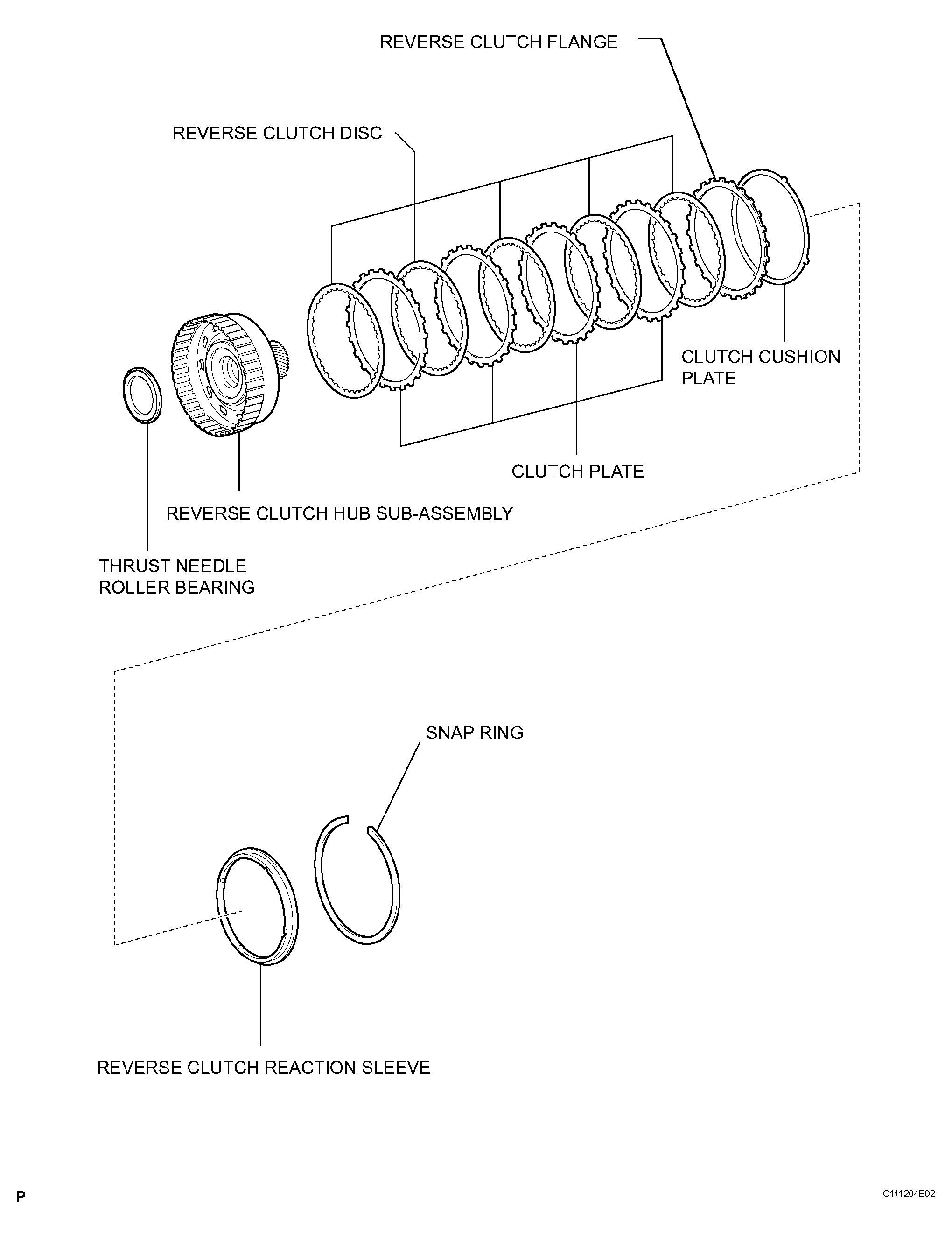

Fig 3: Identifying Clutch Drum And Input Shaft Assembly (3 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

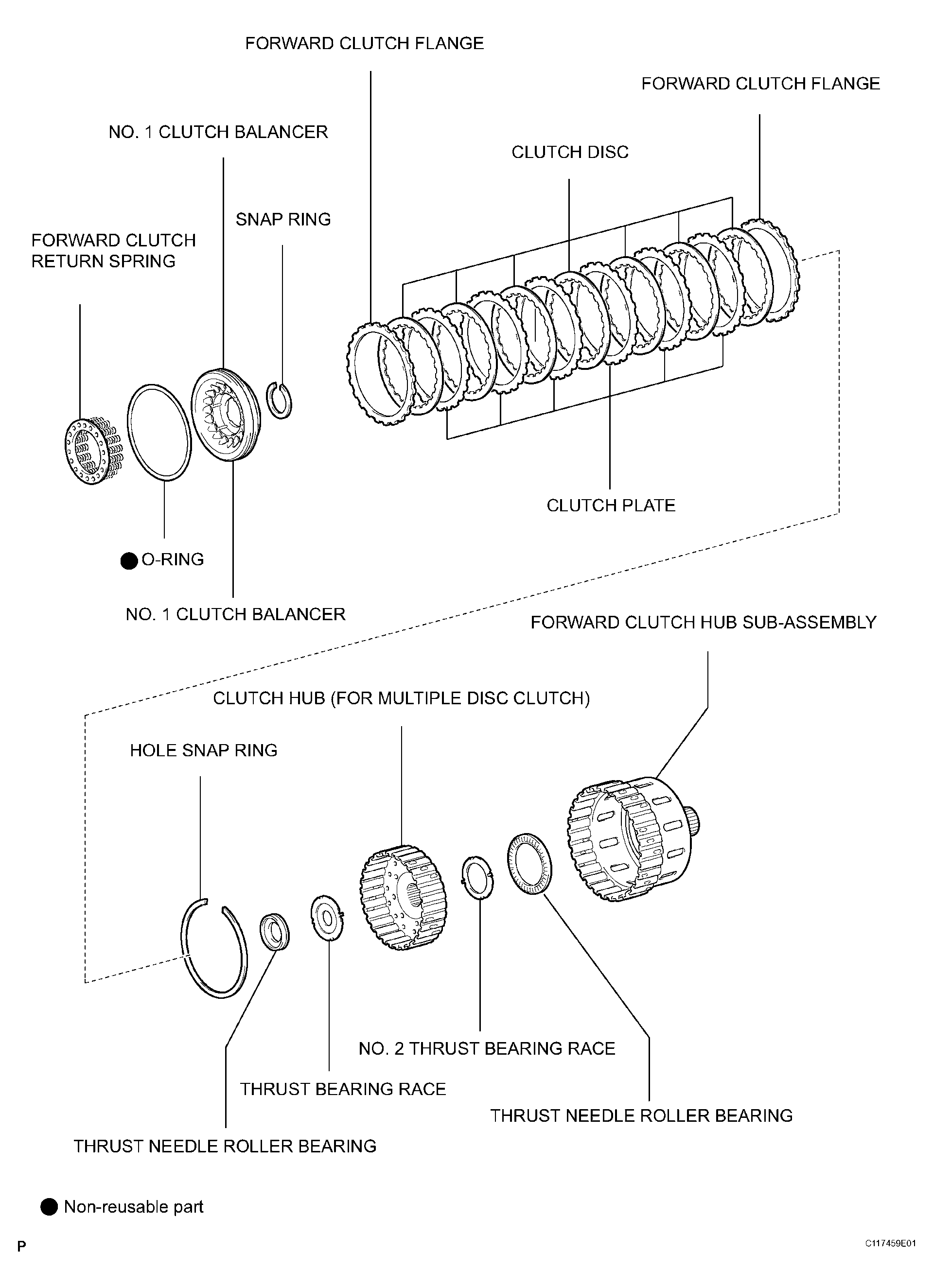

Fig 4: Identifying Clutch Drum And Input Shaft Assembly (4 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
