Rear Seat Inner Belt Assembly: Components

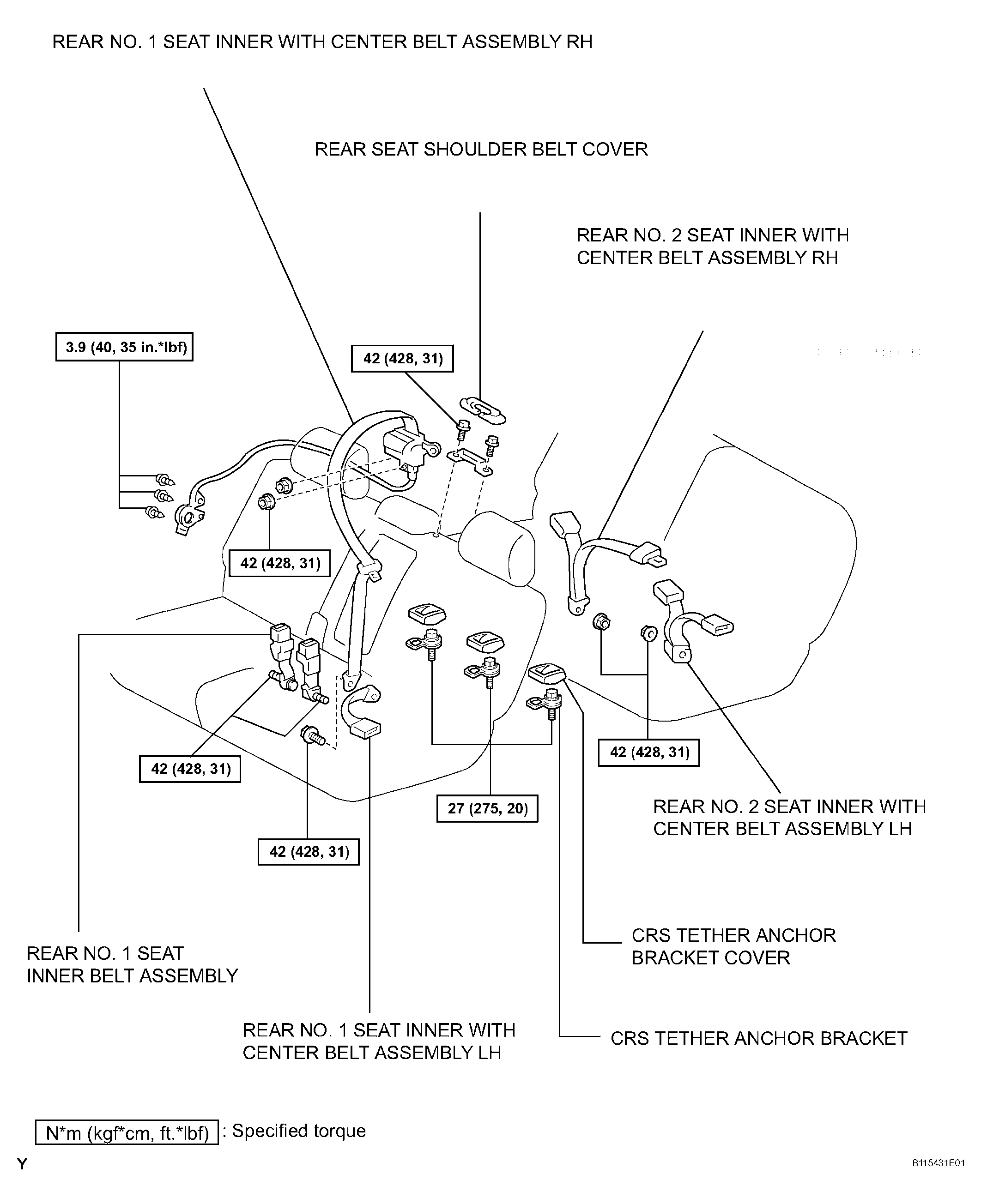

Fig 1: Rear Seat Inner Belt Assembly Replacement Components With Torque Specifications

G04064920

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
