Power Seat for Driver's Seat: Notes

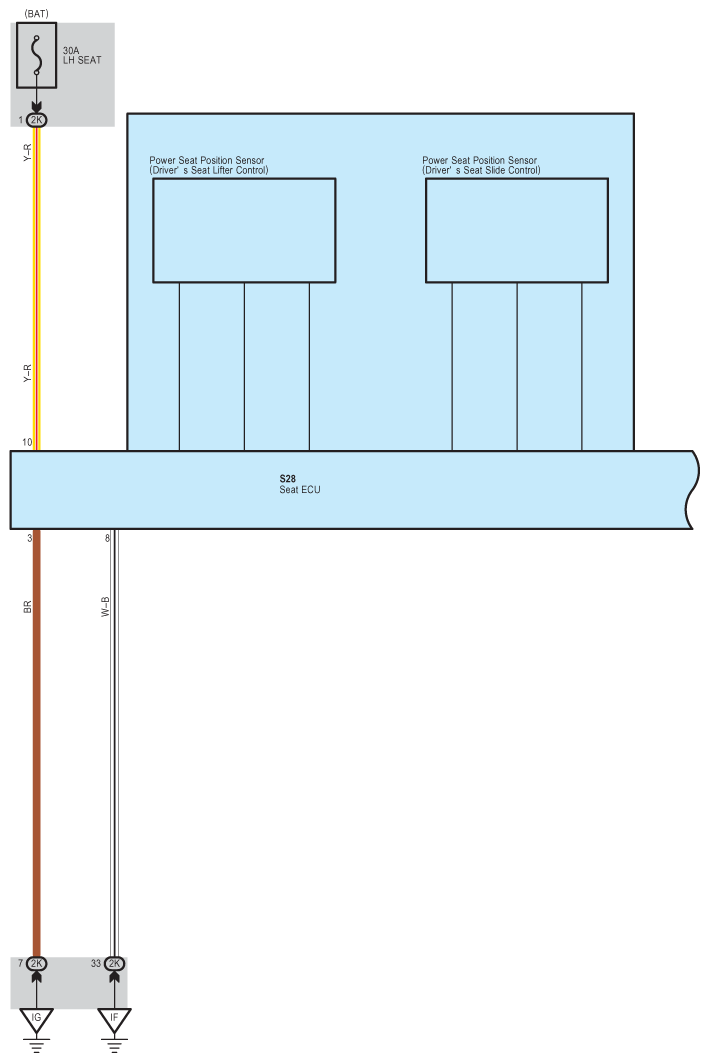

Fig 1: Power Seat For Driver's Seat - Wiring Diagram (1 Of 4)
G08928216Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

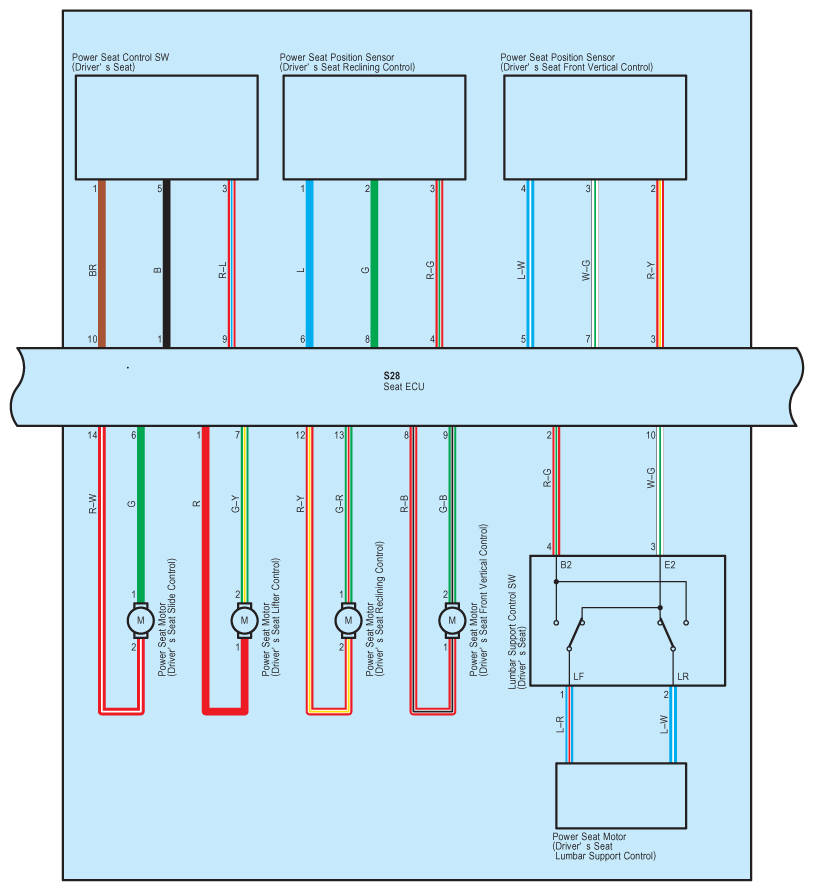

Fig 2: Power Seat For Driver's Seat - Wiring Diagram (2 Of 4)
G08928217Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

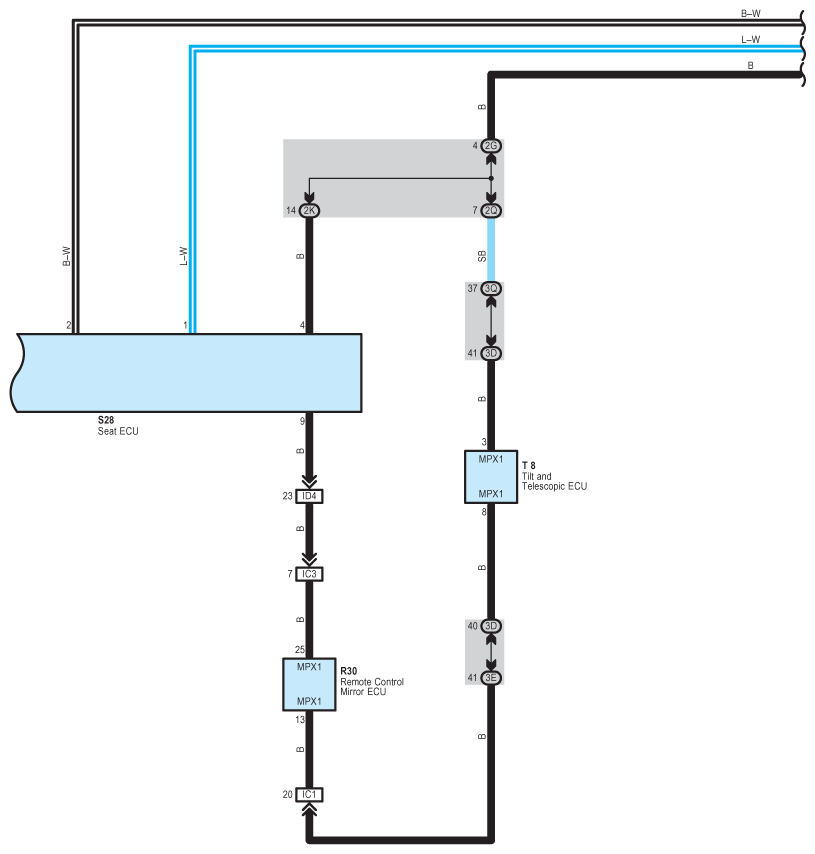

Fig 3: Power Seat For Driver's Seat - Wiring Diagram (3 Of 4)
G08928218Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

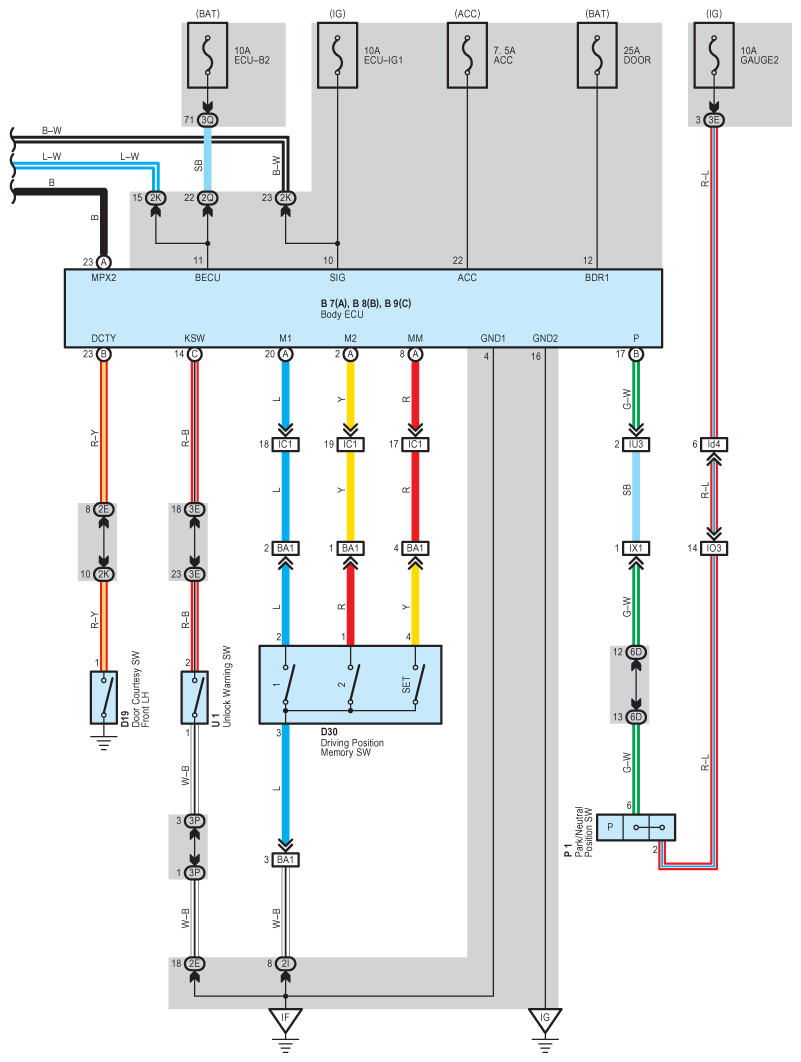

Fig 4: Power Seat For Driver's Seat - Wiring Diagram (4 Of 4)
G08928219Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
