DTC C1552/52 PIG Power Source Circuit: Wiring Diagram

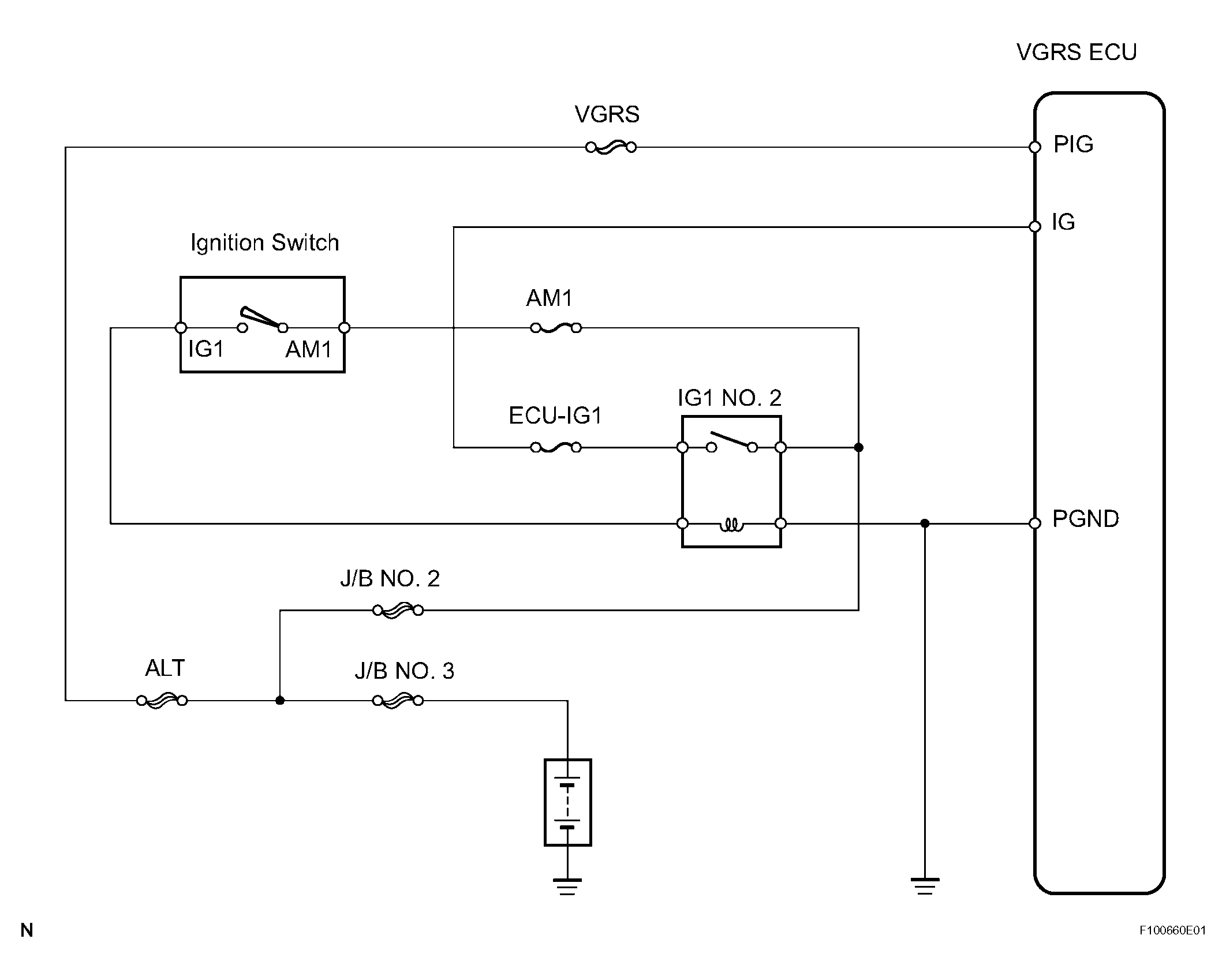

Fig 1: PIG Power Source Circuit - Wiring Diagram
G04064149Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  1. CHECK MOTOR POWER SOURCE VOLTAGE (PIG)
    1. Record and clear VGRS DTCs.
    2. Start the engine and measure the voltage between terminals V10-1 (PIG) and V10-2 (PGND) of the VGRS ECU.

    Result

    RESULT REFERENCE

    Result Proceed to
    9 to 16 V A
    Below 9 V B
    Above 16 V C

    B: CHECK OR REPAIR HARNESS AND VGRS FUSE

    C: CHECK AND REPAIR CHARGING SYSTEM

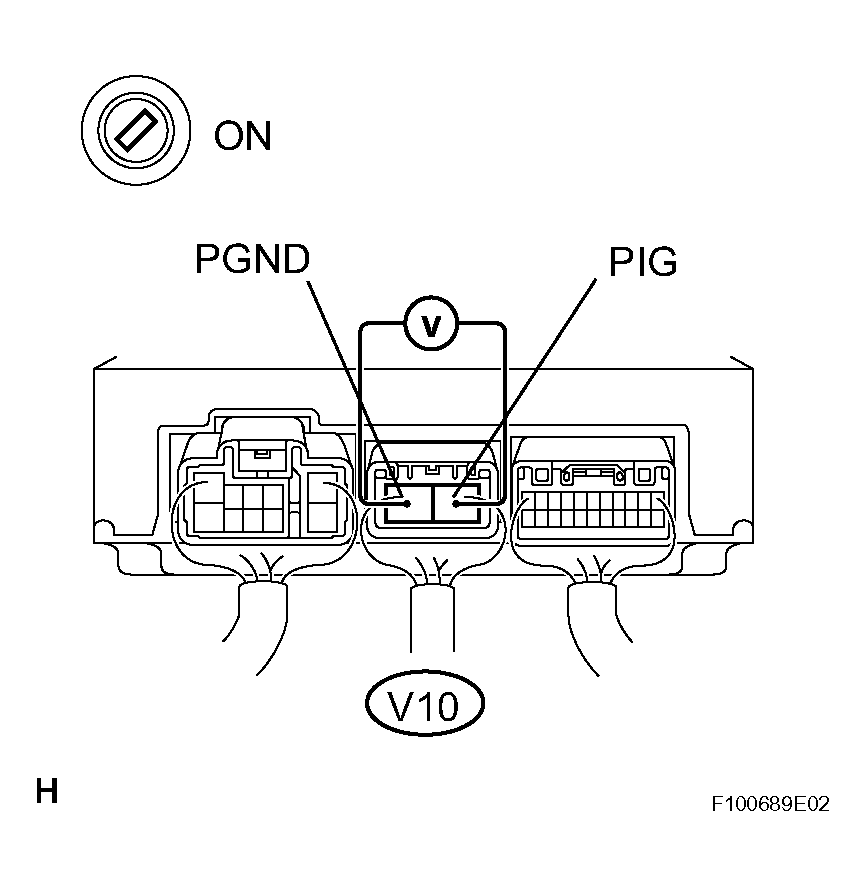

    Fig 2: Measuring Voltage Between Terminals V10-1 (PIG) And V10-2 (PGND) Of VGRS ECU
    G04064150Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    A: Go to next step

  2. CHECK VGRS FOR DTC C1552/52
    1. Is DTC C1552/52 present?
    NOTE: Fault may be intermittent. Check harness and connectors carefully and retest.

    YES: REPLACE VGRS ECU

    NO

    NO FAULT DETECTED
